LLURIA BN9.6 Water Resistant LED Strip
Feature
Flex LED strip ideal for signaling or decorative installations. Excellent uniformity due to the little separation between the LEDs. For indoor and outdoor use.
| Reference | CCT | Lumens /m | Lumens /W | Energy efficiency |
| BN9,6-23 |  2300K | 643 | 67 | G |
| BN9,6-27 |  2700K | 724 | 75 | G |
| BN9,6-30 |  3000K | 738 | 77 | G |
| BN9,6-40 |  4000K | 815 | 85 | G |
| BN9,6-60 |  6000K | 838 | 87 | G |
Technical data
| Technical data | |
| Power | 9,6W/m |
| Roll power 5m | 48W |
| IP | 65 |
| CRI | >80 |
| R9 | >10 |
| Voltage | 24V |
| LED type | 2835 |
| LEDs/m | 120 |
| Pitch | 8,3mm |
| Beam angle | 120º |
| Min. cutting lenght | 50mm |
| Longitud rollo Roll length | 5m/30m |
| Life time | 50.000h |
| Ambient temperature | -20~50ºC |
| Storage temperature | -40~80ºC |
| Tc point mark | Sí Yes (1) |
| Warranty years | 3 |
| Dimmable | Sí Yes |
| Needs heatsink | Sí Yes |
| Max. lenght | 20m (2) |
| (1) (UNE-EN 60598-1:2015; UNE- 60598-2-1:1993) | |
| (2) Connected in series |
Medidas

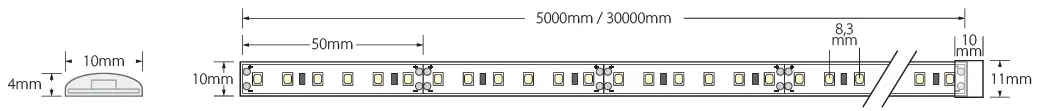

Dimensions

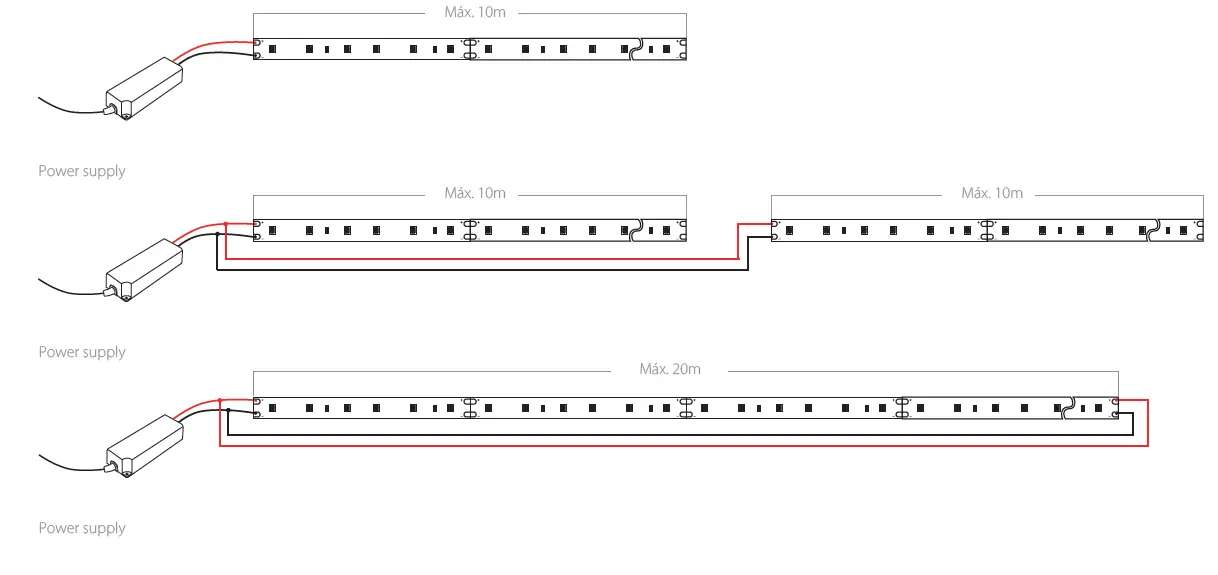

Respect the maximum lengths to avoid drops in voltage and variations in light intensity
Cable section
CABLE
- Distance ≤ 5m < 15m < 25m

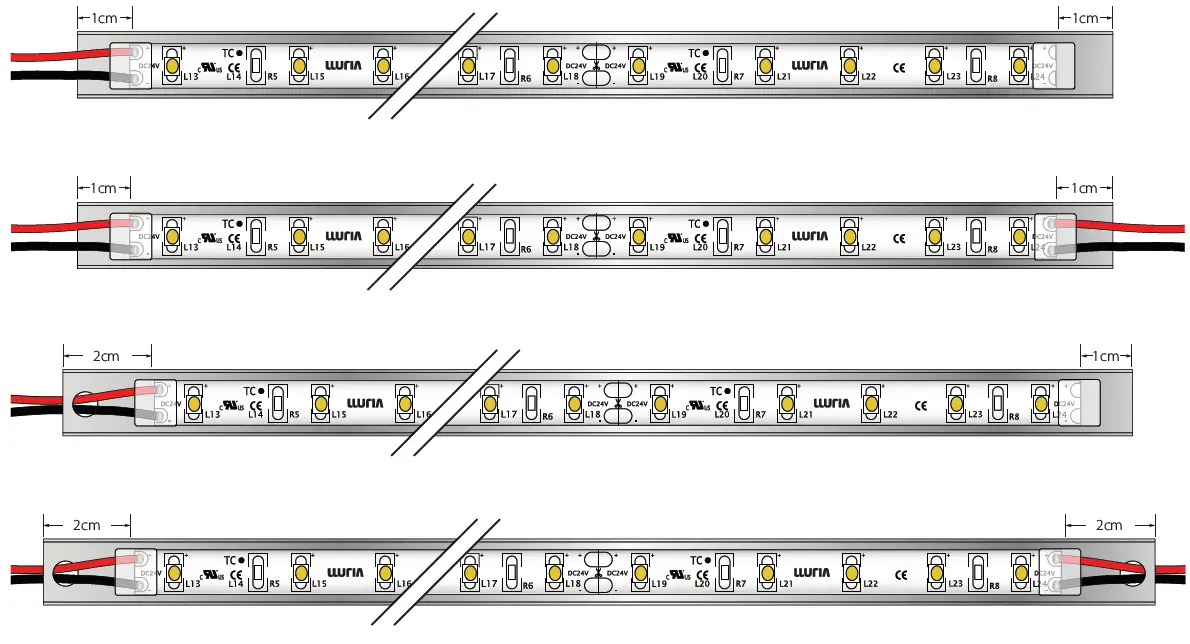

Distance LED – Profile
Minimum distance that should be left at the ends, both sides, between LED strip and profile

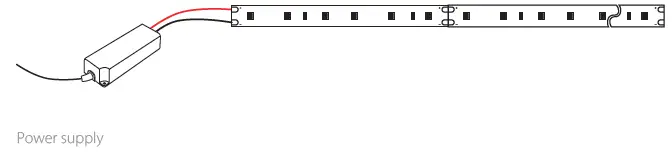

Assembly detail
Do not bend de LED strip to adapt them to sharp radius or angle, cut for the cut mark and weld a section of cable to make the turn
Lifetime
The lifetime of our LEDs is 50.000h at an ambient temperature of 23ºC and provided with a heat dissipation system. Off cycles are recommended to extend the life of the LEDs
Warnings
- To ensure the life of the LED, it is requested to place it on a surface that dissipates the heat they generate.
- Caution when handling cables to avoid damage to the welds.
- The voltage surges can cause damage.
- If diffuser is used with the dissipating profile, there may be variations in the color temperature.
