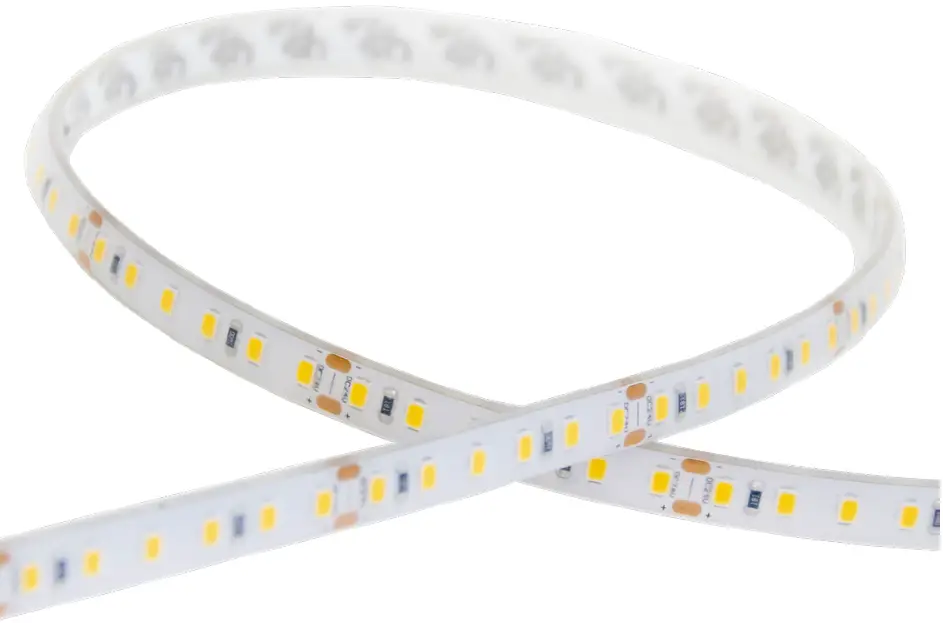

LLURIA CN9.6 Water Resistant IP65 LED Strip User Guide
Flex LED strip with great light quality.
Ideal for all types of installations, general and accent lighting. Excellent uniformity due to the little separation between the LEDs.
For indoor and outdoor use.
| Reference | CCT | Lumens/m | Lumens/W | Energy efficiency |
| CN9,6-23 |  2300K | 680 | 71 | G |
| CN9,6-27 |  2700K | 762 | 79 | G |
| CN9,6-30 |  3000K | 777 | 81 | G |
| CN9,6-40 |  4000K | 858 | 89 | G |
| CN9,6-60 |  6000K | 882 | 92 | G |
Technical data
| Technical data | |
| Power | 9,6W/m |
| Roll power 5m | 48W |
| IP | 65 |
| CRI | >90 |
| R9 | >60 |
| Voltage | 24V |
| LED type | 2835 |
| LEDs/m | 120 |
| Pitch | 8,3mm |
| Beam angle | 120º |
| Min. cutting lenght | 50mm |
| Roll length | 5m/30m |
| Life time | 50.000h |
| Ambient temperature | -20~50ºC |
| Storage temperature | -40~80ºC |
| Tc point mark | Sí Yes (1) |
| Warranty years | 8 |
| Dimmable | Sí Yes |
| Needs heatsink | Sí Yes |
| Max. lenght | 10m (2) |
| (1) (UNE-EN 60598-1:2015; UNE-EN 60598-2-1:1993) | |

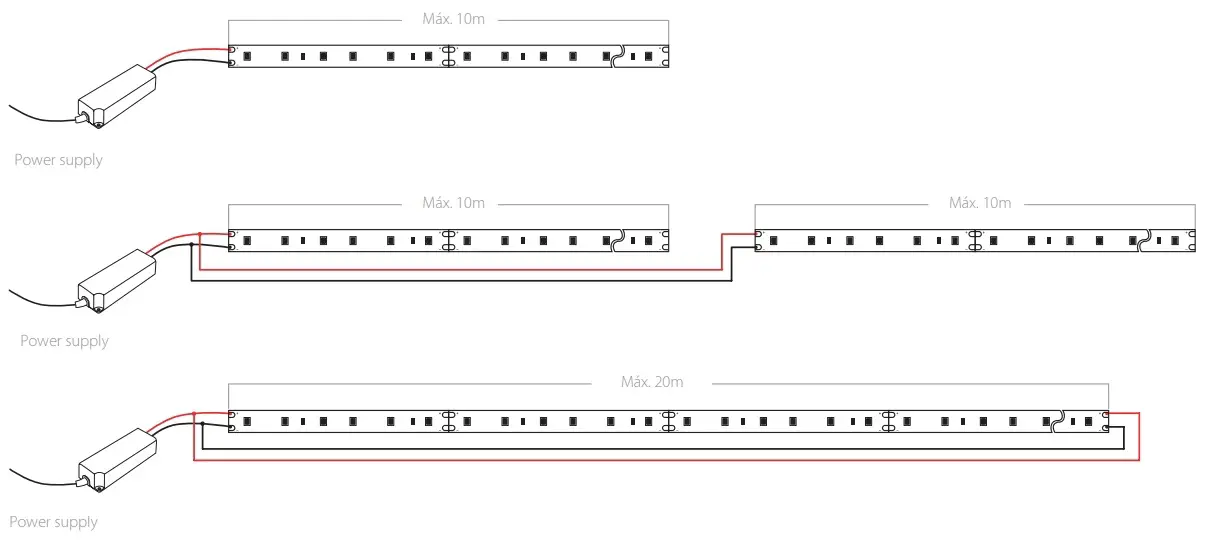

| Connected in series |

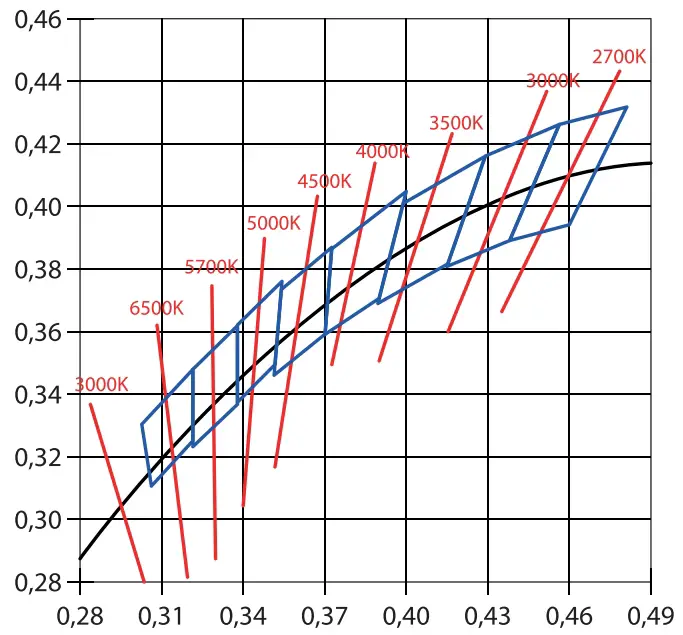

3 MacAdam steps

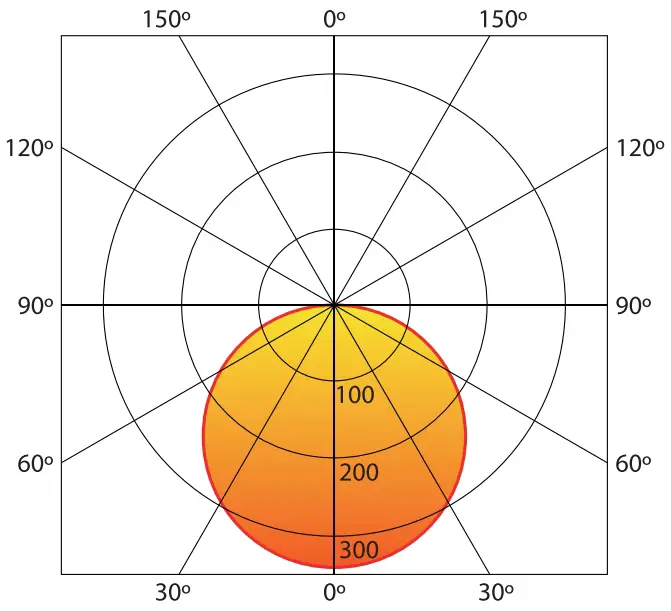

CDL

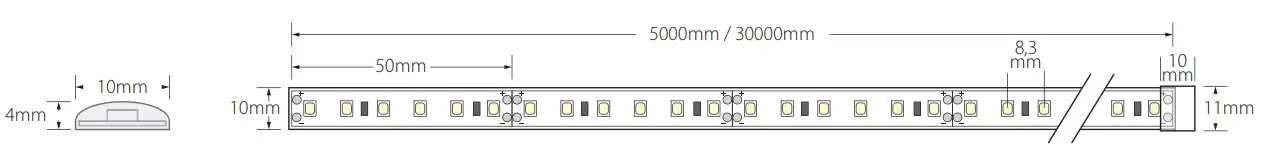

Dimensions
Circuit diagram
Respect the maximum lengths to avoid drops voltage and variations in light intensity.
Cable section
Cable | |||
| Distance | ≤ 5m | < 15m | < 25m |
| Section | 0,50mm2 | 1,5mm2 | 2,5mm2 |

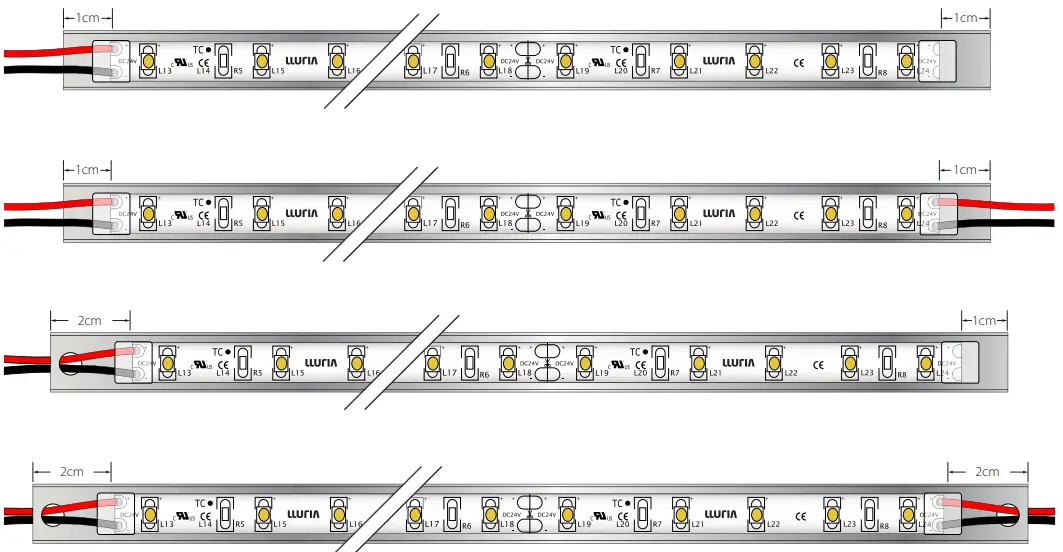

Distance LED – Profile
Minimum distance that should be left at the ends, both sides, between LED strip and profile.
Assembly detail
Do not bend de LED strip to adapt them to sharp radius or angle, cut for the cut mark and weld a section of cable to make the turn.
Life time
The life time of our LEDs is 50.000h at an ambient temperature of 23ºC and provided with a heat dissipation system. Off cycles are recommended to extend the life of the LEDs.
Warnings
To ensure the life of the LED, it is request to place on a surface that dissipates the heat they generate.
- Caution when handling cables to avoid damage to the welds.
- The voltage surges can cause damage.
- If diffuser is used with the dissipating profile, there may be variations in the color temperature.
Symbols
