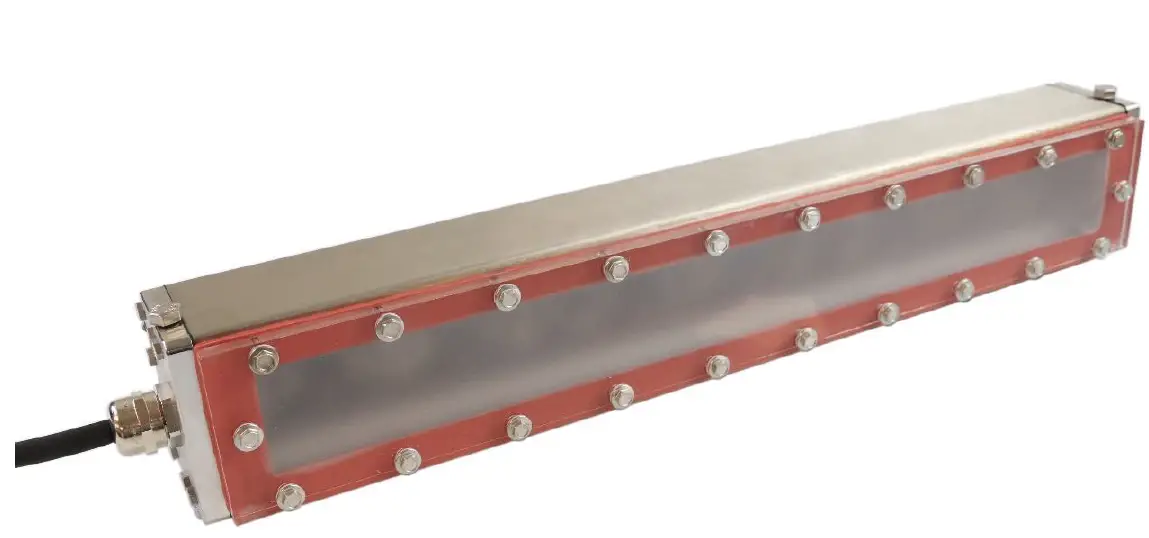

effilex IP69K Waterproof High Power LED Bar
User security
- IP69K Classification: protected against high-pressure and high-temperature cleaning from any direction
- Do not try to open the product. Any opening of the product can result in a sealing failure
- Operating environment: 0 to 40°C – Humidity: 20 to 85RH% (without condensation)
- High humidity and high temperature could damage the device
- Do never try to fix any damages to the product by yourself
- Make sure you are using a correct power supply before connecting the device
- The device must be powered by a 24V safety power supply in accordance to local Electrical Safety rules
- Do not inverse electrical polarity – check the conventions before turning on the power supply
- Make sure you consider an adapted connector to link the device to the power supply
Any improper use voids the warranty
Reference
| EFFI-FLEX-IP69K | -WW | -XXX | -YY | -ZZ | -V | -AA | -… | |||||||||||||
| Number of LED | Wavelength (nm) | Window | Lens position | Vent | Cable Length | Option | ||||||||||||||
| 5 | 405 | TR (Transparent) | P0 (no lens – 75°) | V (vent) | L5 (5m) | LS (linescan) | ||||||||||||||
| 10 | 465 | SD (Semi-diffusive) | P1 (45°) | Ø (no vent) | L10 (10m) | POL (polarizer) | ||||||||||||||
| … | 525 | OP (Opaline) | P2 (25°) | ELS-(IN)-350-UUU | ||||||||||||||||
| Every 5 | 625 | P3 (10°) | (UUU=DIM max) | |||||||||||||||||
| to 145 | 850 | |||||||||||||||||||
| 000 (White) | ||||||||||||||||||||
| EFFI-FLEX-IP69K-FOOD(1) | -WW | -XXX | -YY | -ZZ | -V | -AA | -… | |||||||||||||
| Number of LED | Wavelength (nm) | Window | Lens position | Vent | Cable Length | Option | ||||||||||||||
| 5 | 405 | TR (Transparent) | P0 (no lens – 75°) | V (vent) | L5 (5m) | LS (linescan) | ||||||||||||||
| 10 | 465 | SD (Semi-diffusive) | P1 (45°) | Ø (no vent) | L10 (10m) | POL (polarizer) | ||||||||||||||
| … | 525 | OP (Opaline) | P2 (25°) | ELS-(IN)-350-UUU | ||||||||||||||||
| Every 5 | 625 | P3 (10°) | (UUU=DIM max) | |||||||||||||||||
| to 145 | 850 | |||||||||||||||||||
| 000 (White) | ||||||||||||||||||||
Maintenance
Regardless of maintenance, the product must be switched off. To remove marks on the window, apply just one or two drops of alcohol-free lens cleaning fluid in a gentle circular motion with a cleaning tissue. Always apply the fluid to a tissue rather than the window itself.
Electronical consideration
The EFFI-FLEX-IP69K is supplied with a 24V constant voltage. The TRIG (or AIC) contact needs to be connected. Please make sure that the flying leads output of the cable is in a sealed area.
| Standard version cable: Weather, bio oil, detergent and hot water resistant cable. Core insulation made of modified PP / Outer sheath made of special TPE / Sheath colour: black | ||
| Conductor N° | EFFI-FLEX-IP69K | |
| 1 (Brown(2)) | Flying Leads (standard version)
OR
M12 – 5 pins (-FOOD version)
| +24V |
| 2 (White(2)) | N/A | |
| 3 (Blue(2)) | GND | |

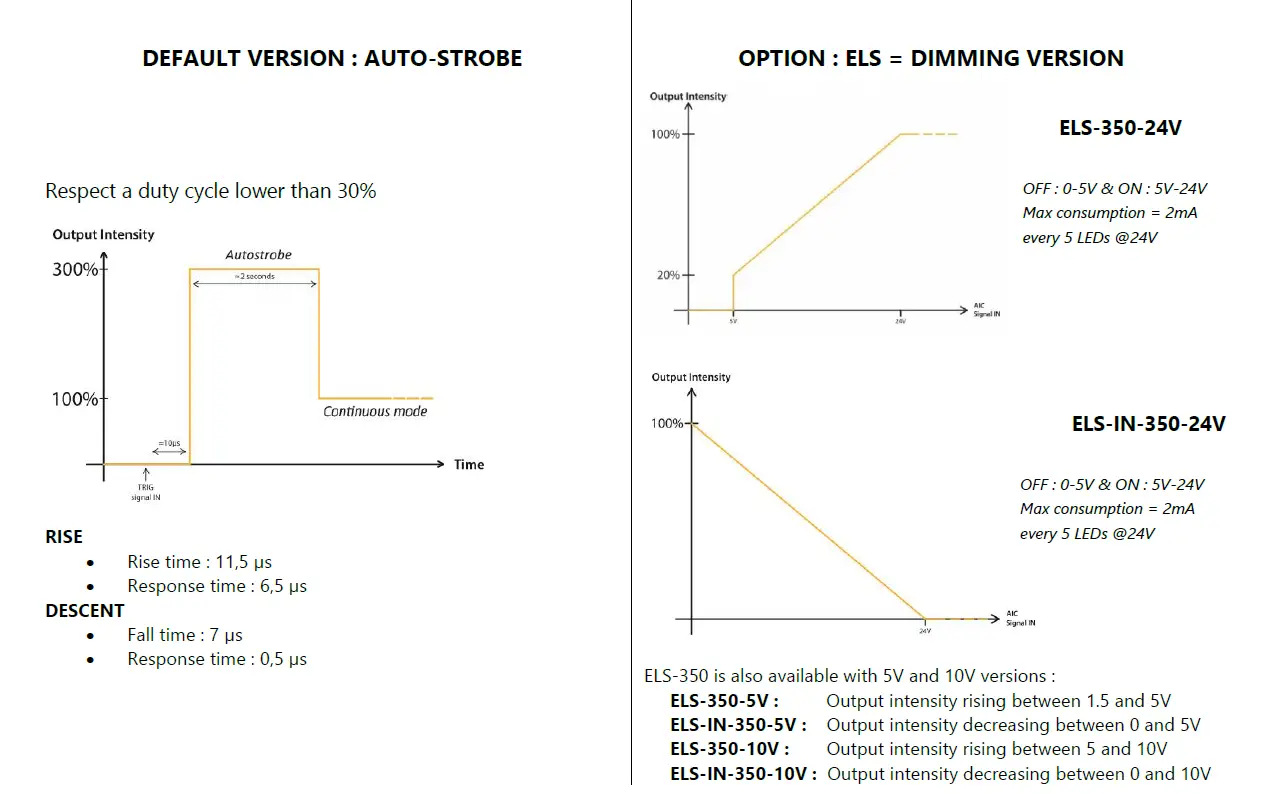

| 4 (Black(2)) | PNP TRIGGER(1) for Auto-strobe Light ON if VPNP > 5V DC Max 24V DC – Analog Voltage | |
| 5 (Green/Yellow(2)) | N/A | |
- Or AIC : Analog Intensity Control for Dimming Control
- Color of the cable fo the -FOOD version
| Power supply for EFFI-FLEX-IP69K (for 2m cable) | |||
| Amount of LED (N) | Standard version | ELS 350mA | |
| PPeak_2s | PCW | ||
| 5 | 20 | 10 | 10 |
| 10 | 40 | 15 | 15 |
| 15 | 60 | 20 | 20 |
| 20 | 80 | 30 | 30 |
| 50 | 190 | 65 | 65 |
| 100 | 380 | 130 | 130 |
| 150 | 570 | 195 | 195 |
- ELS-350-5V : Output intensity rising between 1.5 and 5V
- ELS-IN-350-5V : Output intensity decreasing between 0 and 5V
- ELS-350-10V : Output intensity rising between 5 and 10V
- ELS-IN-350-10V : Output intensity decreasing between 0 and 10V
Mechanical consideration

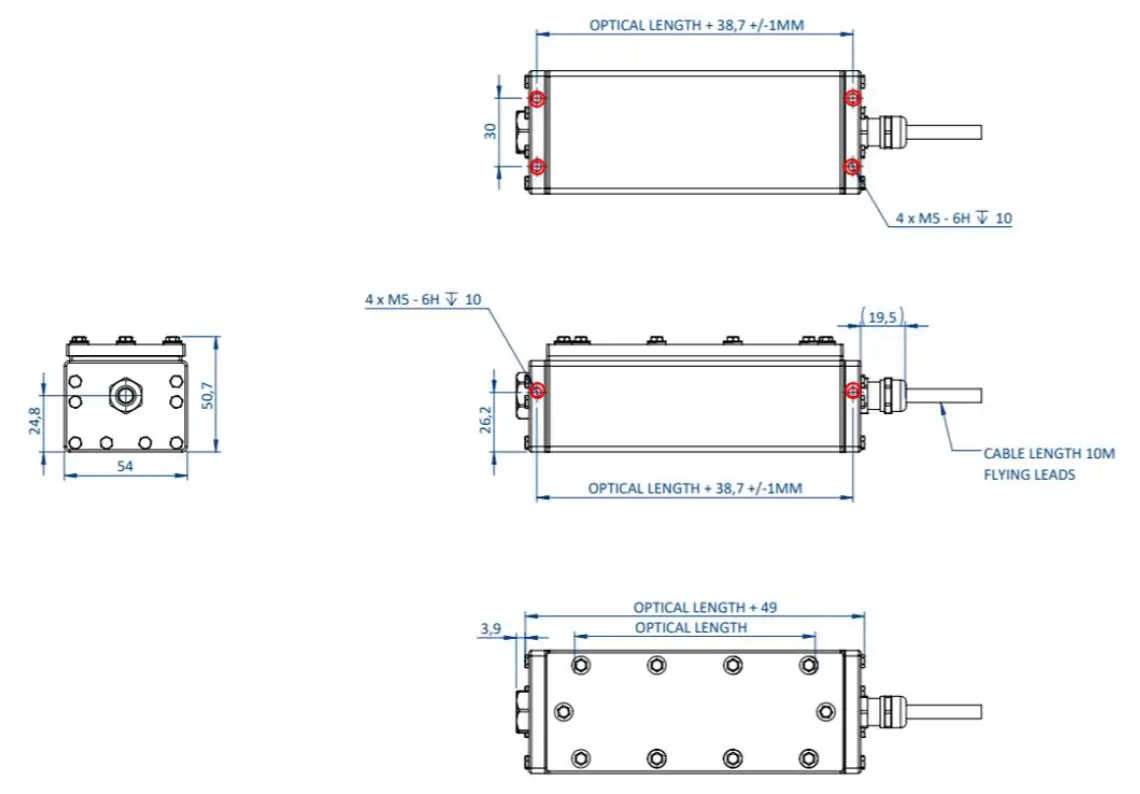

| Optical Length | Lop = [20 x N] if N LED |
| Optical Length (for L2 Version) | Lop = [40 x N] if N LED |
| Mechanical Length | Lmecha = Lop + 49mm |
To avoid water retention, stainless steel screws have to fill in the gaps (x8)
