Rose Lighting 12V400W LED Waterproof Power Supply
LED Waterproof Power Supply (C&V)
- Protections: short circuit/overload/over voltage/over temperature
- IP67 design for indoor or outdoor installation
- It can be used in dry, wet and rainy environments
- Cooling by free air, high reliability
- 100% full load burn-in test
- Suitable for internal lights application for I /I/I
- Widely used in LED lighting and IT equipment
- Compliance with worldwide safety regulations for led lighting.
Specification
| 12V400W | 24V400W | ||
|
| Output voltage | 12VDC | 24VDC |
| Output voltage range | 12VDC±0.5VDC | 24VDC±0.5VDC | |
| Output сurrent | Max 33.4A | Max 16.7A | |
| Output power | Max 400W | ||
| Output power range | 0~400W | ||
| Ripple & Noise | ≤120mV | ≤240mV | |
| Linear Regulation | ±1% | ||
| Load Regulation | ±1% | ||
| Start-up Time (Typ) | 450ms/230VAC 500ms/115VAC | ||
| Hold Up Time(Typ) | 200ms/230VAC 200ms/115VAC | ||
|
| Input voltage | 175-264Vac or 100-130Vac | |
| Frequency | 50/60Hz | ||
| Input сurrent | 3.3A/230Vac or 5.8A/115Vac | ||
| Power factor | PF>0.6 | ||
| No-load power consumption | ＜3W | ||
| Efficiency (typ.) | 91% | 90% | |
| Inrush current(typ.) | Cold start 70A at 230Vac | ||
| Control surge capability | L,N:2KV L,N-PE:4KV | ||
| Leakage сurrent | Max. 0.5mA | ||
| Working temperature | ta: -30°C~ 50°C tc: 80°C | ||
| Working humidity | 20 ~ 99%RH, condensing(Waterproof) | ||
| Storage temp., humidity | -40°C ~ 80°C, 10~95%RH | ||
| Overtemperature | Protection type: Turn off the output voltage, after the temperature drops, re-energize to restore. | ||
| Over load protection | Shut down the output when current load ≥110%~150%, auto recovers. | ||
| Short circuit protection | Protection type: It can be automatically restored after the fault is eliminated. | ||
|
| Withstand voltage | I/P-O/P:3750Vac | |
| Isolation resistance | I/P-O/P: 100MΩ/500VDC/25°C/70%RH | ||
| Safety standards | IEC/EN61347;IEC/EN60950;IP67 | ||
| EMC Test Standards | EN55015: 2013;EN61547: 2009; EN61000-3-2:2014; EN61000-3-3:2013 | ||
| Reliability and Quality Control | Impact aging | 100% of the product is fully loaded and impacted for 4 hours under an environment of at least 40°C±5°C | |
| Component derating | Under the steady-state conditions of rated input and output, the stress of components will not exceed its maximum nominal value | ||
|
NOTE | 1. All parameters not specifically mentioned are measured at 230VAC input, rated load and 25°C ambient temperature. 2. Ripple and noise test method: connect 0.1uF and 47uF capacitors in parallel at the terminal, and measure under 20MHZ bandwidth. 3. Ensure that the power supply is used under the rated parameters and environment. | ||

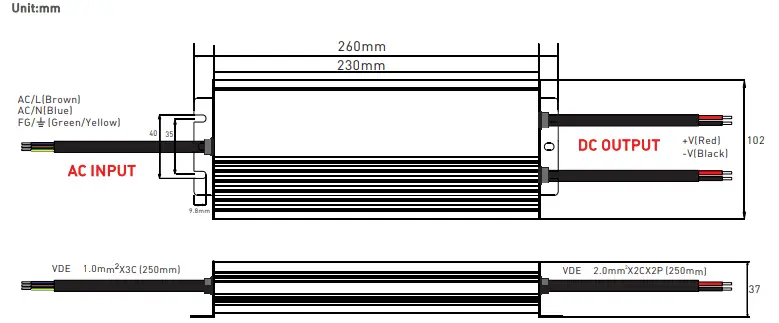

Dimensions

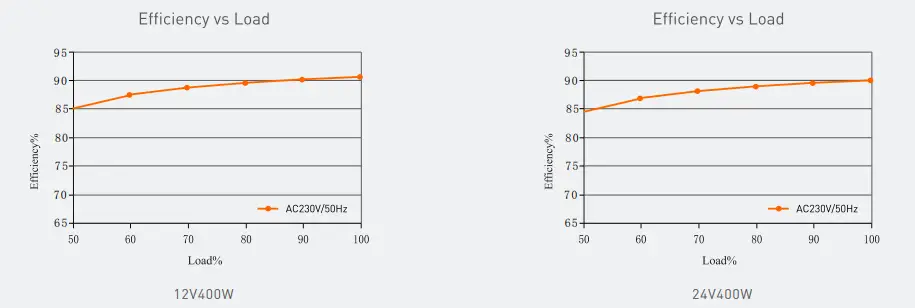

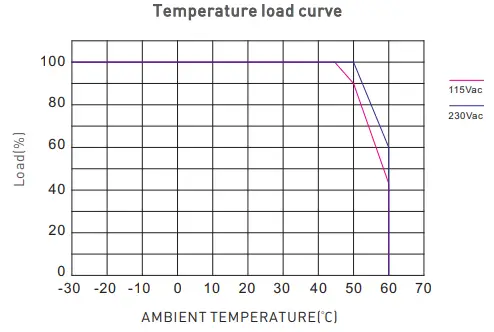

Relationship diagrams
Packaging Information
| DIMENSION | 260x102x37mm(LxWxH) |
| PACKING | 305x122x52mm(LxWxH) |
| CARTON QUANTITY | 10PCS |
| CARTON SIZE | 565x320x145mm(LxWxH) |
| WEIGHT | 1750g±10g/PCS |
No further notice if any changes in the manual. Product function depends on the goods. Please feel free to contact your supplier if any questions.
