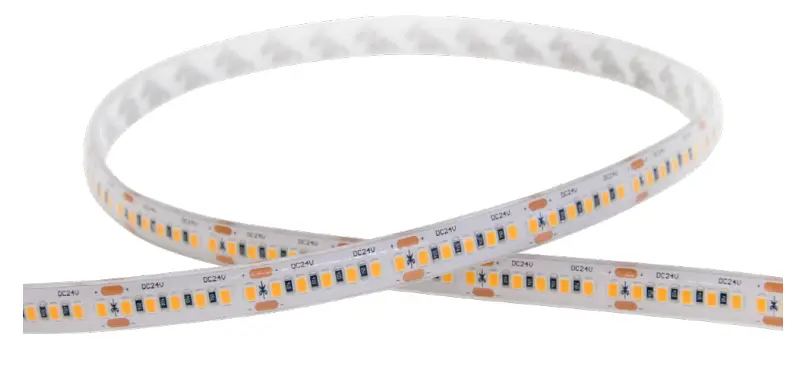

Tira de LED LED strip
Water Resistant IP65
Comet New 13,9W/m
CN13,9
Flex LED strip with high light quality.
Ideal for all types of installations, general and accent lighting.
Excellent uniformity due to the little separation between the LEDs.
For indoor and outdoor use.
| Reference | CCT | Lumens/m | Lumens/W | Energy efficiency |
| CN13,9-23 |  2300K | 1000 | 72 | G |
| CN13,9-27 |  2700K | 1156 | 83 | G |
| CN13,9-30 |  3000K | 1293 | 93 | F |
| CN13,9-40 |  4000K | 1308 | 94 | F |
| CN13,9-60 |  6000K | 1365 | 98 | F |
Technical data
| Power | 13,9W/m |
| Roll power 5m | 69,5W |
| IP | 65 |
| CRI | >90 |
| R9 | >60 |
| Voltage | 24V |
| LED type | 2835 |
| LEDs/m | 180 |
| Pitch | 5,6mm |

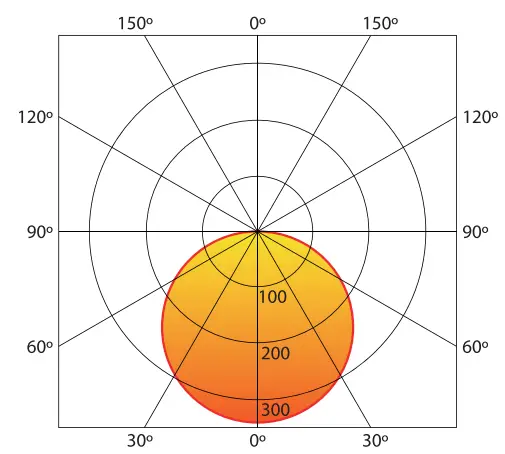

| Beam angle | 120º |
| Min. cutting length | 33,3mm |
| Roll length | 5m/30m |
| Lifetime | 50.000h |
| Ambient temperature | -20~50ºC |
| Storage temperature | -40~80ºC |
| Tc point mark | Yes |
| Warranty years | 8 |
| Dimmable | Yes |
| Needs heatsink | Yes |
| Max. length | 20m |

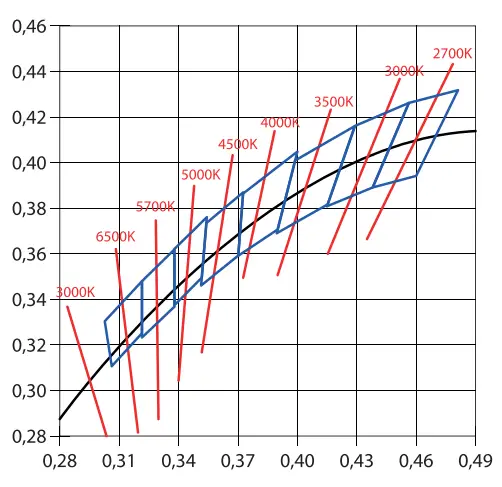

| 3 MacAdam steps | CDL |
 |  |
Comet New 13,9W/m

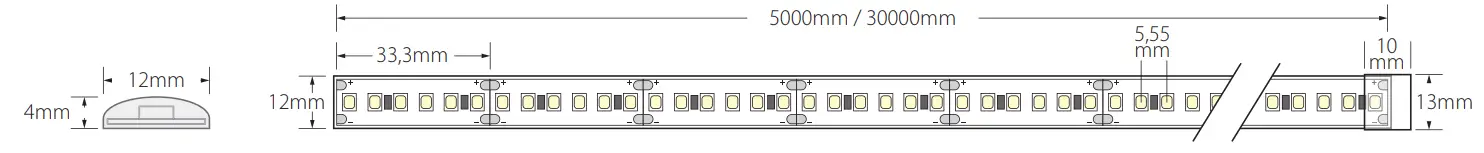

Dimensions

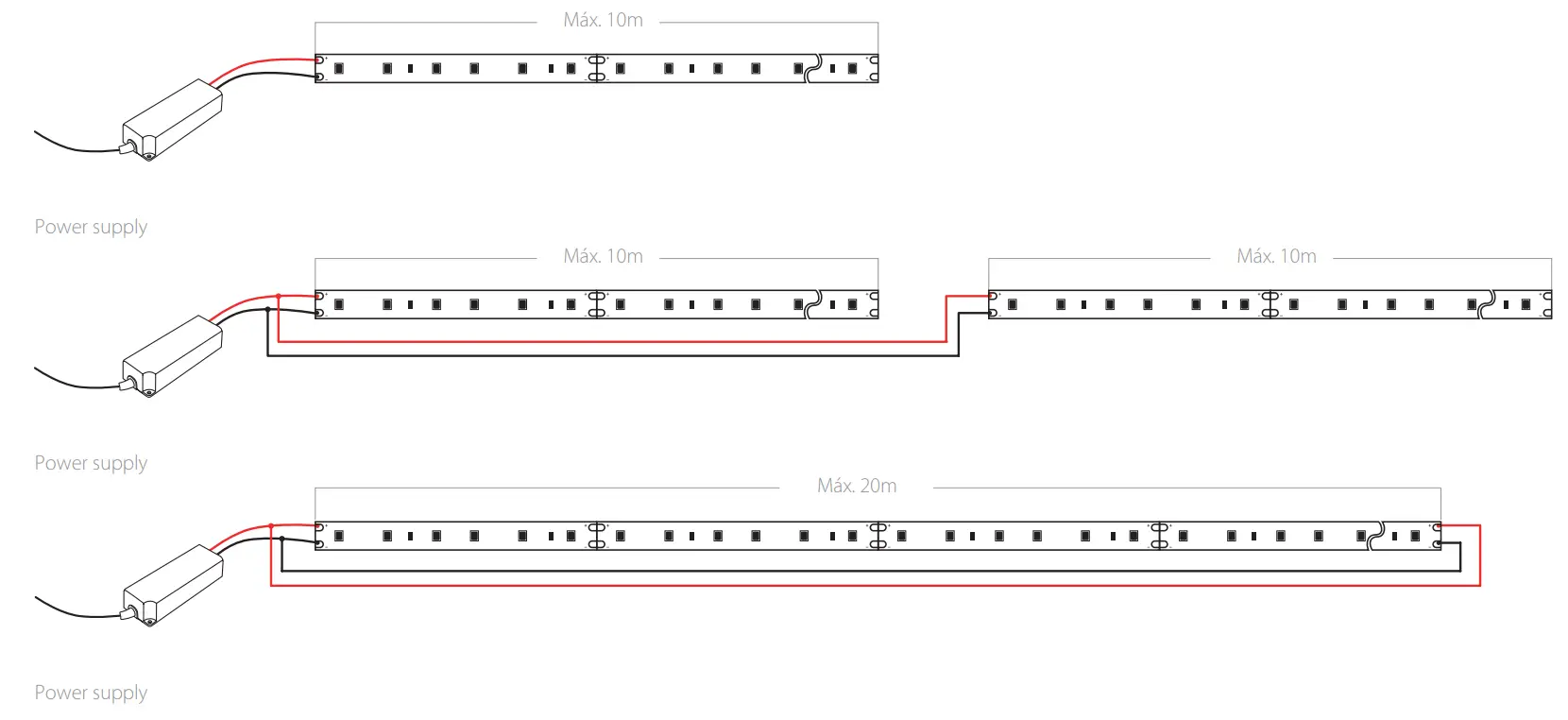

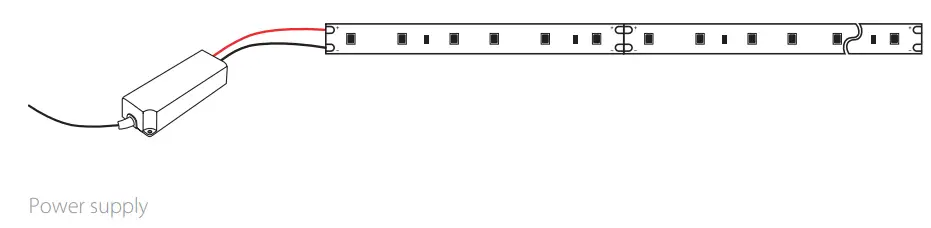

Circuit diagram
Respect the maximum lengths to avoid drops voltage and variations in light intensity.
Cable section
Cable
| Distance | ≤ 5m | < 15m | < 25m |
| Section | 0,50mm2 | 1,5mm2 | 2,5mm2 |

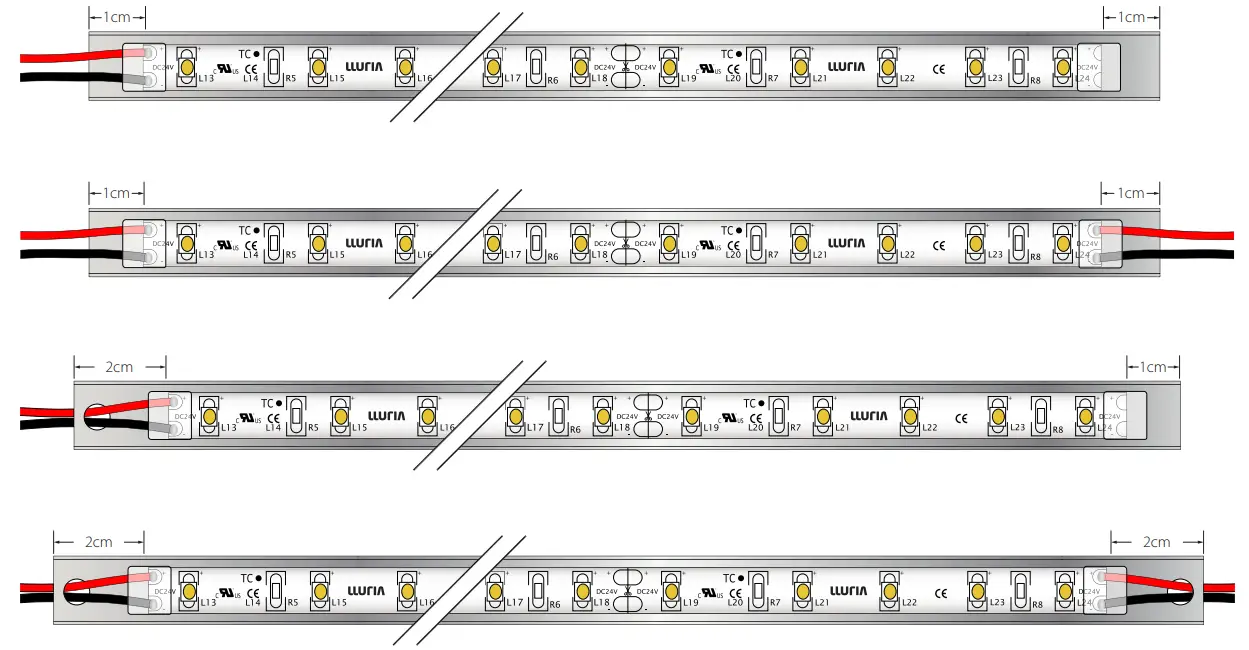

Distance LED – Profile
The minimum distance that should be left at the ends, both sides, between LED strip and profile.

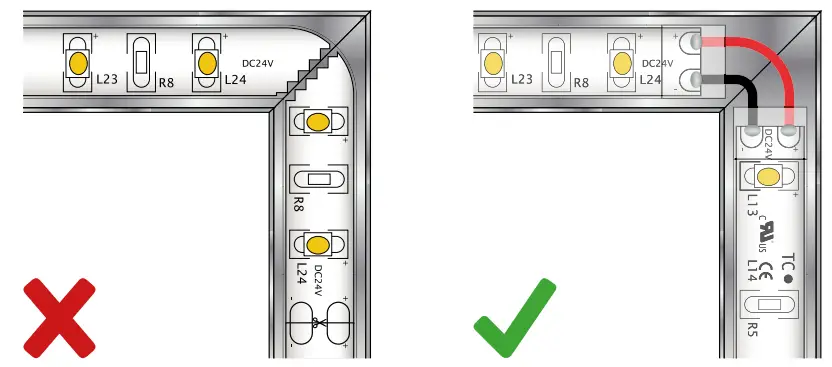

Assembly detail
Do not bend de LED strip to adapt them to a sharp radius or angle, cut for the cut mark, and weld a section of cable to make the turn.
Lifetime
The lifetime of our LEDs is 50.000h at an ambient temperature of 23ºC and provided with a heat dissipation system.
Off cycles are recommended to extend the life of the LEDs.
Warnings
- To ensure the life of the LED, it is requested to place it on a surface that dissipates the heat they generate.
- Caution when handling cables to avoid damage to the welds.
- The voltage surges can cause damage.
- If the diffuser is used with the dissipating profile, there may be variations in the color temperature.
Lluria reserves the right to modify specifications.
