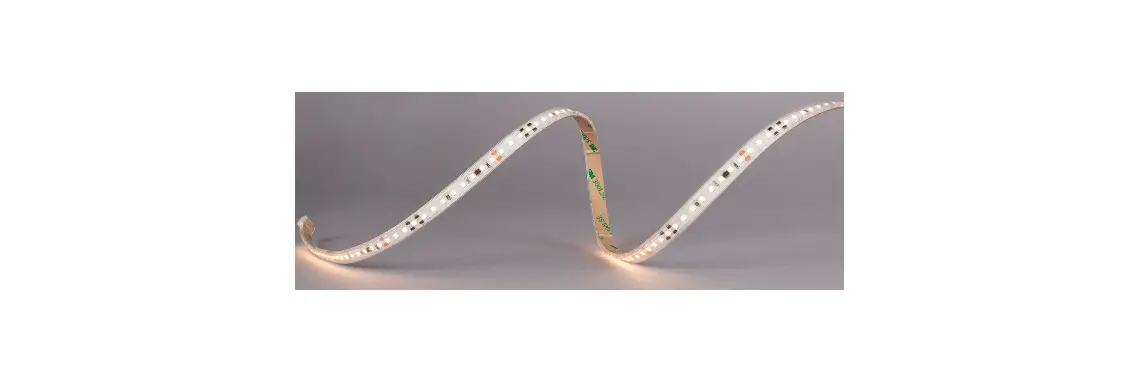

Hidealite Ledstrip 230v Ip65 Instruction Manual

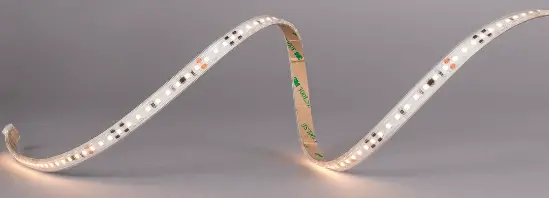

hidealite LEDstrip 230V IP65

TOOLS REQUIRED

Maximum bending radius

Do not twist

(mm)

Installation & Safety Instructions

• The installation should be performed by a qualified electrician.
• See the table of technical specifications and follow the instructions to perform the installation in a safe and correct manner; note the recommendations for maximum lengths.
• When two or more LEDstrips are interconnected, make sure the maximum recommended length is not exceeded.

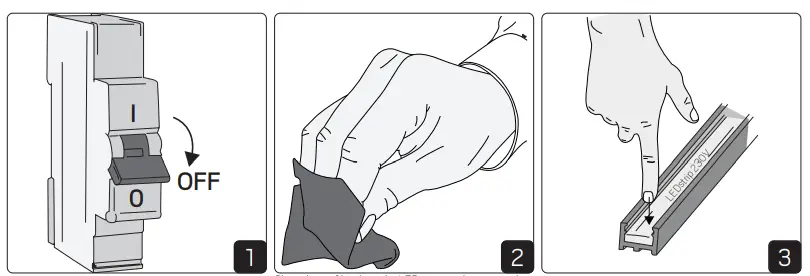

• Make sure the power is switched off during installation and that the LEDstrips do not overlap to avoid overheating.
• It is important that the LED luminaire’s maximum specified ambient temperature is taken into consideration in order to guarantee its life span, if this is exceeded, the life span can be shortened drastically.
• Use the recommended/approved assembly fittings to ensure the lifespan of the LEDstrip.

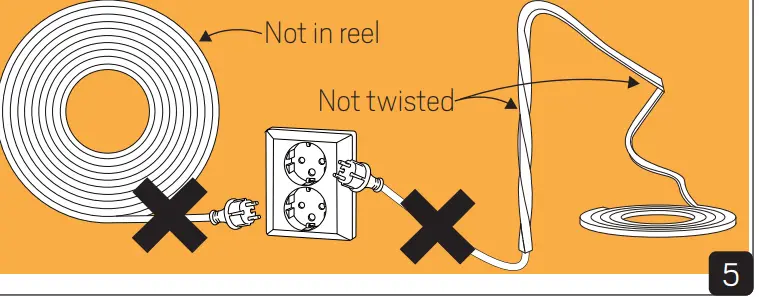

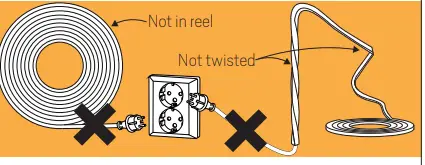

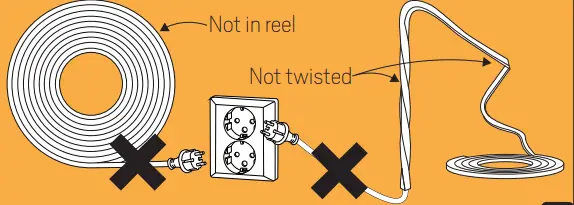

• The LEDstrip must not be switched on when rolled up.
• LEDs are sensitive components and must be treated with care and not subjected to mechanical stress.
• The flexible LEDstrip must not be bent more than the recommended bending radius.
• The LED chip should not be exposed to direct sunlight when switched on.
• The self-adhesive tape is provide for easy installation.
• Use the supplied clips for permanent installation.
• When installed in the profiles (not uplight) recommends heat-resistant silicone for a permanent and sustainable installation.
• Do not apply silicone directly on the LED chip but along the sides.

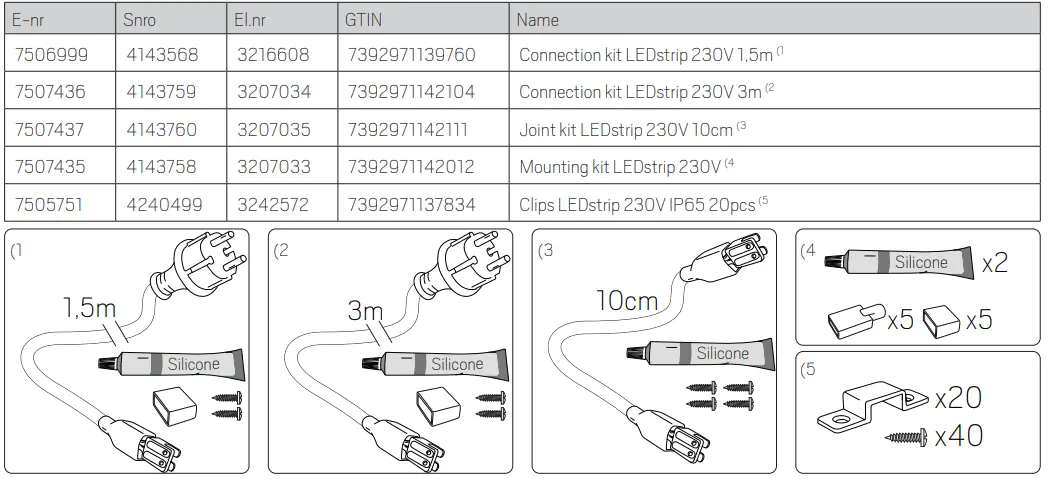

Accessories

SAFETY INSTRUCTIONS
Read these instructions carefully before commencing installation and retain for future reference. The luminaire should be installed by a licensed electrician and in accordance with local regulations. Make sure that the power is off before installation or maintenance

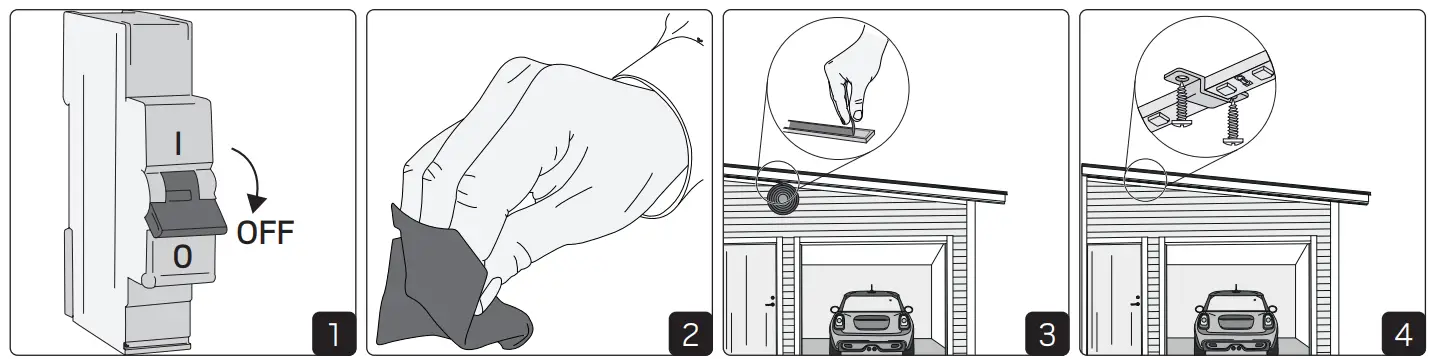

Installation

Installation – 10m kit

NOTE! SHORT CIRCUT RISK 230V! NEVER CONNECT BEFORE PRODUCT IS MOUNTED.

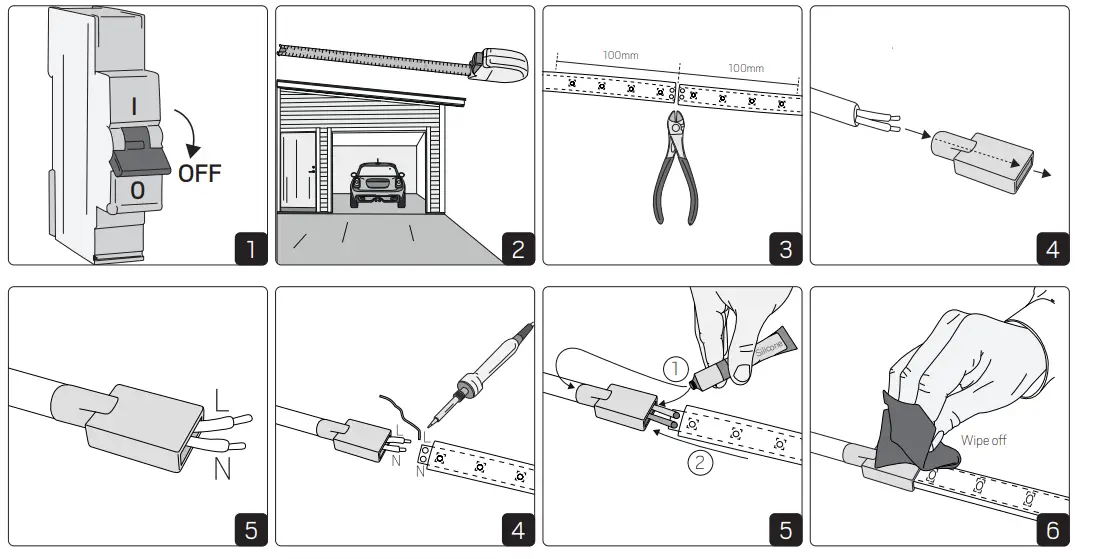

Installation – Cutting

NOTE! SHORT CIRCUT RISK 230V! NEVER CONNECT BEFORE PRODUCT IS MOUNTED.

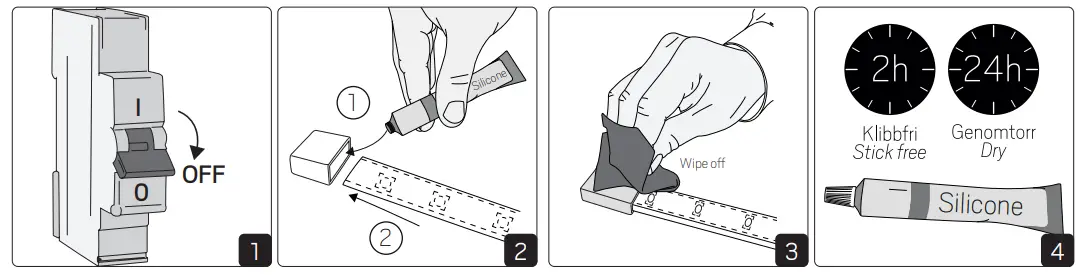

Installation – Endcap

NOTE! SHORT CIRCUT RISK 230V! NEVER CONNECT BEFORE PRODUCT IS MOUNTED.

Installation – Profile
