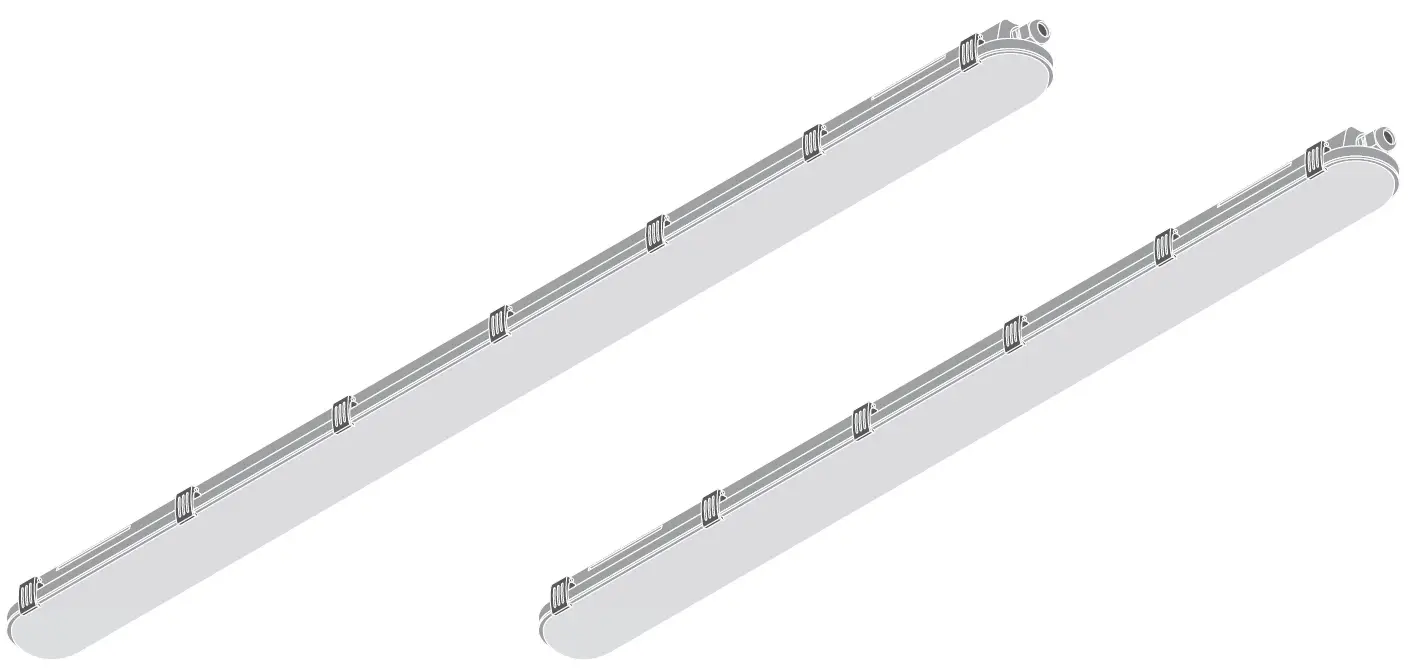

LEDVANCE Damp Proof IP65 1500mm 46W/4000K neutral white
| EAN | l x w x h [mm] | W | VAC | Hz | lm | lm/W | |
| DP 1200 18W 840 IP65 GY | 4058075541047 | 1200 x 82 x 68 | 18 | 220-240 V | 50/60 Hz | 2400 | 135 |
| DP 1200 18W 865 IP65 GY | 4058075541061 | 1200 x 82 x 68 | 18 | 220-240 V | 50/60 Hz | 2400 | 135 |
| DP 1200 32W 830 IP65 GY | 4058075541085 | 1200 x 82 x 68 | 32 | 220-240 V | 50/60 Hz | 4000 | 125 |
| DP 1200 32W 840 IP65 GY | 4058075541108 | 1200 x 82 x 68 | 32 | 220-240 V | 50/60 Hz | 4400 | 135 |
| DP 1200 32W 865 IP65 GY | 4058075541122 | 1200 x 82 x 68 | 32 | 220-240 V | 50/60 Hz | 4400 | 135 |
| DP 1500 26W 840 IP65 GY | 4058075541146 | 1500 x 82 x 68 | 26 | 220-240 V | 50/60 Hz | 3500 | 135 |
| DP 1500 26W 865 IP65 GY | 4058075541160 | 1500 x 82 x 68 | 26 | 220-240 V | 50/60 Hz | 3500 | 135 |
| DP 1500 46W 830 IP65 GY | 4058075541184 | 1500 x 82 x 68 | 46 | 220-240 V | 50/60 Hz | 5750 | 125 |
| DP 1500 46W 840 IP65 GY | 4058075541207 | 1500 x 82 x 68 | 46 | 220-240 V | 50/60 Hz | 6400 | 135 |
| DP 1500 46W 865 IP65 GY | 4058075541221 | 1500 x 82 x 68 | 46 | 220-240 V | 50/60 Hz | 6400 | 135 |
| DP 1500 58W 840 IP65 GY | 4058075541245 | 1500 x 82 x 68 | 58 | 220-240 V | 50/60 Hz | 8000 | 135 |
| DP 1500 58W 865 IP65 GY | 4058075541269 | 1500 x 82 x 68 | 58 | 220-240 V | 50/60 Hz | 8000 | 135 |
| DP 1500 81W 840 IP65 GY | 4058075541283 | 1500 x 82 x 68 | 81 | 220-240 V | 50/60 Hz | 11000 | 135 |
| DP 1500 81W 865 IP65 GY | 4058075541306 | 1500 x 82 x 68 | 81 | 220-240 V | 50/60 Hz | 11000 | 135 |
| EAN | K | IP | IK | Ra | (°C) | PF | |||
| DP 1200 18W 840 IP65 GY | 4058075541047 | 4000 | 65 | 08 | 110° | > 80 | -25…+40 | > 0.9 | 1.3 kg |
| DP 1200 18W 865 IP65 GY | 4058075541061 | 6500 | 65 | 08 | 110° | > 80 | -25…+40 | > 0.9 | 1.3 kg |
| DP 1200 32W 830 IP65 GY | 4058075541085 | 3000 | 65 | 08 | 110° | > 80 | -25…+40 | > 0.9 | 1.4 kg |
| DP 1200 32W 840 IP65 GY | 4058075541108 | 4000 | 65 | 08 | 110° | > 80 | -25…+40 | > 0.9 | 1.4 kg |
| DP 1200 32W 865 IP65 GY | 4058075541122 | 6500 | 65 | 08 | 110° | > 80 | -25…+40 | > 0.9 | 1.4 kg |
| DP 1500 26W 840 IP65 GY | 4058075541146 | 4000 | 65 | 08 | 110° | > 80 | -25…+40 | > 0.9 | 1.6 kg |
| DP 1500 26W 865 IP65 GY | 4058075541160 | 6500 | 65 | 08 | 110° | > 80 | -25…+40 | > 0.9 | 1.6 kg |
| DP 1500 46W 830 IP65 GY | 4058075541184 | 3000 | 65 | 08 | 110° | > 80 | -25…+40 | > 0.9 | 1.7 kg |
| DP 1500 46W 840 IP65 GY | 4058075541207 | 4000 | 65 | 08 | 110° | > 80 | -25…+40 | > 0.9 | 1.7 kg |
| DP 1500 46W 865 IP65 GY | 4058075541221 | 6500 | 65 | 08 | 110° | > 80 | -25…+40 | > 0.9 | 1.7 kg |
| DP 1500 58W 840 IP65 GY | 4058075541245 | 4000 | 65 | 08 | 110° | > 80 | -25…+40 | > 0.9 | 1.7 kg |
| DP 1500 58W 865 IP65 GY | 4058075541269 | 6500 | 65 | 08 | 110° | > 80 | -25…+40 | > 0.9 | 1.7 kg |
| DP 1500 81W 840 IP65 GY | 4058075541283 | 4000 | 65 | 08 | 110° | > 80 | -25…+40 | > 0.9 | 1.7 kg |
| DP 1500 81W 865 IP65 GY | 4058075541306 | 6500 | 65 | 08 | 110° | > 80 | -25…+40 | > 0.9 | 1.7 kg |

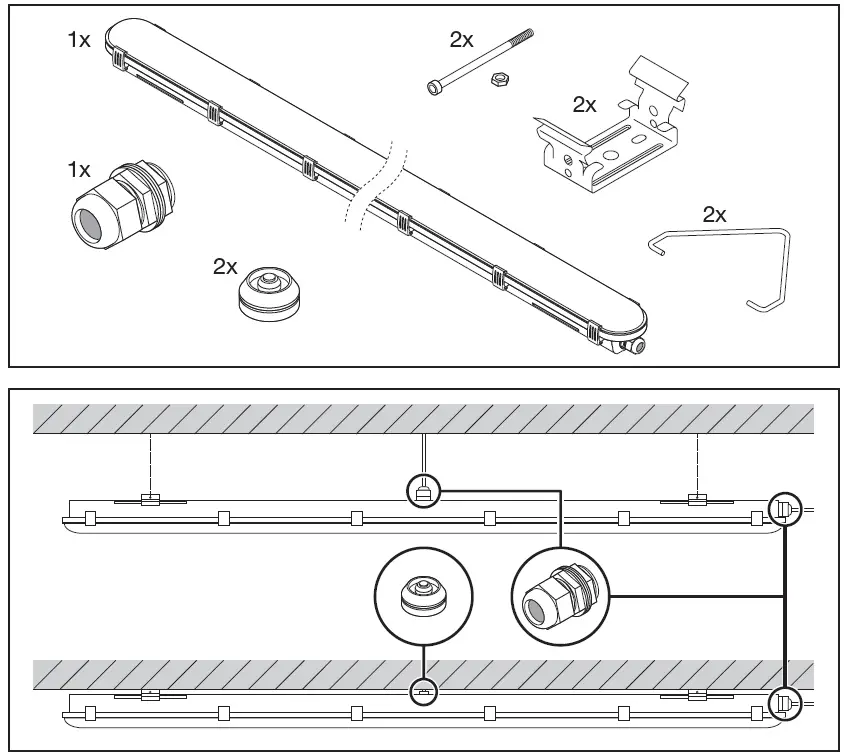

PARTS INCLUDED

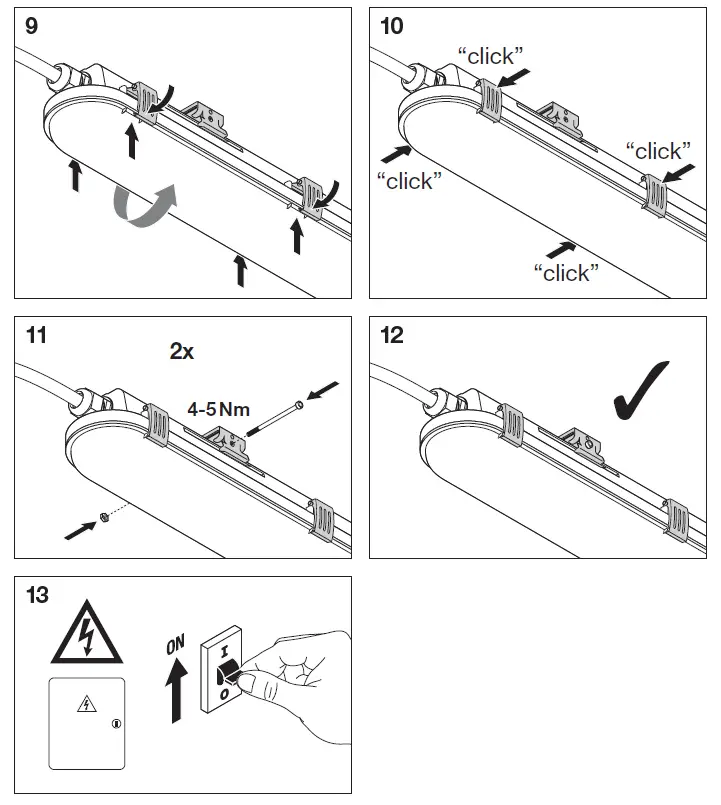

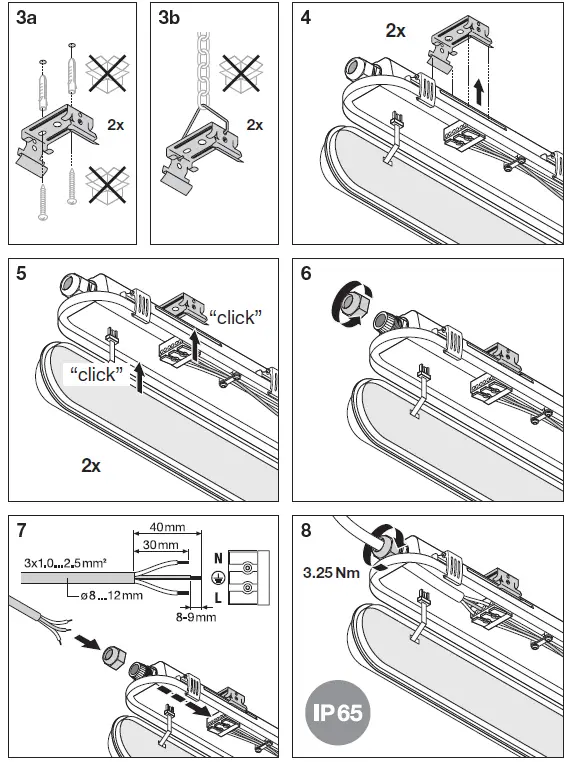

INSTALLATION INSTRUCTIONS
