75 046 57 LED STRIP

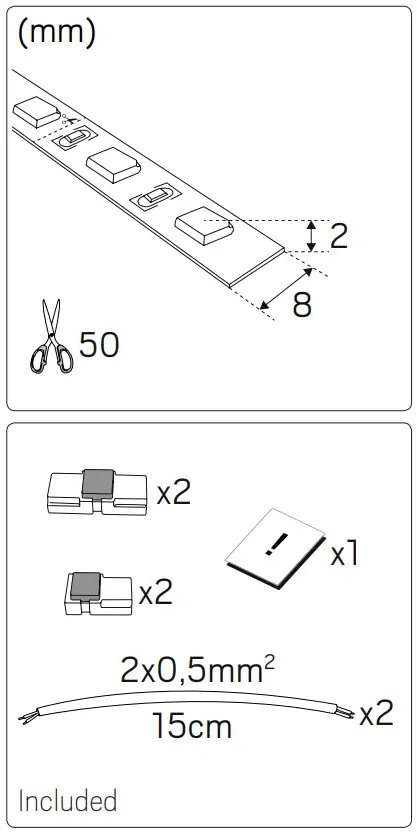

E-nr	Snro	El.nr	GTIN	Length	Max.Length	LED color	Cutting increments	Cooling via aluminum profile is required	Output max/m	Voltage DC
75 046 57	42 223 89	32 359 63	7.39E+12	5m	5m	3000K	50mm	Yes	19,2W	24V
75 046 58	42 223 90	32 359 64	7.39E+12	rm	5m	3000K	50mm	Yes	19,2W	24V
75 057 24	41 435 03	32 425 45	7.39E+12	5m	5m	4000K	50mm	Yes	19,2W	24V
75 057 25	41 435 04	32 425 46	7.39E+12	rm	5m	4000K	50mm	Yes	19,2W	24V

SAFETY INSTRUCTIONS

Read these instructions carefully before commencing installation and retain for future reference. The luminaire should be installed by a licensed electrician and in accordance with local regulations. Make sure that the power is off before installation or maintenance.

Installation & Safety Instructions

The installation should be performed by a qualified electrician.
See the table of technical specifications and follow the instructions to perform the installation in a safe and correct manner; note the recommendations for maximum lengths.
Make sure that the LEDstrip’s voltage corresponds with that of the drive unit and ensure that the polarity is correct.

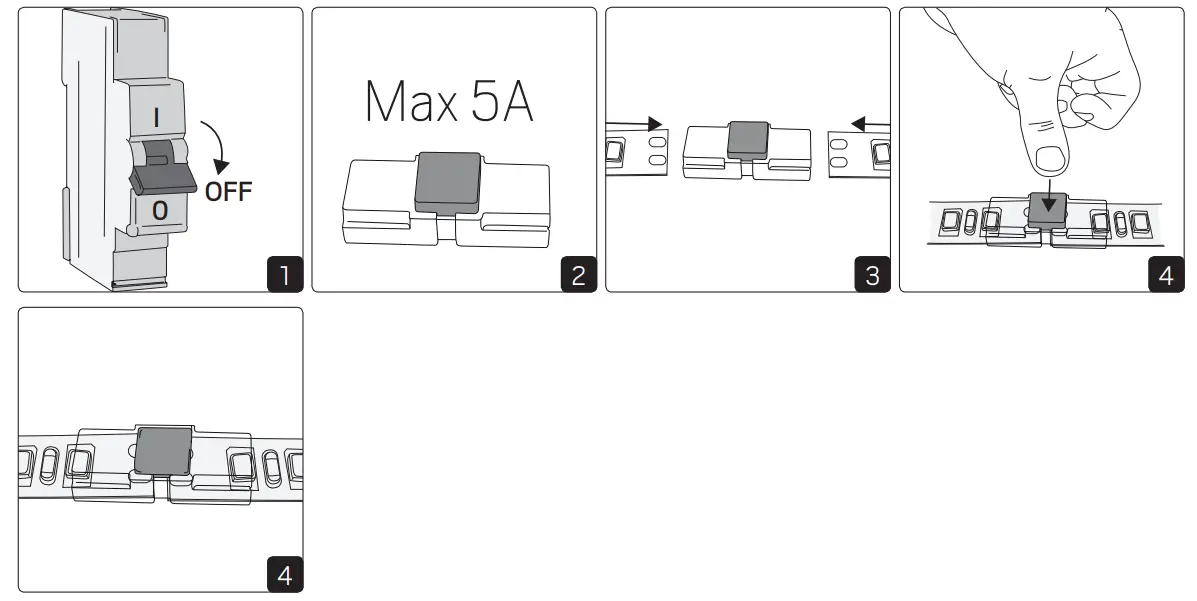

When two or more LEDstrips are interconnected, make sure the maximum recommended length is not exceeded.
Make sure the power is switched off during installation and that the LEDstrips do not overlap to avoid overheating.
It is important that the LED luminaire’s maximum specified ambient temperature is taken into consideration in order to guarantee its life span, if this is exceeded, the life span can be shortened drastically.
Use the recommended/approved assembly fittings to ensure the lifespan of the LEDstrip.
The LEDstrip must not be switched on when rolled up.
LEDs are sensitive components and must be treated with care and not subjected to mechanical stress.

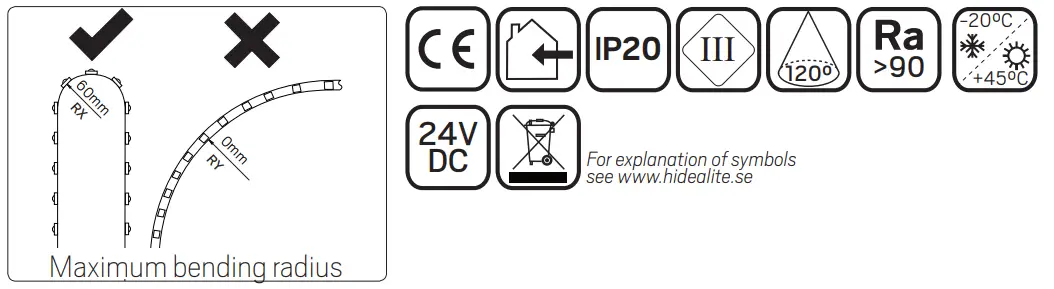

The flexible LEDstrip must not be bent more than the recommended bending radius.
The LED chip should not be exposed to direct sunlight when switched on.
The double-sided adhesive tape is for installing the lights, but may need to be complemented with heat-resistant silicone. When installed in the profiles (not uplight) recommends heat-resistant silicone for a permanent and sustainable installation. Do not apply silicone directly on the LED chip but along the sides.

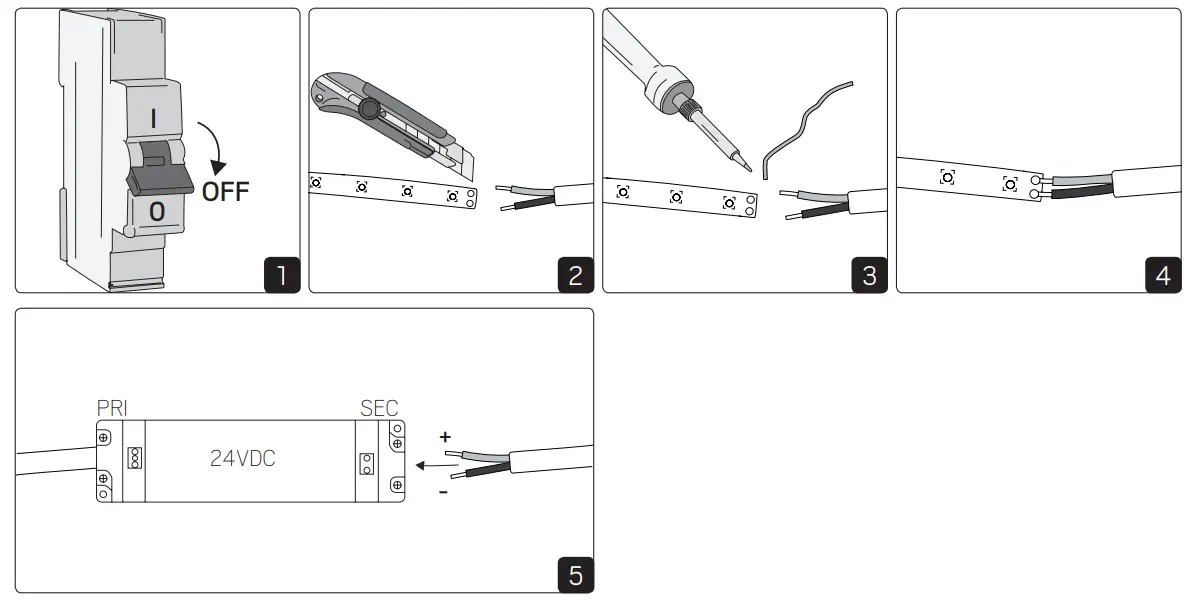

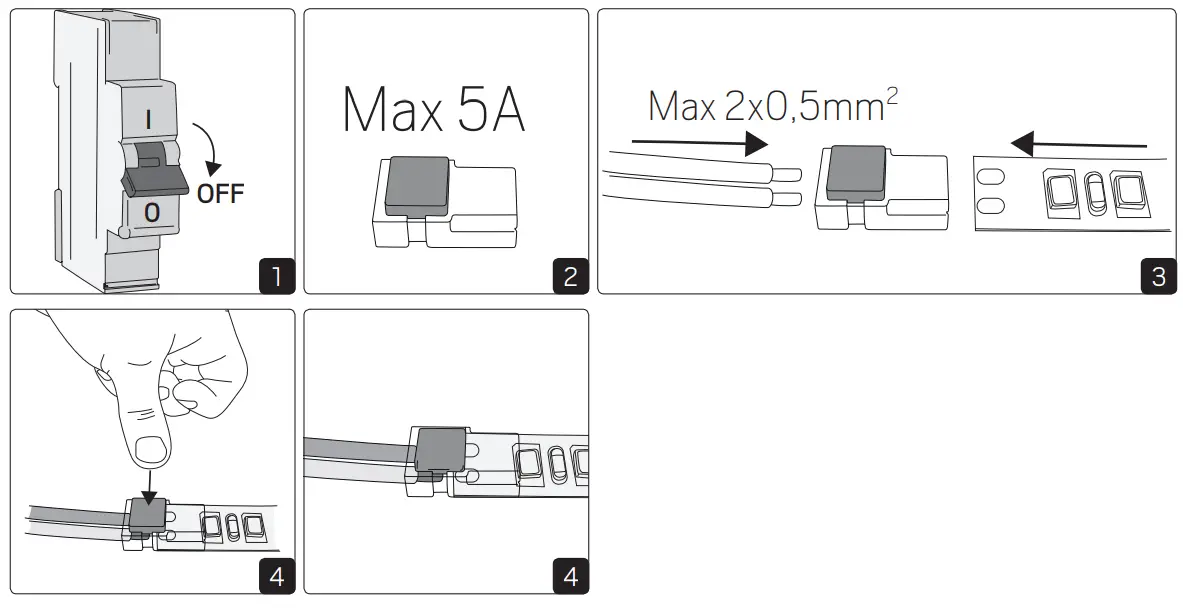

Installation
