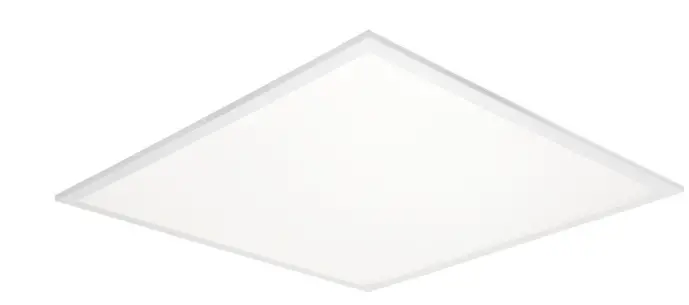

AIRAM IP44 27W/940 3500LM PSMP DA2 Plano Pro

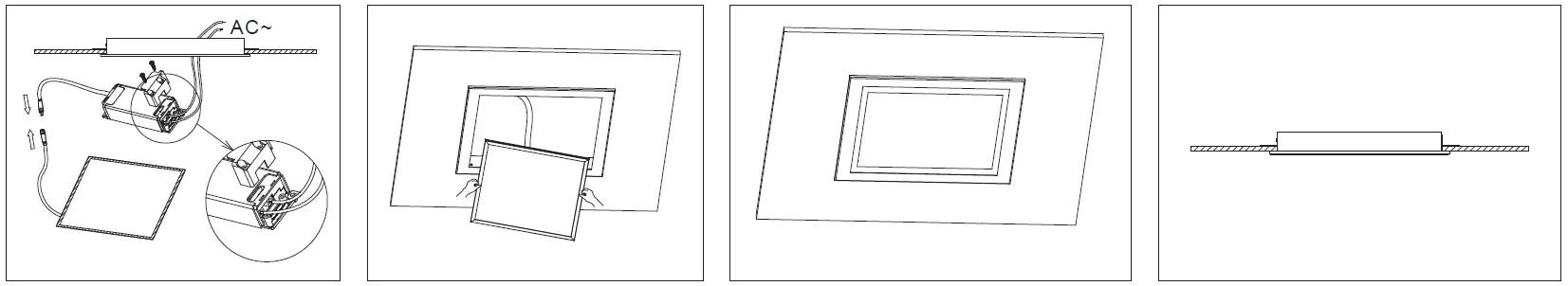

Mounting instructions
Modular luminaire
- The luminaire is not suitable for covering with thermally insulated material.

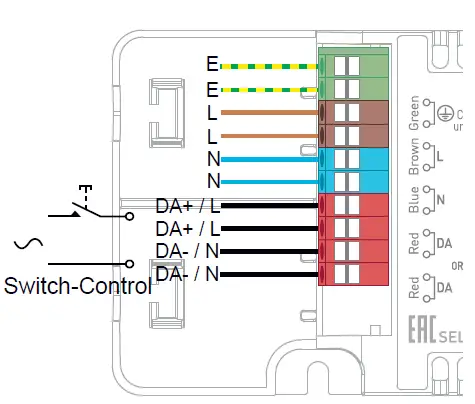

On/off / DIM / TW

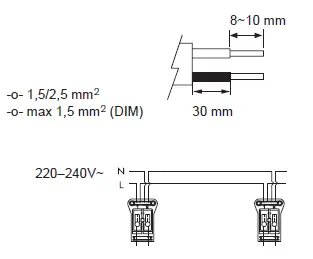

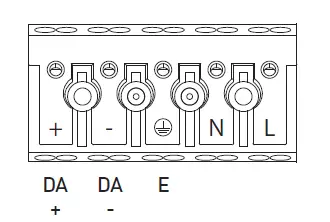

- E = Continuity/termination of earth wires
Switch-Control
- Push-button control (230 V)
This product contains a light source of energy efficiency class D.
Only a professional electrician is allowed to do the installation. Use only rated voltage and frequency as marked in the fixture/driver. Switch off the current before installation or service. This mounting instruction must be kept available during installation and for future maintenance. The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole luminaire shall be replaced.
Airam Electric Oy Ab, Sementtitehtaankatu 6, FI-04260 Kerava, Finland, www.airam.fi
