Hidealite Moon Slim Ceiling Light Instruction Manual

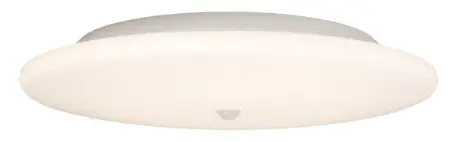

hidealite Moon Slim Ceiling Light

Moon Slim

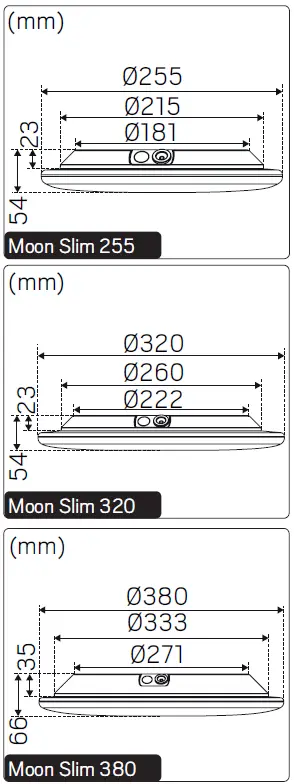

Moon Slim 320 & 380 – Moon Slim 255 4000K
This product contains a light source of energy efficiency class D to Regulation (EU) No 2019/2015.

Moon Slim 255 3000K
This product contains a light source of energy efficiency class E to Regulation (EU) No 2019/2015.

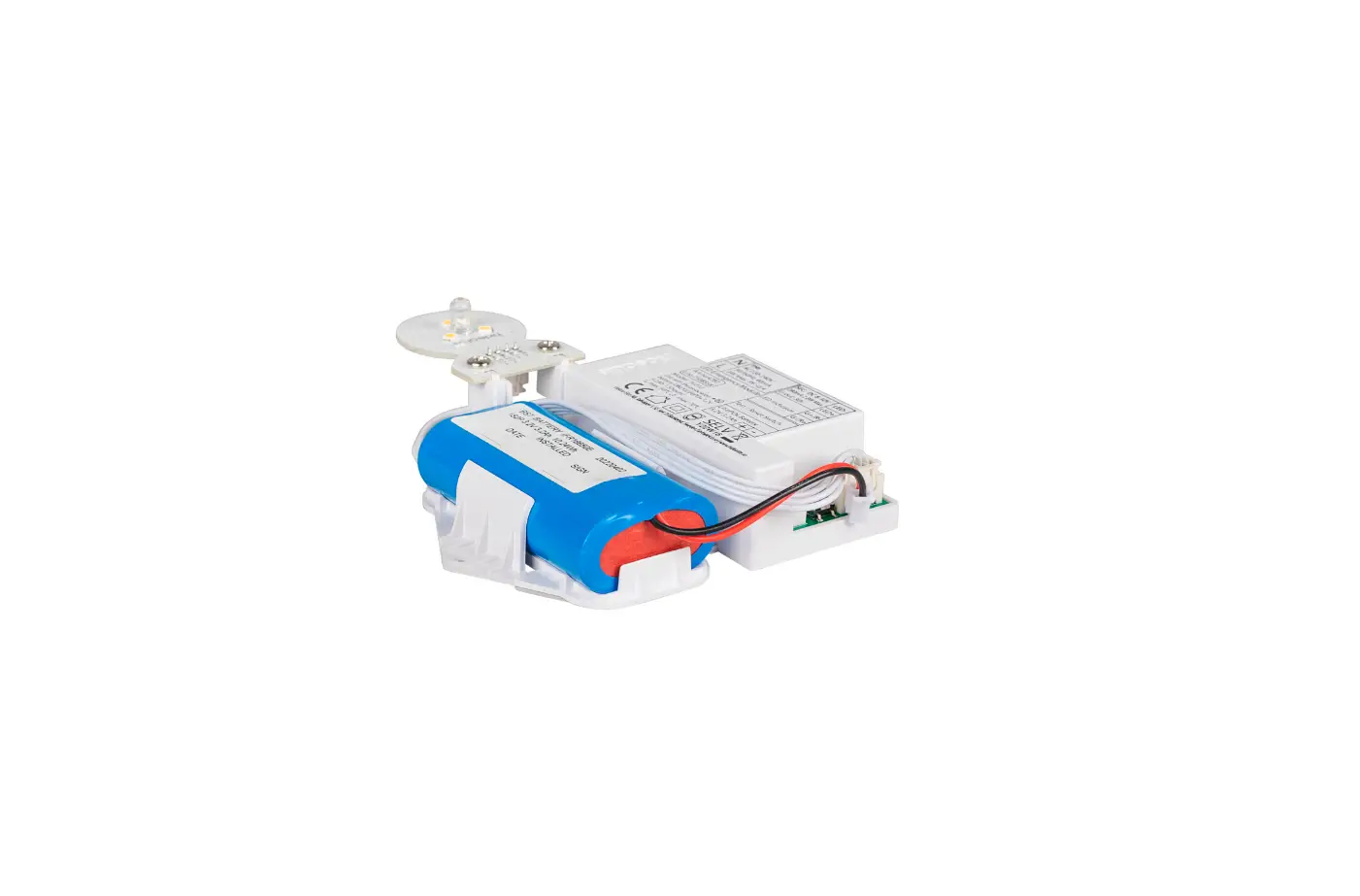

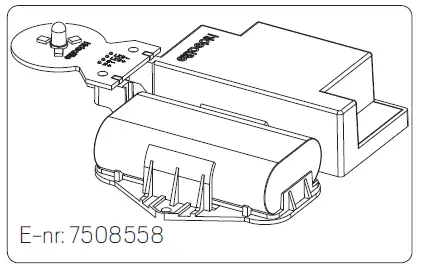

Accessories for Moon Slim 380

SAFETY INSTRUCTIONS

Read these instructions carefully before commencing installation and retain for future reference. The luminaire should be installed by a licensed electrician and in accordance with local regulations. Make sure that the power is off before installation or maintenance. List of recommended dimmers can be found at www.hidealite.com

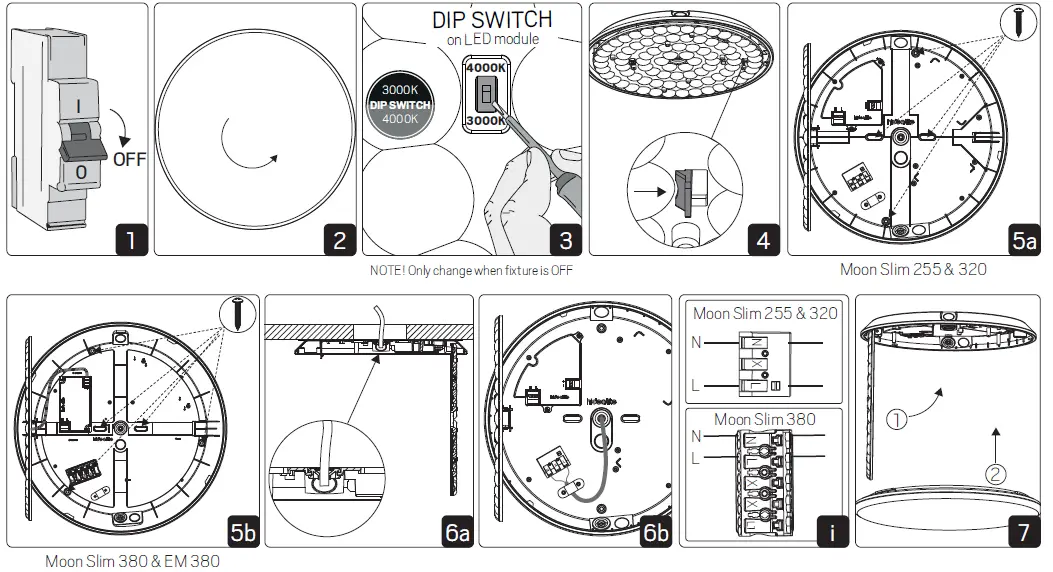

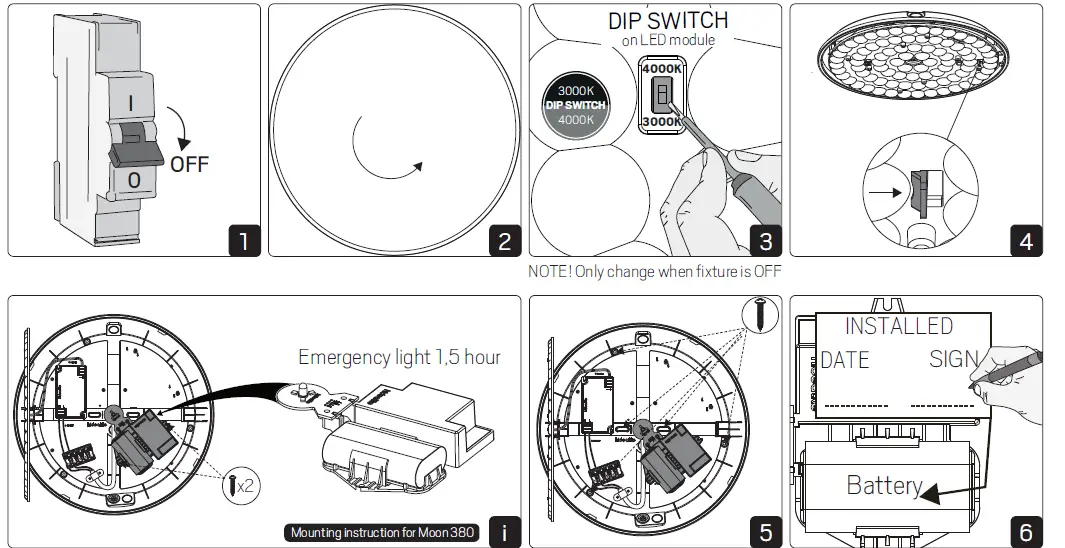

Installation

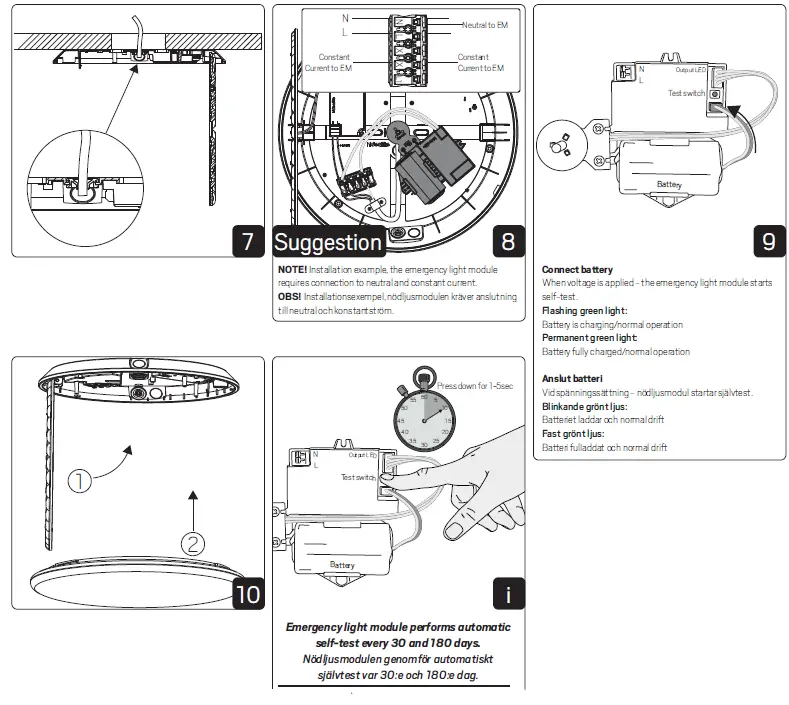

Installation Moon Slim 380 EM and 380 with EM accessories

Manual self test:

1. Press and hold the test button for 1-5sec.
2. LED of the emergency light module lights up.
   Every 30 days – automatic self-test.
   Every 180 days – The LED of the emergency light module lights up for 1,5 hours for a complete battery and module test.

Troubleshooting

Flashing red light

1. Check the connection cable between the battery and the module.

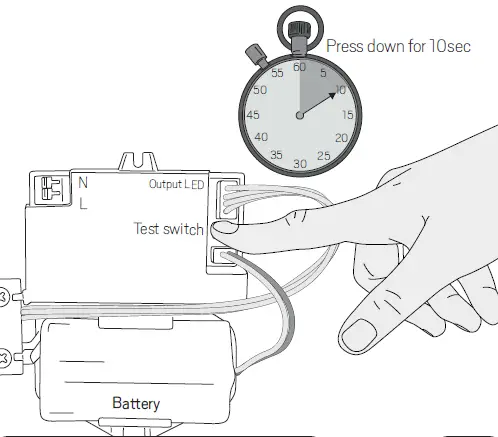

2. Press and hold the test button for 10sec.
3. The emergency light module resets and starts self-test.

Flashing / Permanent green:
Normal operation on module and battery

Flashing red light:
Battery not connected/Battery defective.
Replace battery – Press and hold the test button for 10sec.

Solid red light:
Defective emergency light module
Replace emergency light module and battery

Factory reset:
For factory reset press and hold the test button for 15 sec.
NOTE: Automatic self-test cycle is reset.
