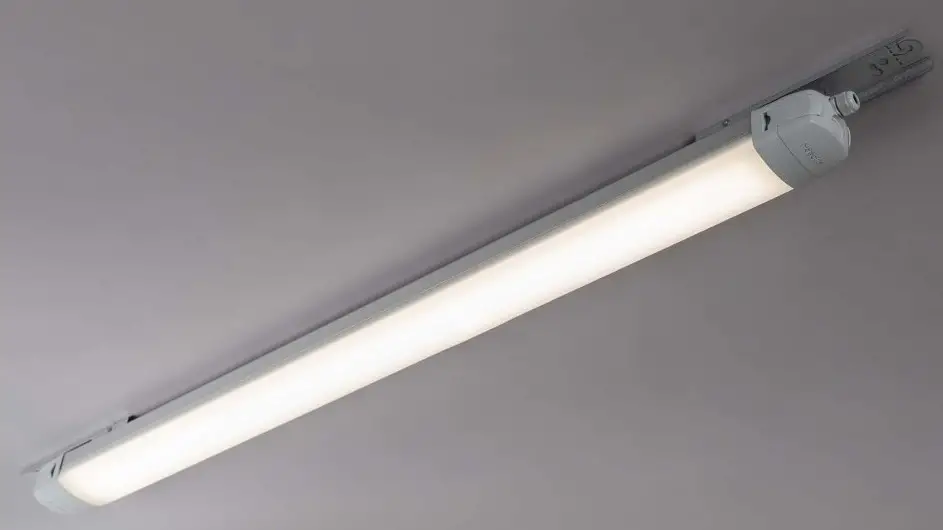

hidealite Liteline IP65 1500 DALI

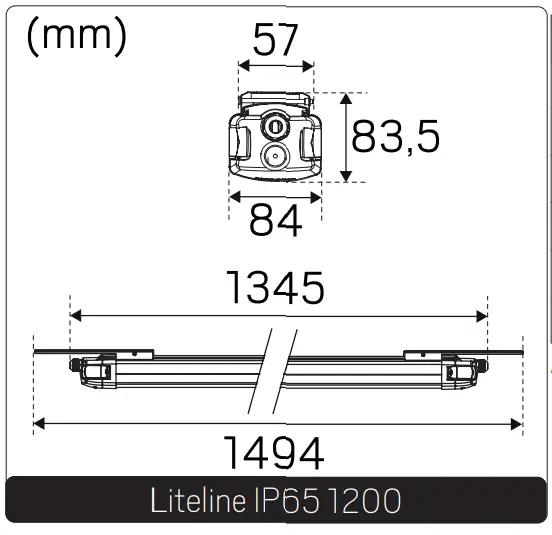

DIMENSION

E-nr	Snro	El.nr	GTIN	Name	LED color	Color	Unit effect
7215250	4318300	3242589	7392971138930	Liteline IP65 1200 840*	4000K	White	38W
7215251	4318301	3242590	7392971138947	Liteline IP65 1200 S 840**	4000K	White	38,5W
7215906	4318308	3216655	7392971140377	Liteline IP65 1200 840 DALI***	4000K	White	49,5W
7215252	4318302	3242591	7392971138954	Liteline IP65 1500 840*	4000K	White	49,5W
7215253	4318303	3242592	7392971138961	Liteline IP65 1500 S 840**	4000K	White	50W
7215907	4318309	3216656	7392971140384	Liteline IP65 1500 840 DALI ***	4000K	White	50W

SAFETY INSTRUCTIONS

Read these instructions carefully before commencing installation and retain for future reference. The luminaire should be installed by a licenensed electrician and in accordance with local regulations. Make sure that the power is off before installation or maintenance.

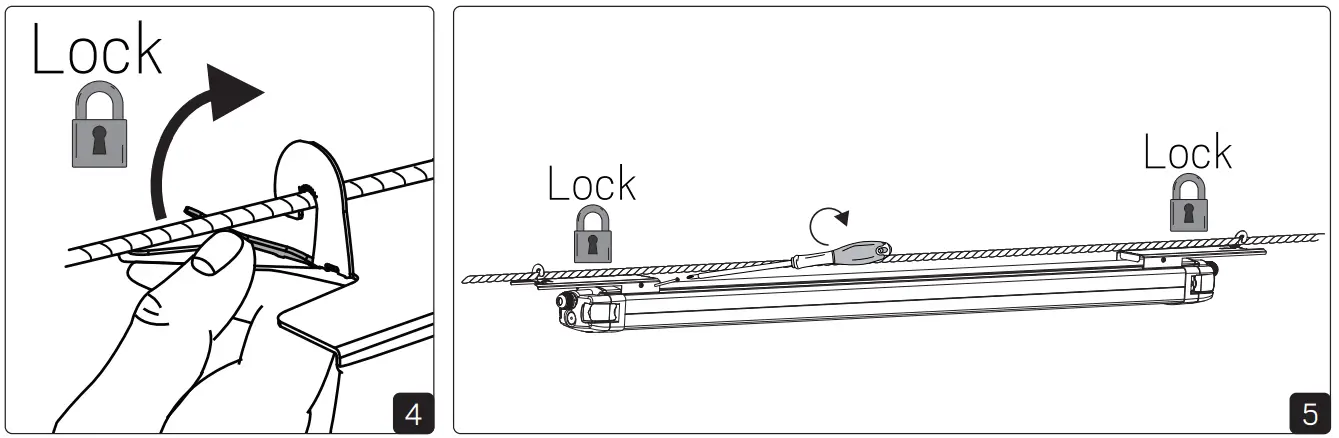

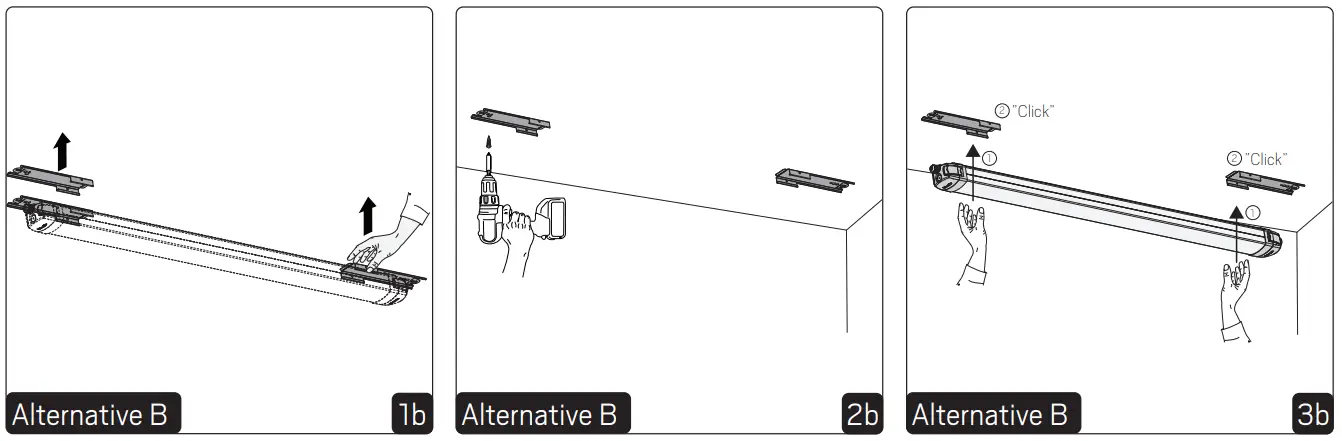

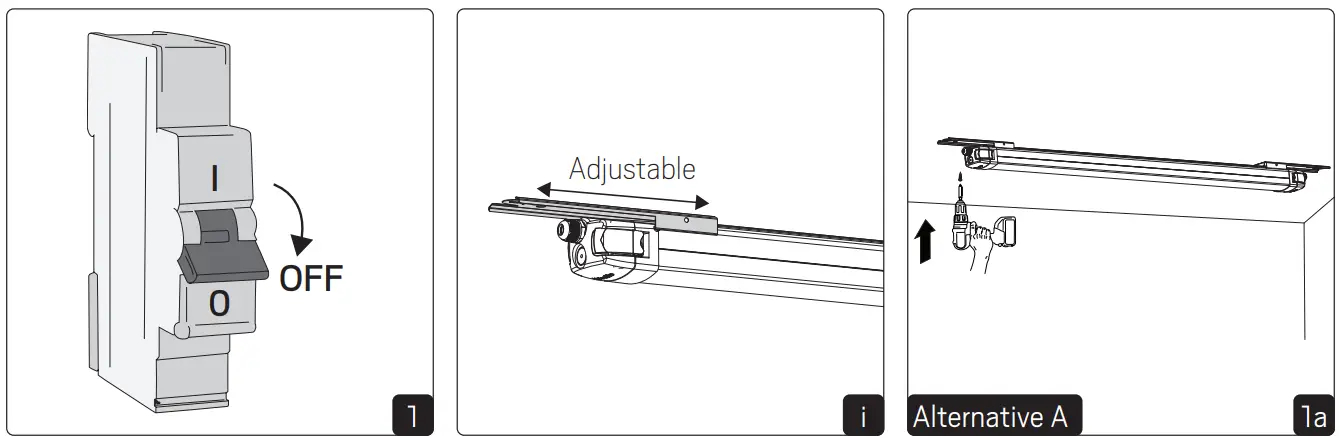

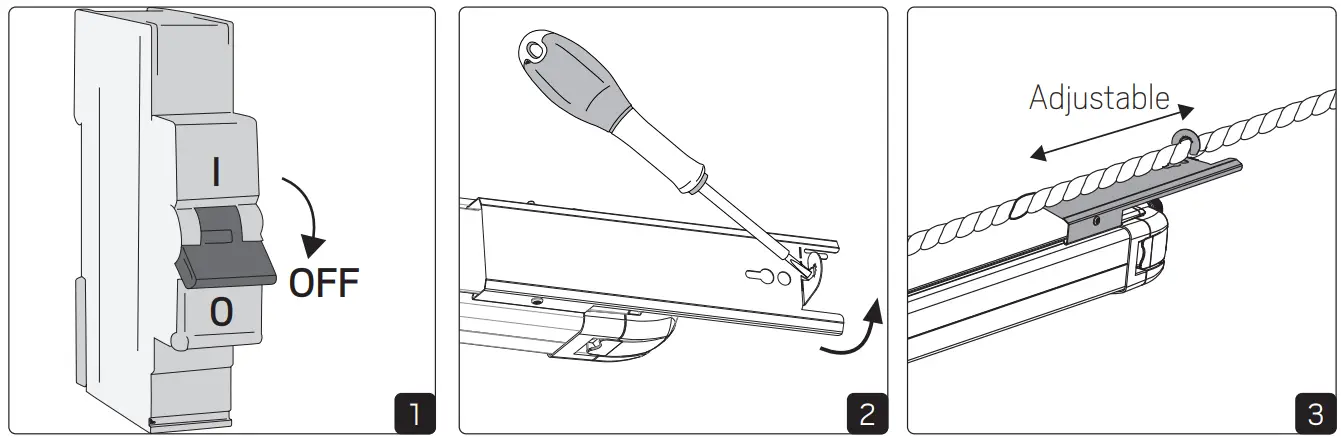

Installation

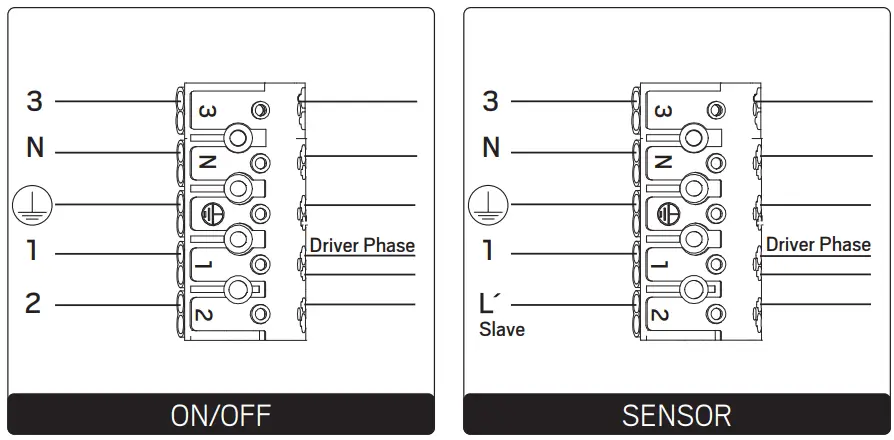

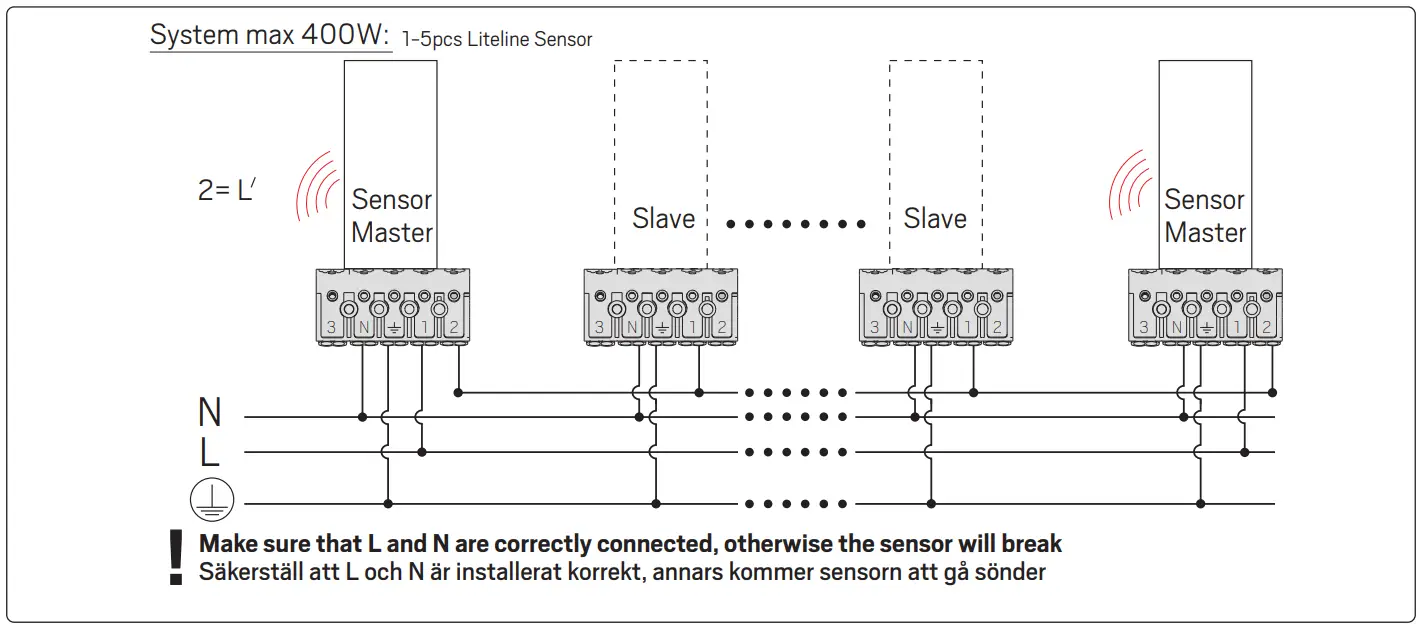

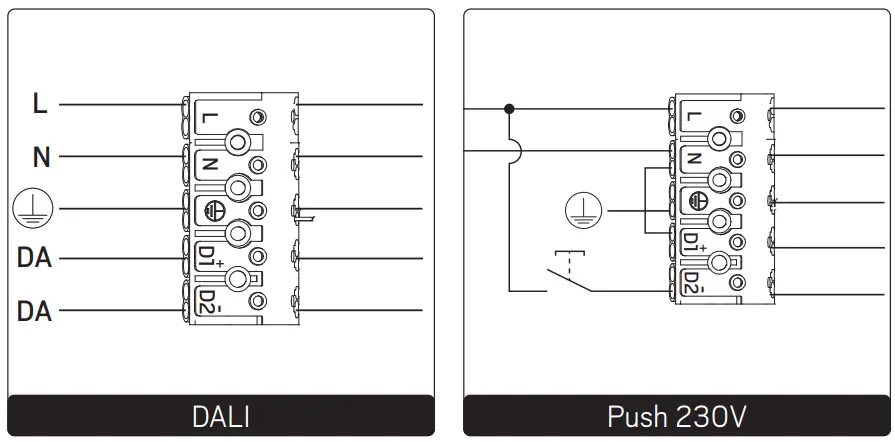

Installation – Wire

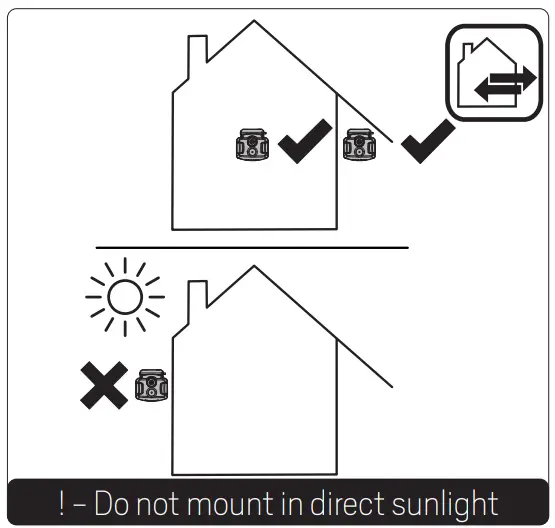

Function motion sensor

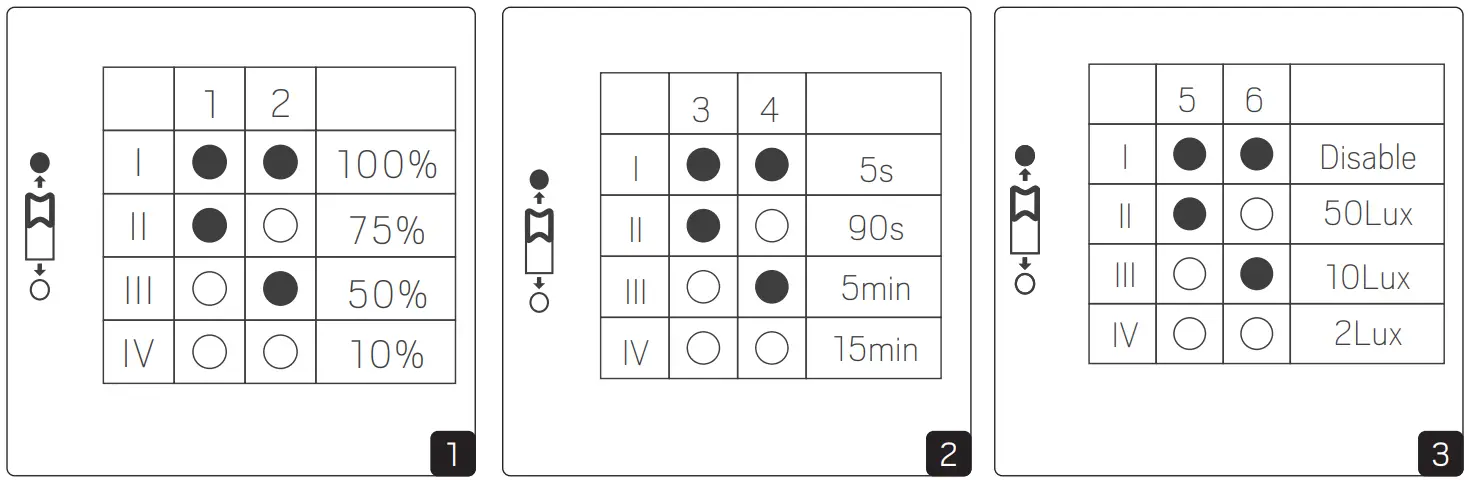

Range – The range is the area the sensor covers. The units lights when motion is sensed in the area. Set the DIP switch as follows to adjust the sensor’s range.
Hold Time – A delay time concerns the time the unit remains lit after the person leaves the sensor’s range. Set the DIP switch as follows to adjust the sensor’s hold time.
Daylight sensor – Set the daylight sensor as per the DIP switch for different activation values.The unit functions as per the settings below: Disable: Sensor always active, even in daylight. 50Lux: Sensor active from slight light reduction. 10Lux: Sensor active from almost dark. 2Lux: Sensor active from totally dark.

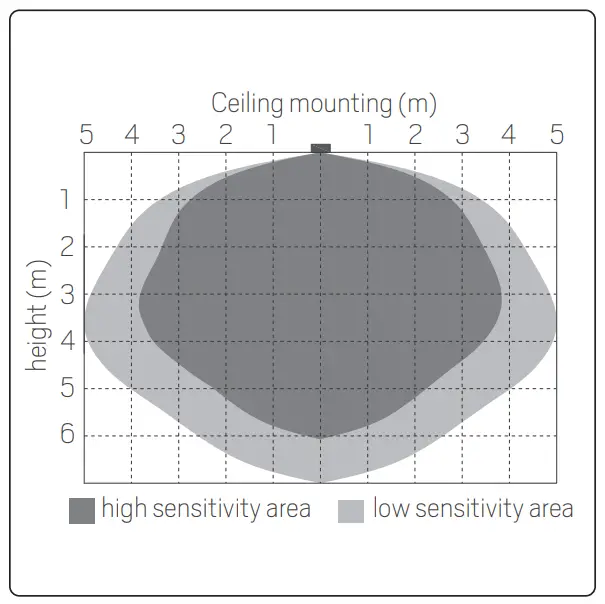

Range – Ceiling mounting (Unit: m)
Suggested installation height: 2.5-6m

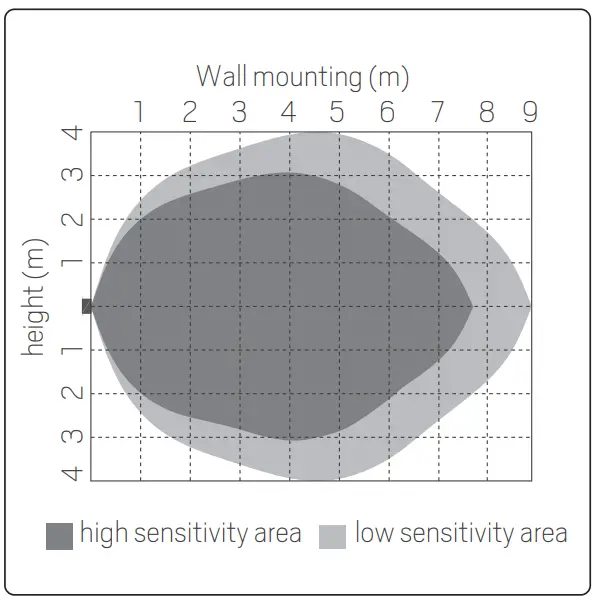

Range – Wall mounting (Unit: m)
Suggested installation height: 1-1.8m

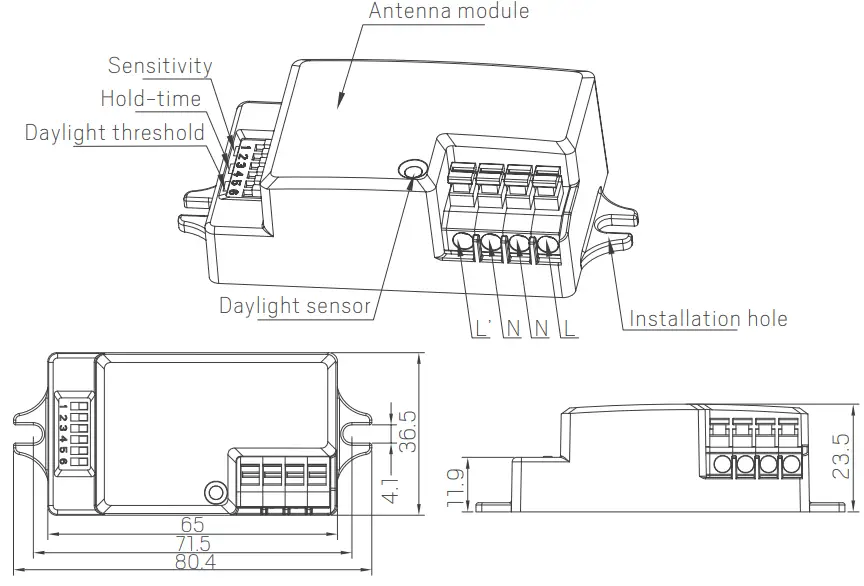

PRODUCT OVERVIEW

SPECIFICATION

MC030S
Operating voltage	220~240VAC, 50/60Hz
Rated load	400W(inductive), 800W (resistive)
HF system	5.8GHz±75MHz, ISM wave band
Transmitting power	<0.2mW
Power consumption	<0.5W(standby)
Detection zone	Max.(D x H): 10m x 6m
Detection sensitivity	10% / 50% / 75% / 100%
Hold time	5s / 90s / 5min / 15min
Daylight sensor	2lux / 10lux / 50lux / Disable
Mounting height	6m Max.
Detection angle	150°(wall installation) 360°(ceiling installation)
Operating temperature	-20°C ~ 60°C
IP rating	IP20
