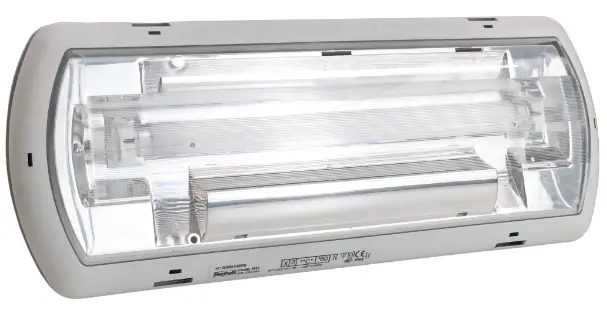

Zero TR Emergency Lights
Instruction Manual
Zero TR Emergency Lights
www.beghelli.com
www.beghelli.com

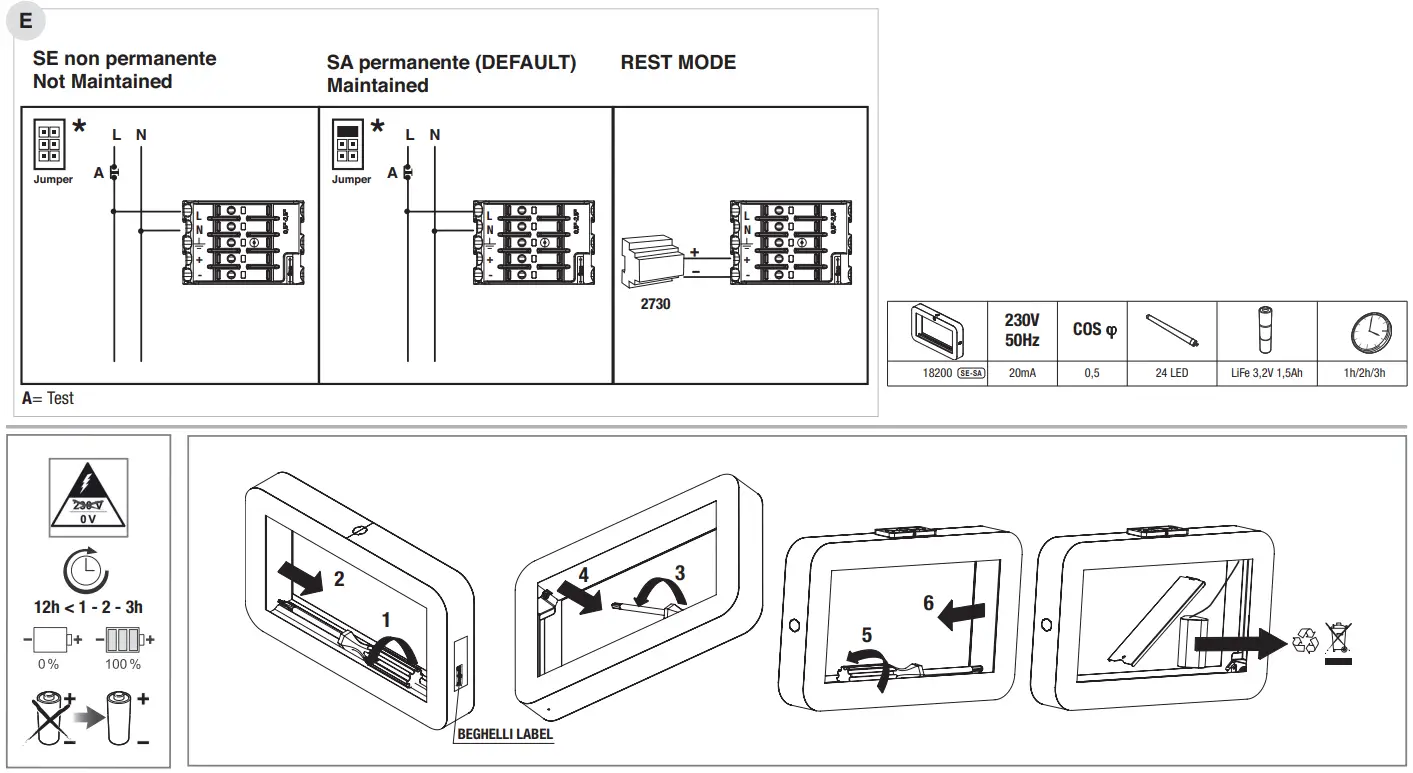

WIRING DIAGRAMS (G)
A= Test To set the device in rest-mode, refer to the instructions of the Inibit remote controller (Order code 2730).
LED SIGNALS
| FIXED GREEN | BATTERY CHARGING |
| FIXED RED | BATTERY DISCONNECTED |
WARNINGS – GUARANTEE
– This device shall be used exclusively for the purpose for which it has been designed. Any other use is considered improper and therefore dangerous.
– Rechargeable battery and LED source are non-replaceable type.
Contact an authorised technical service centre for any repairs possibly required use only original spare parts.
The lacked respect of the above conditions may compromise the safety of the device.
