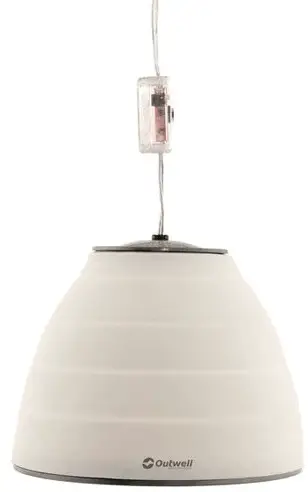

Overview

UK: INSTRUCTION MANUAL

Light modes:

• Press the button (1.) to switch on / off the light.
• Press and hold the button to dim the light. The light can be dimmed stepless to any setting between maximum and minimum light output.
• Press the ON button on the remote (8.) to switch on the light.
• Press the OFF button on the remote (8.) to switch off the light.
• When using the remote, the dim setting selected on the (lamp) button (1.) will be remembered.

Use of the lamp:

• Lamp is powered by 5V DC.
• Lamp can be powered by any 5V USB output, or by the supplied AC/DC adapter (5.).
• To extend lantern lampshade, grab the edge of the lampshade (6.) and push the body out from the inside, do not pull on the cord. To collapse the lampshade, reverse the above.
• Hang lamp from the hanging point, adjust height as needed by gently moving the cord through the adjuster.
• For indoor use only.

• Lamp can be cleaned with a damp rag.
• Do not use corrosive liquids to clean the lamp.
• Do not stare into the light source.

Light source: LED

This product contains a light source of energy efficiency class E. Light source and control gear is not replaceable. This would introduce weak points in the construction, that could reduce the lifetime of the product.

Instruction for removal of light source and control gear by market surveillance authorities:

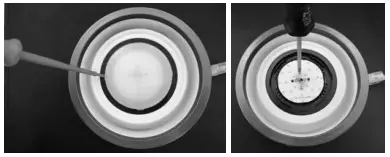

1. Remove lamp lens by using a flathead screwdriver to open the four tabs.
2. Unscrew 2 pcs screws holding PCB with LEDs in place.
3. Cut needed wires to remove the required components for testing.

   Instruction for disassembly of lamp for disposal of components when lamp has reached the end of its usable life:
   See steps 1-2 above

   Cut wires and remove screws to allow removal of electronics on circuit board. Dispose of electronics according to local regulations.
4. Dispose of remaining components according to local regulations.

Technical data (lamp):

5V
Class 3 appliance

Remote:

12W (1x12V MN21)
Class 3 appliance

AC/DC adaptor:

Input (AC/DC adaptor):
100-240V , 0.3A

Output (AC/DC adaptor):
5V , 2A
Class 2 appliance

References

• Outwell - Innovative Family Camping - buy online here
