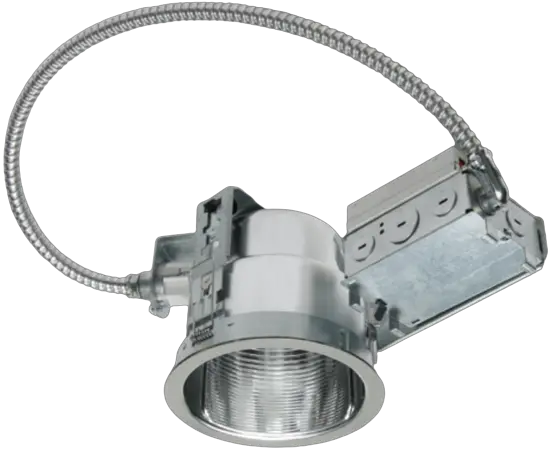

COOPER Lighting Solutions C6RH142 Horizontal Open Downlight Instruction Manual
DESCRIPTION
Low brightness 6″ aperture GRUVI wall wash for use with 26W, 32W, or 42W Triple Twin Tube 4-pin compact fluorescent lamp for below ceiling installation. The geometric stepped reflector maximizes flux towards the wall and is spectrally neutral leaving the color temperature and the color rendering of the source unchanged. It is available in single and double wall wash versions. The one piece design eliminates light leaks at the ceiling. Standard features include low iridescent finish on all reflectors, electronic ballast and venting to ensure maximum lamp life and lumen output. Optics offer unparalleled performance with uniform illumination on wall, no flashback. Open downlight, lens, and open wall wash trims are interchangeable within the same housing.
SPECIFICATION FEATURES
Reflector
Injection molded Geometric Reflector for Uniform Vertical Illumination is vacuum metallized with polysiloxane hardcourt finish. One piece spun parabolic downlight reflector, .050 thick aluminum, available in a variety of Alzak® finishes.
Trim Ring Options
Self flanged or molded white trim ring. Rimless or metal trim ring accessories available.
Socket Connector
One piece die cast aluminum connection allows venting for maximum thermal performance
Housing Construction
Galvanized steel plaster ring accommodates up to 1″ ceiling thickness.
Conduit Fittings
Snap-in connectors.
Rotary Lock Socket
4 pin rotary base with fatigue free stainless steel lamp spring ensures positive lamp retention.
Electronic Ballast
Electronic ballast provides full light output and rated lamp life. Provides flicker free and noise free operation and starting. End of lamp life protection is standard.
Labels
cULus listed, C.S.A. certified, standard damp label.

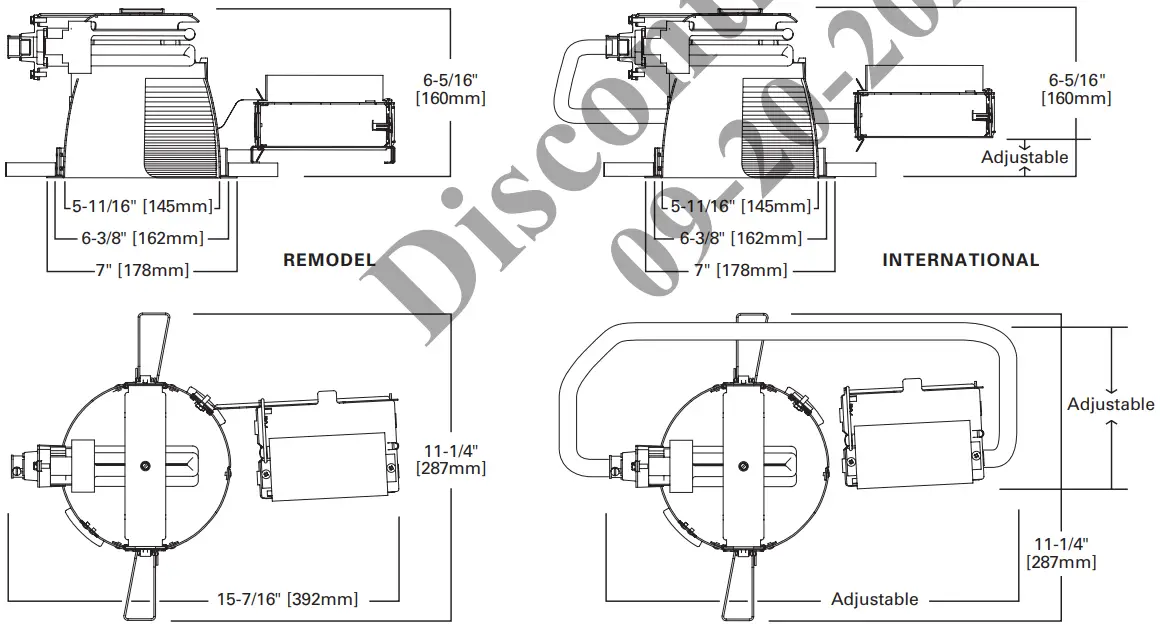

Dimension
ENERGY DATA
| 26W TTT 4-pin | ||
| Ballast: Electronic | ||
| 120V Input Watts: 29 | Line Amps: 0.25 | |
| 277V Input Watts: 26 | Line Amps: 0.09 | |
| Power Factor: >0.99 | THD: <90% | |
| Min. Starting Temperature: -10°C (15°F) | ||
| Sound Rating: Class A Standards | ||
| 32W TTT 4-pin | ||
| Ballast: Electronic | ||
| 120V Input Watts: 36 | Line Amps: 0.32 | |
| 277V Input Watts: 36 | Line Amps: 0.16 | |
| Power Factor: >0.99 | THD: <10% | |
| Min. Starting Temperature: -10°C (10°F) | ||
| Sound Rating: Class A Standards | ||
NOTES: Accessories should be ordered separately. For additional options, please consult your Cooper Lighting Solutions Representative. Alzak is a registered trademark of Aluminum Company of America.

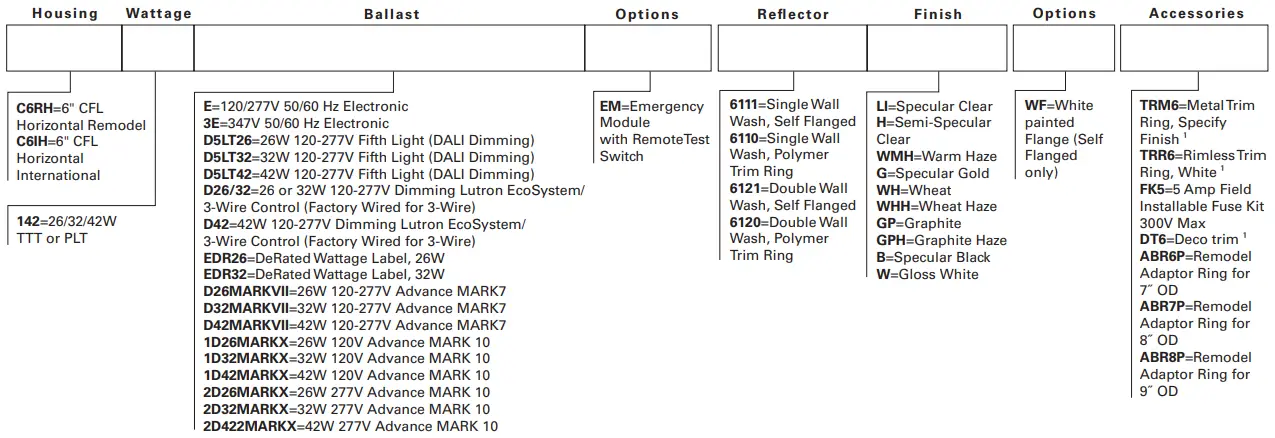

ORDERING INFORMATION
EXAMPLE: C6RH142ECP 6111LI WF=6″ CFL Horizontal Remodel Single Wall Wash, 42 Watt Triple Tube 120/277 Volt, Chicago Plenum, Self Flanged with Specular Clear Finish
Notes: 1 Order trim with polymer trim ring
(Consult specification sheet for ordering information and options).
PHOTOMETRICS

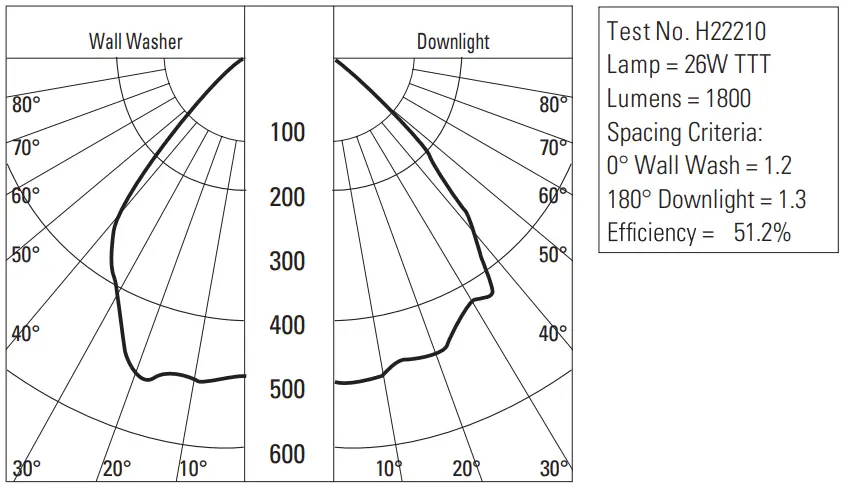

Candlepower Distribution Curve

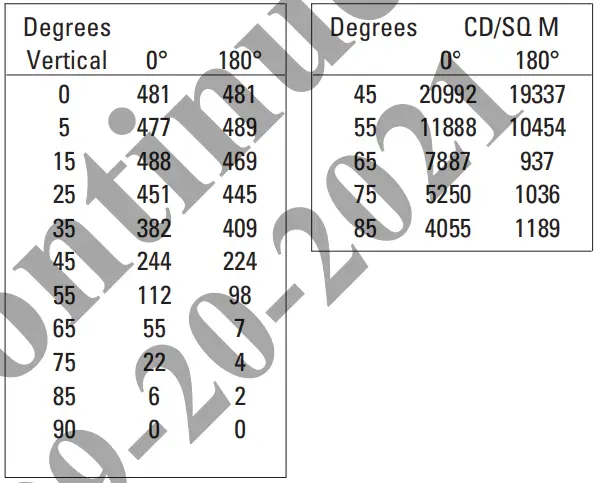

Candela Distribution/Luminance
Single Unit Foot-candles/ Multiple Unit Foot-candles
| 2’6″ from wall (distance from fixture along wall) | 2′ from wall (spacing between fixtures) | 2’6″ from wall (spacing between fixtures) | 3′ from wall (spacing between fixtures) | ||||||||||||||||||||||
| DD | 5 12 14 9 6 4 3 2 2 1 | 1′ 4 9 11 9 6 4 3 2 1 1 | 2′ 2 4 6 6 5 3 3 2 1 1 | 3′ 1 1 3 3 3 3 2 2 1 1 | 4′ 0 1 1 2 2 2 2 1 1 1 | 5′ 0 0 0 1 1 1 1 1 1 1 | 6′ 0 0 0 0 1 1 1 1 1 1 | 2′ | 4′ | 3′ | 4′ | 3′ | 4′ | ||||||||||||
| 1 | 16 | 14 | 16 | 11 | 4 | 11 | 7 | 6 | 7 | 6 | 3 | 6 | 4 | 4 | 4 | 3 | 3 | 3 | |||||||
| 2 | 33 | 32 | 33 | 22 | 11 | 22 | 14 | 13 | 14 | 13 | 7 | 13 | 9 | 8 | 9 | 8 | 6 | 8 | |||||||
| 3 | 32 | 34 | 32 | 19 | 14 | 19 | 20 | 18 | 20 | 16 | 13 | 16 | 15 | 14 | 15 | 11 | 10 | 11 | |||||||
| 4 | 24 | 24 | 24 | 13 | 14 | 13 | 16 | 18 | 16 | 13 | 13 | 13 | 15 | 16 | 15 | 12 | 11 | 12 | |||||||
| 5 | 17 | 18 | 17 | 10 | 10 | 10 | 14 | 13 | 14 | 10 | 11 | 10 | 13 | 13 | 13 | 10 | 11 | 10 | |||||||
| 6 | 12 | 12 | 12 | 8 | 7 | 8 | 10 | 10 | 10 | 8 | 8 | 8 | 11 | 11 | 11 | 8 | 8 | 8 | |||||||
| 7 | 8 | 9 | 8 | 6 | 6 | 6 | 8 | 8 | 8 | 7 | 6 | 7 | 8 | 9 | 8 | 7 | 7 | 7 | |||||||
| 8 | 6 | 6 | 6 | 4 | 4 | 4 | 6 | 6 | 6 | 5 | 5 | 5 | 7 | 7 | 7 | 6 | 6 | 6 | |||||||
| 9 | 4 | 5 | 4 | 3 | 3 | 3 | 5 | 5 | 5 | 4 | 4 | 4 | 5 | 5 | 5 | 4 | 5 | 4 | |||||||
| 10 | 3 | 3 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 | 4 | |||||||

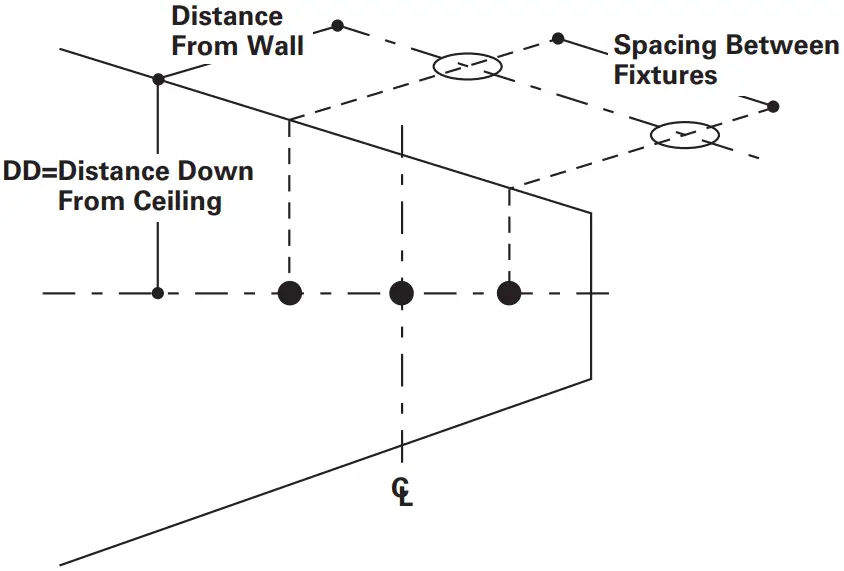

Notes:
- Illuminance values for multiple fixtures are based upon the center two units of a four unit array. Foot-candle values are centerline of fixtures and centered between fixtures.
- Illuminance values are cosine corrected initial values with no contribution from inter reflections from other room surfaces. Total illumination may increase from contributions from other surfaces.
- Changing fixture spacing will affect illuminance level.
New Fc= Existing Spacing
New Spacing x Average Table Fc Level
- When selecting colored cones option, only downlight cone is colored; the wall wash reflector is specular clear. This allows the color (CRI, °K) of the light source to be unaffected and maximizes lumen output.
Specifications and dimensions subject to change without notice.
