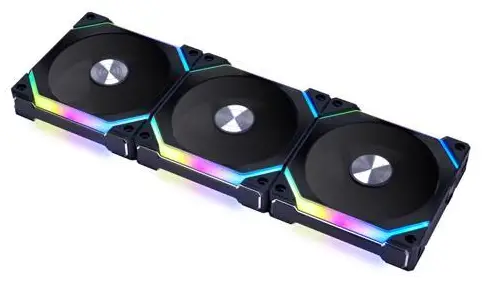

LIAN LI UF-SL120V2-3B RGB Black 3x 12cm Fan Pack with Controller
Package Contents

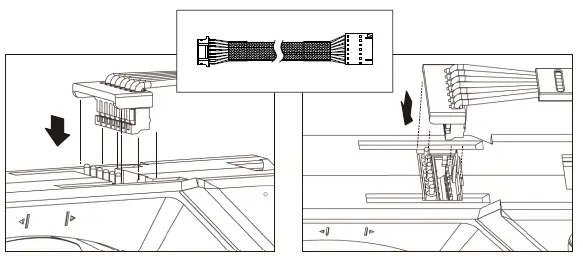

Power Cable Installation
Note
- The socket for the power cable modular is directional, which shall connect the male-female plug and cover the pins.
- The pulling connector mechanism is designed to not loosen easily.

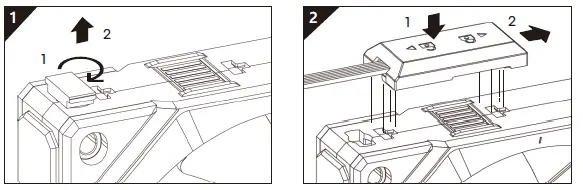

Fan to Fan Connection

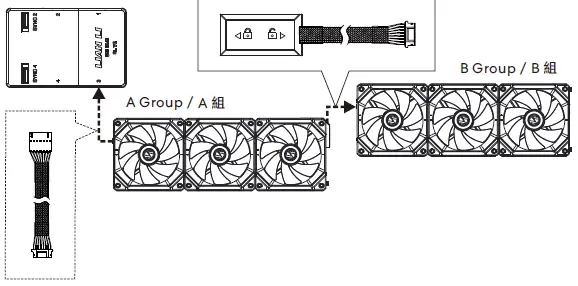

Daisy Chain Extension Cable Connection
Note! Each connector from the controller can connect maximum 6 fans, no limited quantity for Group A or B.

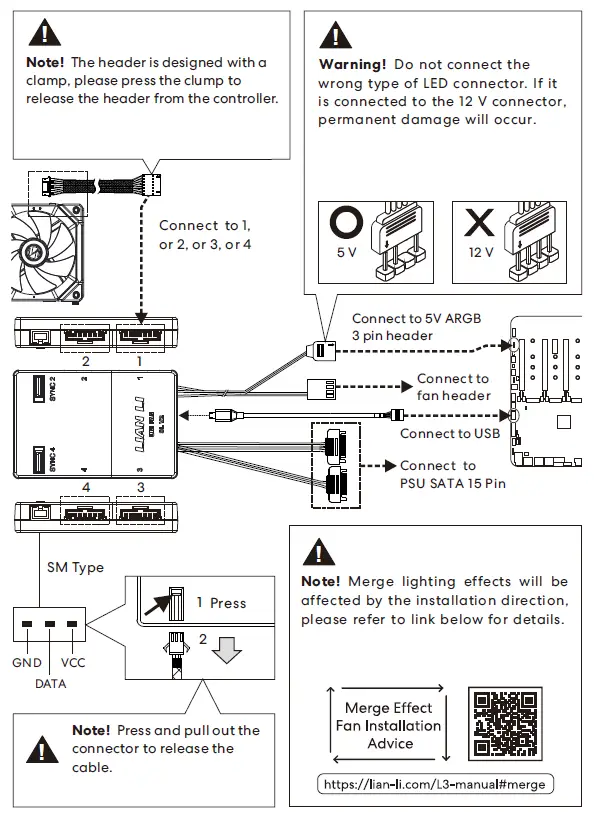

Controller Cable Connection

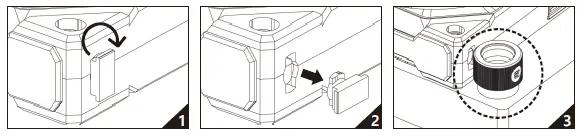

Fan Mounting on Raditor
Note
- The fan interlocking key is removable if it is affected by the ! radiator inlet and outlet.
- Implementing counterbore screw holes to fit standard long screws,do not use gaskets when mounting with long screws.
- Only use the screws(M5x10) that is included in the box, other screws may not hold the fan properly.

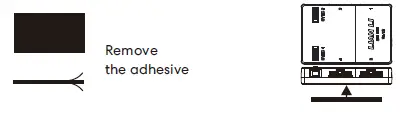

Use of Magnetic Adhesive Pad
Restriction of Controller
Maximum output of controller when connected BOTH SATA 15 PIN cable:
- The maximum total output of the controller supports up to 29 W, do not connect more than 16 fans to the controller.
- Use L-Connect 3 to set static white, please lower the brightness.
- When sync to motherboard and set as 100% brightness of static white, the controller supports up to 8 UNI FAN SL V2.
- Each SM type port supports up to 5 W.( SYNC 2 port syncs to the lighting effect of port 2; SYNC 4 port syncs to the lighting effect of port 4)．
