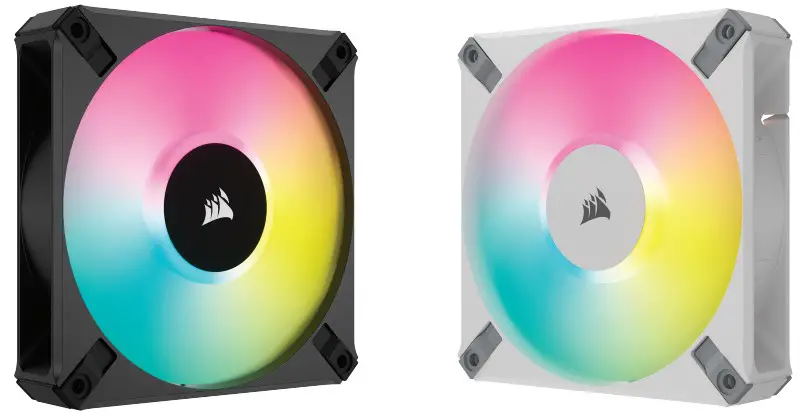

CORSAIR AF RGB ELITE Triple Fan Kit
REQUIRED HARDWARE

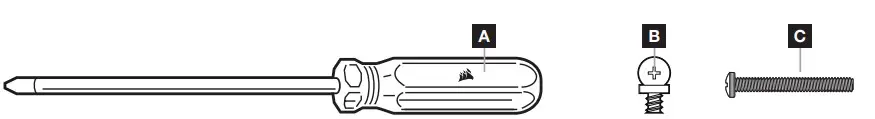

- PHILLIPS-HEAD SCREWDRIVER (not included in fan kit; sold separately)
- SHORT FAN MOUNTING SCREWS
- LONG FAN MOUNTING SCREWS (used when installing fans on a radiator; not included in fan kit; sold separately)
FAN INSTALLATION
- TURN OFF COMPUTER Turn your system off prior to installing your AF RGB ELITE fans and Lighting Node CORE.

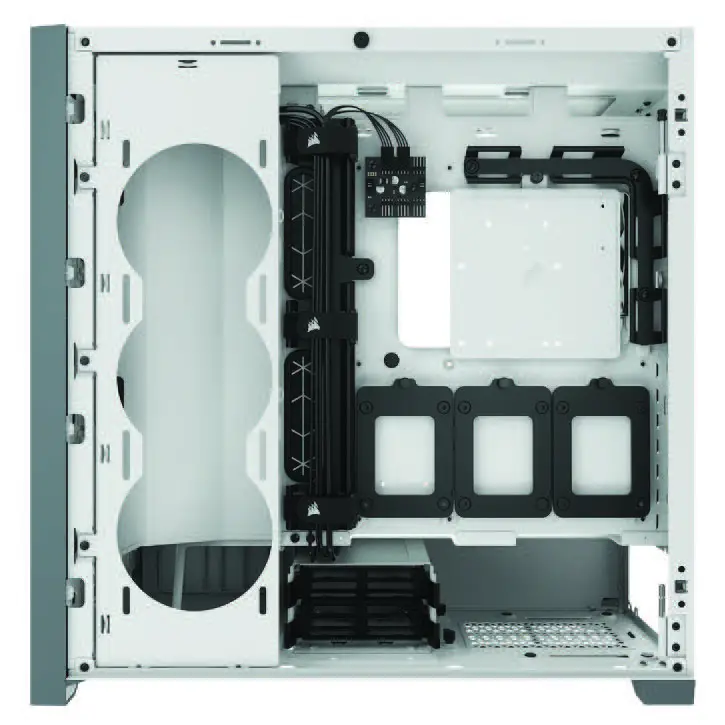

- MOUNT LIGHTING NODE CORE Find a location for the Lighting Node CORE that allows the fan RGB LED cables to reach the Lighting Node CORE, then mount it with the provided mounting strips.

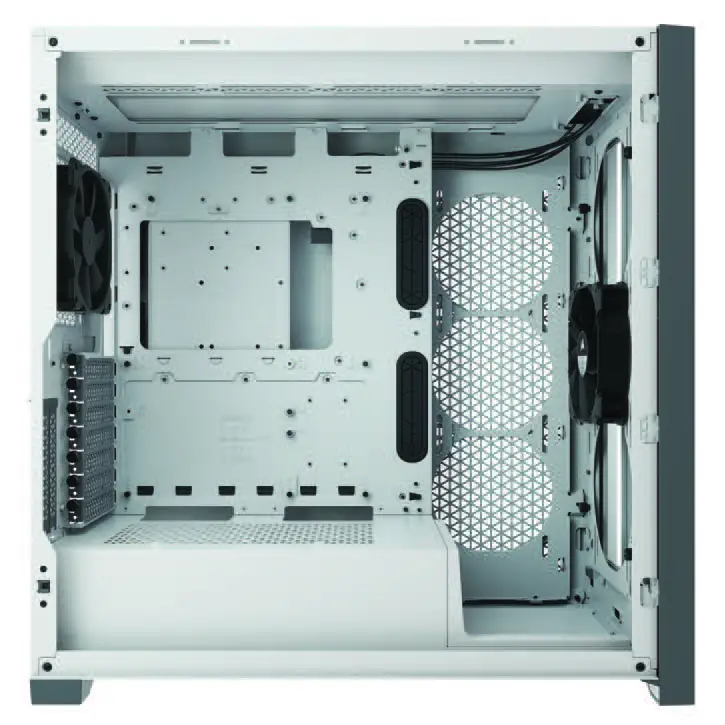

- MOUNT AF RGB ELITE Mount the fans inside your case with the provided mounting screws. Fan mount locations will vary depending on the case manufacturer.

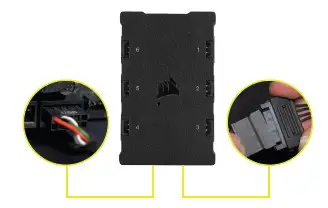

- CONNECT AF RGB ELITE Connect the 4-pin RGB connector into the Lighting Node CORE in sequential order from port #1 to port #6.
- CONNECT LIGHTING NODE CORE Plug the 9-pin USB cable from the Lighting Node CORE into an available internal USB 2.0 header on your motherboard or USB hub. Connect the SATA power connector to an available SATA connector from your power supply.
iCUE SETUP - INSTALL iCUE Click the image to download CORSAIR’s latest iCUE software.

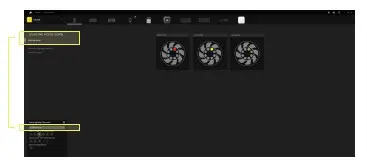

- CONFIGURE iCUE Once iCUE is installed, select the “8-LED Fan Series” in the Lighting Setup page under Lighting Node CORE
- ADDITIONAL SETUP Please visit our CORSAIR LAB for additional iCUE setup and configuration.
COMPATIBILITY

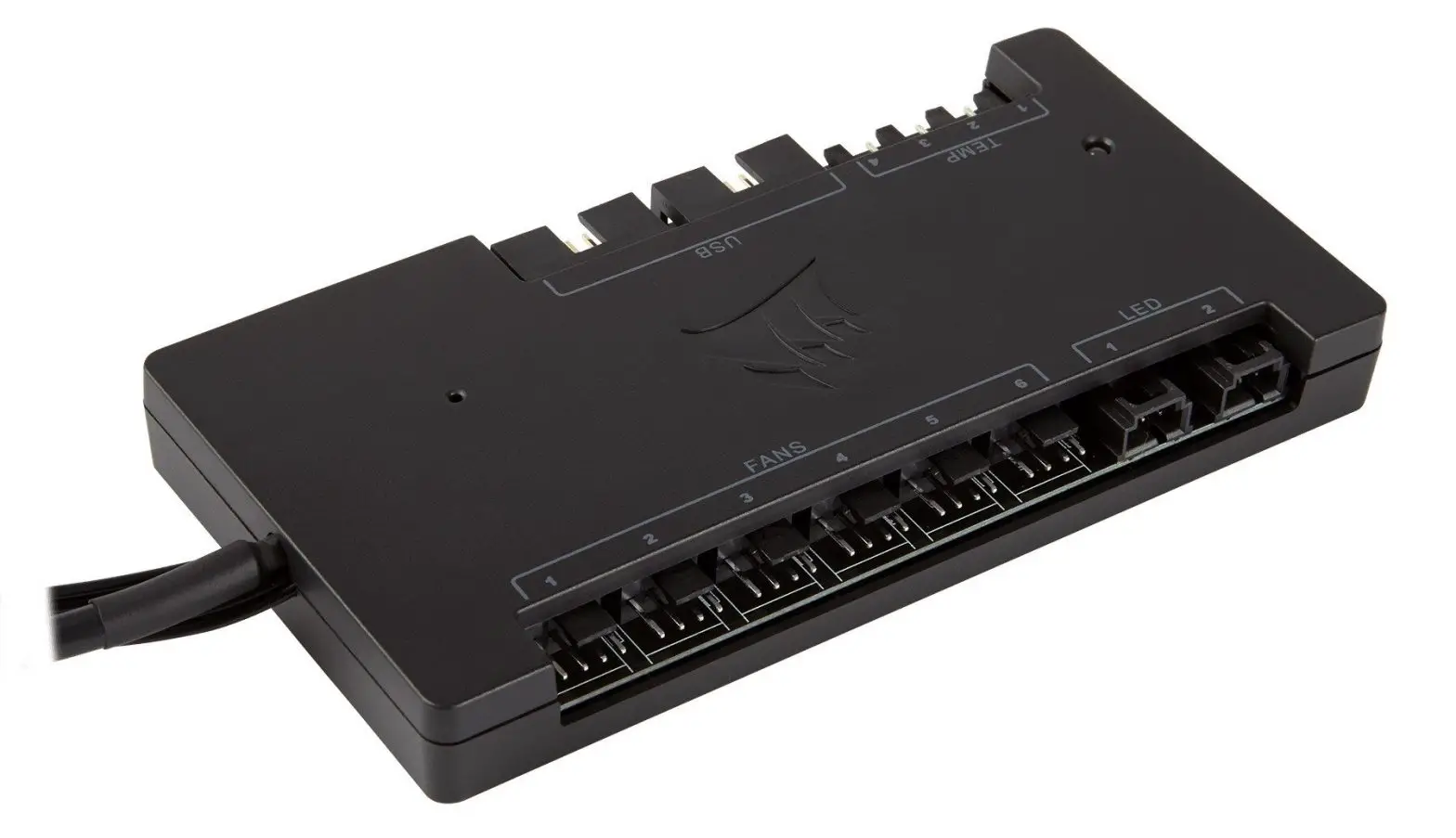

| LIGHTING NODE CORE | LIGHTING NODE PRO | COMMANDER PRO | COMMANDER CORE | COMMANDER CORE XT |
|
Up to 6x RGB fans, RGB Lighting Control only |
Up to 12x RGB fans, RGB Lighting Control only (requires RGB LED hub, sold separately) | Up to 12x RGB fans for RGB Lighting Control (requires RGB LED hub, sold separately) Up to 6x fans for fan speed control |
Up to 6x RGB fans for RGB Lighting and fan speed control | Up to 12x RGB fans for RGB Lighting Control (requires RGB LED hub, sold separately) Up to 6x fans for fan speed control |
