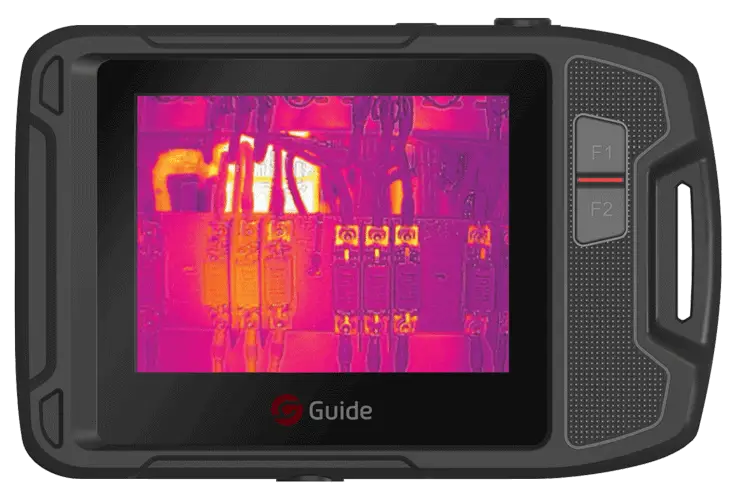

Guide Sensmart P120V P Series Pocket Sized Thermal Camera
Specifications
Building Diagnostics HVAC Inspection Facilities maintenance Electrical Application
P120V Pocket-sized Thermal Camera designed for electrical equipment maintenance and building inspection, which can fast detect the potential problems, report repair data and share images by Wi-Fi. It is a truly handy thermal camera that fits in your pockets for fast and accurate thermal inspections anytime. P120V featured with 3.5-inch LCD touchscreen for simple operation, and support picture-in-picture, smooth zoom, max and min temperature alarm, Cloud Service and more.
- -20℃-400℃ wide measurement range Auto switching between-20℃-150℃ and 150℃-400℃
- Reasonable Layout and Good Ergonomic Design No interfere between lens area and grip area
- 3.5” Touchscreen Display High-brightness LCD, 320 x 240 pixels
- Android Platform, Intelligent Operation User-friendly design based on Android system, which is as simple as using a smartphone.
- Wi-Fi connectivity , support Cloud Service Wi-Fi connectivity enabled for remote control and instant sharing. And support Cloud Album, you can back up the images to the Cloud in real-time.
| Model | P120V |
| IR image & Optical | |
| IR Resolution | 120×90 @17μm |
| Detector type | VOx/7.5~14μm |
| Frame Rate | 15HZ/9HZ |
| Thermal Sensitivity / NETD | 60 mk |
| Focal Length | 2.28mm/F1.13 |
| Field of view(FOV) | 50°×38° |
| Spatial Resolution(IFOV) | 7.6mrad |
| Focus | Focus-free |
| Visible Camera | |
| Visible Camera Resolution | 320×240, Focus-free |
| Flashlight | Yes（on/off/flash） |
| Image Display | |
| Display | 3.5″ LCD touchscreen display |
| Display Resolution | 320×240 |
| Image modes | IR, Visible, Picture-in-Picture, MIF |
| Color Palettes | 6:Hot Iron, Black Heat, Heat Iron, White Heat, Medical, Arctic |
| Digital zoom | Smooth zoon, up to 8X |
| Auto,Semi-automatic, Manual | |
| Temperature Measurement | |
| Measurement Range | -20℃-150℃，100℃-400℃（Auto switching） |
| Accuracy | ±2℃ or ±2%, whichever is greater ( target temp ≥0℃, ambient temp is 15℃ ~ 30℃ ) |
| Measurement Spot | Center spot，and can add one removable measurement spot |
| Measurement Area | Can add one removable area measurment box |
| Auto Max & Min Temp Tracking | Full screen auto max & min temp. tracking |
| Analysis target (area) max & min temp. tracking | |
| Full Screen Max & Min Temp. Alarm | Yes |
| Image Storage | |
| Storage Media | 4G Internal memory，at least 500 sets of images |
| IR Image Format | Full Radiometric (JPG) |
| Visible Image | Yes |
| Connections & Communications | |
| USB | Type-C, for image data transmission with PC |
| WIFI | Yes, Wi-Fi enabled for data transmission |
| Mobile APP | Yes，and support Cloud Service |
| PC IR Analysis Software | Yes |
| Power system | |
| Battery Tpye | Built-in rechargeable li-thium battery, non- removable |
| Battery Operating Time | ≥2 hours（when wifi-off） |
| Charging Time | ≤1.5 hours |
| Environmental parameters | |
| Operating Temperature | -10℃~50℃ |
| Storage Temperature | -40℃~70℃ |
| Encapsulation | IP54, 1-meter drop test |
| Certification | CE, FCC, ROHS |
| Weight | 240g |
| Size | 133mm*87mm*24mm |
| Standard Accessories | Charger + Adapter, TYPE-C USB cable, Wrist Strap, Pouch, Quick start Guide, Data Download Card |
Standard Accessories
