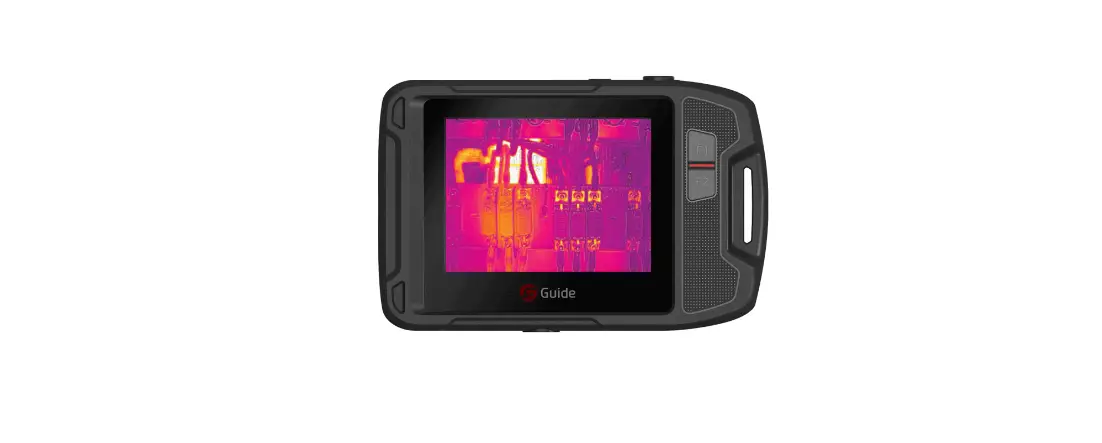

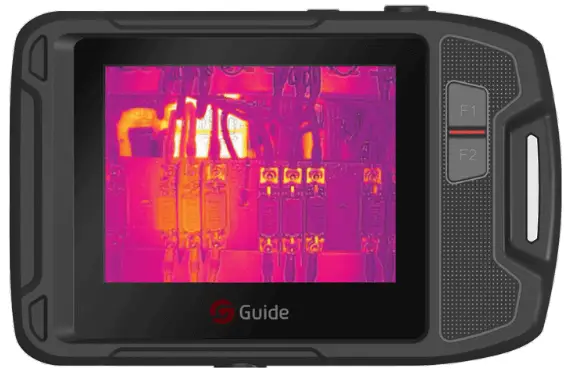

Guide sensmart P120V Pocket Thermal Imaging Camera Imager
Introduction
P120V Pocket-sized Thermal Camera designed for electrical equipment maintenance and building inspection, which can fast detect the potential problems, report repair data and share images by Wi-Fi. It is a truly handy thermal camera that fits in your pockets for fast and accurate thermal inspections anytime. P120V featured with 3.5-inch LCD touchscreen for simple operation, and support picture-in-picture, smooth zoom, max and min temperature alarm, Cloud Service and more.
Application
- Building Diagnostics
- HVAC Inspection
- Facilities maintenance
- Electrical Application
Features and Benefits
- -20℃-400℃ wide measurement range Auto switching between-20℃-150℃ and 100℃-400℃
- Reasonable Layout and Good Ergonomic Design No interfere between lens area and grip area
- 3.5” Touchscreen Display High-brightness LCD, 320 x 240 pixels
- Android Platform, Intelligent Operation User-friendly design based on Android system, which is as simple as using a smartphone.
- Wi-Fi connectivity , support Cloud Service Wi-Fi connectivity enabled for remote control and instant sharing. And support Cloud Album, you can back up the images to the Cloud in real-time.
Specifications
| Model | P120V |
| Imaging and optics | |
| Detector type | VOx |
| Infrared resolution | 120 × 90@17μm |
| Wavelength range | 7.5 to 14μm |
| Focal length | 2.28 mm |
| Field of view | 50° × 38° |
| Minimum object distance | 0.5 m |
| D:S | 130:1 |
| NETD | ≤60 mK |
| Infrared frame rate | 15 Hz / 9 Hz |
| Focusing mode | Focus-free |
| Digital zoom | 1.1x to 8x |
| Measurement and analysis | |
| Measurement range | Support auto-switching: -20°C to 150°C, 100°C to 400°C |
| Measurement accuracy | ±2°C or ±2%, whichever is greater |
| Analyzed target | Spot × 1, Area × 1 |
| Tracking / Alarm | Full screen maximum/minimum temperature tracking; The maximum or minimum temperature tracking of analyzed target; full screen temperature threshold alarm (image) |
| Temperature measuring parameters | Emissivity, reflected temperature, target distance |
| Image display | |
| Display screen | 3.5″ LCD |
| Digital camera | 0.3 MP |
| Image mode | IR, VIS, MIF and PIP |
| Image adjustment | Automatic, semi-automatic, manual |
| Color palettes | White Hot, Black Hot, Iron Red, Hot Iron, Medical, Arctic |
| Storage and transmission | |
| Storage media | Local storage (4 GB) |
| Image storage format | JPG with temp info |
| External interface | TYPE-C, UNC ¼”-20 (tripod mounting) |
| WIFI | Yes, it can be connected to the mobile terminal for image transmission |
| Power system | |
| Battery type | Rechargeable lithium-ion battery, non-removable |
| Battery working time | ≥2 hours |
| Power management | Timed shutdown and sleep mode |
| Charging mode | TYPE-C charging; PC/portable charger; Capable of charging while using |
| Charging time | 90% of full charge in 1.5 hours |
| Environmental parameters | |
| Working temperature | -10℃ to 50℃ |
| Storage temperature | -40℃ to 70℃ |
| IP rating | IP54 |
| Drop | 1m drop test |
| Certification | CE, FCC, ROHS, KCC, IP54, Damp heat test, Vibration test, Shock test, Impact test, UN38.3, MSDS |
| Physical parameters | |
| Weight | ≤240 g |
| Size (L × W × H) | 133.1mm×87.4mm×24.1mm |
| Software kit | Thermo Tools |
| Standard | A device, Wrist strap, Carrying bag, Quick Start Guide, Power adapter, Adapter plug, Type-C USB cable, Data download card, Certificate of approval |
| Options | Tripod |
Customer Support
Guide Sensmart Tech Co., Ltd.
Loeffelholzstrasse 20, Haus 12 Eingang Nord, 90441 Nuremberg, Germany
Email: [email protected]
*Technical parameters are subject to change without notice. For the latest information, please visit our website:
www.guideir.com
