T120 Series Entry Level Portable Thermal Camera

See the heat of 10,800 pixels in 1 second

Introduction

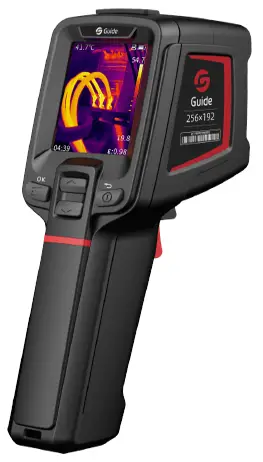

T Series Entry-level Thermal Image Camera is an affordable temperature measuring tool widely used for building diagnostics, HVAC inspections, electrical system inspections and more. It perfectly overcomes the shortcomings of the single spot infrared thermometers and helps work smarter, safer and faster. Equipped with Guide’s selfdeveloped 120×90 WLP IR modules, T120 series thermal cameras can display radiometric data of 10,800 pixels instantly which helps quickly detect large areas and pinpoint fault spots accurately.

Features and Benefits

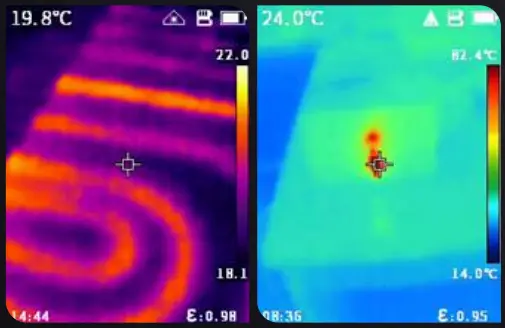

Boot-up in 1 second Boot up and display fully radiometric image instantly
Full screen max & min temperature alarm
2.4 inch Large Display
240×320 pixel Color LCD
Good-handle Buttons
Ergonomic design
Easy to operate even wear the gloves
8-hour Battery Life
Low power consumption
Large capacity battery
2-hour Quick Charge
USB Type-C Interface
High power quick charge
IR/Visible/Laser Indicator
Pinpoint targets precisely
Trigger Button
Trigger button for photo taking
Rugged Design
2-meter Drop Test, IP54 Encapsulation

Application

Building Diagnostics
HVAC Inspection
Facilities maintenance
Electrical Application

Specifications

Model	T120	T120V
Imaging and optics
Detector type	VOx
Infrared resolution	120 × 90@17μm
Wavelength range	7.5 to 14μm
Focal length	2.28 mm
Field of view	50° × 38°
Minimum object distance	0.5 m
D:S	130:1
NETD	≤60 mK
Infrared frame rate	25 Hz / 9 Hz
Focusing mode	Focus-free
Measurement and analysis
Measurement range	Support auto-switching: -20°C to 150°C, 100°C to 400°C
Measurement accuracy	±2°C or ±2%, whichever is greater
Analyzed target	Center spot and 3 areas
Tracking / Alarm	Full screen maximum/minimum temperature tracking; The maximum or minimum temperature tracking of analyzed target; full screen temperature threshold alarm (image)
Temperature measuring parameters	Emissivity, reflected temperature, target distance
Image display
Display screen	2.4″ LCD
Digital camera	/	70,000 pixels
Image mode	IR	IR, VIS and PIP
Image adjustment	Automatic
Color palettes	Iron Red, White Hot, Arctic, Rainbow 2, Hot Iron, Rainbow 1
Storage and transmission
Storage media	TF card (16 GB and up to 32 GB)
Image storage format	JPG with temp info
External interface	TYPE-C, TF card slot, UNC ¼”-20 (tripod mounting)
Laser	645~655nm, Class 2 laser, ＜1mW, only indicating the measured target
WIFI	/	Yes, it can be connected to the mobile terminal for image transmission
Power system
Battery type	Rechargeable lithium-ion battery, non-removable
Battery working time	≥8 hours	≥5 hours
Power management	Timed shutdown and sleep mode
Charging mode	TYPE-C charging; PC/portable charger; Capable of charging while using
Charging time	90% of full charge in 2.5 hours
Environmental parameters
Working temperature	-10℃ to 50℃
Storage temperature	-40℃ to 70℃
IP rating	IP54
Drop	2m drop test
Certification	CE, FCC, ROHS, KCC, IP54, 2m drop test, Damp heat test, Vibration test, Shock test, Impact test, UN38.3, MSDS
Physical parameters
Weight	≤350 g
Size (L × W × H)	194 × 61.5 × 76 mm
Software kit	ThermoTools
Standard	A device, Wrist strap, Quick Start Guide, Power adapter, Adapter plug, Type-C USB cable, Data download card, TF card (16 GB), Certificate of approval
Options	Tripod
