D Series Intelligent
Thermal Camera
Intelligent Operation Affordable Price
Introduction
D Series intelligent thermal camera is simple, compact and ergonomic. It equipped with 4-inch high-brightness touchscreen, Android operating system, user-friendly UI for easy operation. And every step has professional tips, so that the first user can become an expert quickly. With high IR resolution and various powerful functions, D series is the ideal thermal inspection tool for power inspection, equipment maintenance and building diagnostic applications.
Features and Benefits
- 4” high light touch screen, all operation can be completed the touch screen
- You can choose the proper lens for different occasions
- Built-in illuminator, take visible photos in the low lighting environment
- Removable SD card, Up to 32G storage capacity
- Wi-Fi communication, share IR images and findings immed
- Connected with mobile terminal to take IR photo, to achievmulti screen control

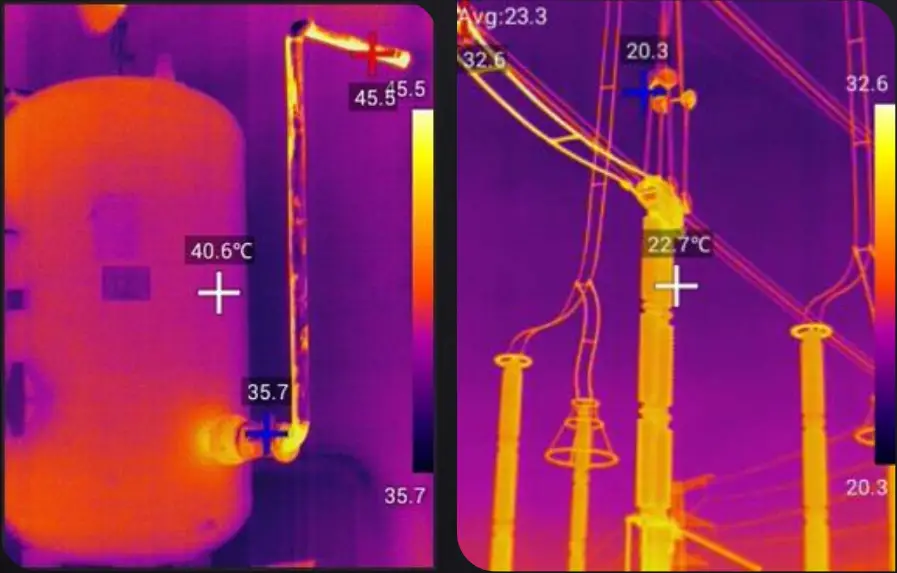

Application
- Mechanical maintenance
- Building diagnostic
- Telecom equipment inspection
- Electrical equipment inspection
Specifications
| Model | D192F | D192M | D384F | D384M | D384A |
| Imaging and optics | |||||
| Detector type | VOx | ||||
| Infrared resolution | 192 × 144@25μm | 384 × 288@25μm | |||
| Super resolution technology | / | Yes, Upgrade to 768 × 576 | |||
| Wavelength range | 7.5 to 14μm | ||||
| Focal length | 7 mm | 19 mm | 15 mm | ||
| Field of view | 38° × 29° | 28° × 22° | 35° × 27° | ||
| Minimum object distance | 1 m | 0.5 m | 1 m | 0.5 m | 0.4 m |
| D:S | 289:1 | 775:1 | 625:1 | ||
| NETD | ≤50 mK | ≤45 mK | ≤40 mK | ||
| Infrared frame rate | 25 Hz / 9 Hz | ||||
| Focusing mode | Focus-free | Manual | Focus-free | Manual | Electric / Automatic |
| Digital zoom | 1.1x to 4x | ||||
| Shot recognition | / | Manual | / | Manual | / |
| Measurement and analysis | |||||
| Measurement range | -20℃ to 350℃ | -20℃ to 150℃, 100℃ to 650℃, Optional 650℃ to 1500℃ (High temperature lens is required) | -20℃ to 350℃ | -20℃ to 150℃, 100℃ to 650℃, Optional 650℃ to 1500℃ (High temperature lens is required) | -20℃ to 150℃, 100℃ to 650℃ |
| Measurement accuracy | ±2°C or ±2%, whichever is greater | ||||
| Analyzed target | Spot × 5, Line × 2, Area × 5 | ||||
| Tracking / Alarm | Full screen maximum, minimum and average temperature tracking; The maximum, minimum and average temperature tracking of analyzed target; full screen temperature threshold alarm (image) | ||||
| Isothermals | Available | ||||
| Temperature measuring parameters | Emissivity, reflected temperature, dew point, target distance, humidity | ||||
| Image display | |||||
| Display screen | 4″ LCD | ||||
| Digital camera | 5 MP | ||||
| Image mode | IR, VIS, MIF and PIP | ||||
| Image adjustment | Automatic, semi-automatic, manual | ||||
| Color palettes | White Hot, Fulgurite, Iron Red, Hot Iron, Medical, Arctic, Rainbow 1, Rainbow 2 | ||||
| Storage and transmission | |||||
| Storage media | Local storage (16 GB) and TF card (16 GB and up to 128 GB) | ||||
| Image storage format | JPG with temp info | ||||
| Video storage without temperature information | Mp4 format can be used to record audio synchronously | ||||
| Video storage with temperature information | Irgd for temperature analysis | ||||
| External interface | Micro USB, Micro HDMI, DC (12V) , TF card slot | ||||
| Laser | 645~655nm, Class 2 laser, ＜1mW, only indicating the measured target | ||||
| Audio | Recording and playback through microphones and speakers respectively | ||||
| WIFI | Yes, it can be connected to the mobile terminal for image and real-time video transmission | ||||
| Bluetooth | / | Available | |||
| Power system | |||||
| Battery type | Lithium-ion rechargeable battery | ||||
| Battery working time | ≥4 hours | ||||
| Power management | Timed shutdown and sleep mode | ||||
| Charging mode | The device can be charged through desktop charger after shutdown. | ||||
| Charging time | 5 hours | ||||
| Environmental parameters | |||||
| Working temperature | -10℃ to 50℃ | ||||
| Storage temperature | -40℃ to 70℃ | ||||
| IP rating | IP54 | ||||
| Certification | CE, FCC, ROHS, KCC, Anatel, UN38.3, MSDS | ||||
| Physical parameters | |||||
| Weight | ≤735 g (with battery) | ≤840 g (with battery) | ≤735 g (with battery) | ≤840 g (with battery) | ≤735 g (with battery) |
| Size (L × W × H) | 274 × 97 × 78 mm | 274 × 110 × 78 mm | 274 × 91 × 78 mm | ||
| Software kit | ThermoTools | ||||
| Standard | A device, Wrist strap, Lithium-ion battery, Power adapter, Adapter plug, Micro USB cable, Micro HDMI cable, Quick Start Guide, Instructions, Data download card, Capacitive screen gloves, TF card (16 GB) , EPP case | A device, Wrist strap, Lithium-ion battery, Power adapter, Adapter plug, Micro USB cable, Micro HDMI cable, Quick Start Guide, Instructions, Data download card, Capacitive screen gloves, TF card (16 GB) , A carrying case | |||
| Options | Lithium-ion battery, Carrying bag, Desktop charger, Tripod interface, Tripod, Sunshade | Lithium-ion battery, Carrying bag, Desktop charger, Tripod interface, Tripod, Sunshade, Expanded lens | Lithium-ion battery, Carrying bag, Desktop charger, Tripod interface, Tripod, Sunshade | Lithium-ion battery, Carrying bag, Desktop charger, Tripod interface, Tripod, Sunshade, Expanded lens | Lithium-ion battery, Carrying bag, Desktop charger, Tripod interface, Tripod, Sunshade, Bluetooth headset |
Optional lens information list
| Model | D192M | D384M |
| Standard Lens | ||
| Focal length | 7mm | 19mm |
| FOV | 38°*29° | 28°×22° |
| IFOV | 3.45mrad | 1.29mrad |
| Min focus distance | 0.5m | 0.5m |
| Wide Angle | ||
| Focal length | / | 8.8mm |
| FOV | / | 57°×45° |
| IFOV | / | 2.65mrad |
| Min focus distance | / | 0.3m |
| Ultra-Telephoto | ||
| Focal length | 19mm | 40mm |
| FOV | 14.4°×10.8° | 13.7°×10.3° |
| IFOV | 0.65mrad | 0.62mrad |
| Min focus distance | 1m | 1m |
| High Temp | ||
| Temp Measurement Range | 650°C~1500°C | |
Guide Sensmart Tech Co., Ltd.
Loeffelholzstrasse 20, Haus 12 Eingang Nord, 90441 Nuremberg, Germany
Email: [email protected]
*Technical parameters are subject to change without notice.
