Thermal Expert Te-sq1 Portable Thermal Imaging Camera User Manual (+ PDF)

TE-SQ1 is a portable thermal imaging camera that combines a micro-bolometer IR sensor (320×240, 12µm pixel pitch) and a visible sensor. TE-SQ1 applied with Android 8 version and 5-inch large display can take both thermal images and visible images at the same time and can share images through Wi-Fi communication. Using the Analysis tool in SQ1, users can generate and submit reports immediately, and analysis software for Windows OS will be provided as well.

Product Specification

TE-SQ1

Specification			TE SQ
Major Specification	Detector type		Micro-Bolometer (uncooled)
	Array format and Pitch		320×240, 12pm
	Thermal sensitivity(NETD)		55mK / F*1.0, (20°C-30°C)
	Operability(Based on death)		99.%
	Spectral range		7.5 – 14pm
	Lens Spec.		Focal Length 5.7mm, f/1.1, Manual Focus
	Field Of View		38°(-I) x 29°(V) – 47°(V)
	Visible sensor		3MP
	Frame rate	Standard	<9Hz
		Performance	Equal to or Above 15Hz
	Display		5′ Display
Temperature Measurement	Scene Range Temperature		Maximum 350°C, Minimum -40°C -40 – 100°C, 100 – 350°C
	Temperature accuracy		Target object Temperature 20 – 60°C: ± 2°C 0-20°C, 60 – 350°C: -±3°C or ± 3%
	Measurement Function		The point, Line, Rectangle, Maximum/Minimum
	Measurement correction		Emissivity Correction
Additional Function	LED Flash		LED Flash
	Laser Pointer		Laser Pointer for targeting
	WiFi		802.
	Storage		Internal 32GB, Micro SD Card port Supported
	Tripod Mount		Supported
	Colormap		12 colors Supported
Physical Specification	Size		34mm x 38mm x 24.5mm
	Weigh		375g
Power	Battery Type		Built-in rechargeable Li-ion Battery, 4200mA
	Battery Life		3hours
	Charging Time		3hours
	Charging Device		5V DC Power charger, USB-C cable included

Durability	Impact Test	IEC 60068-2-29
	Vibration Test	IEC 60068-2-6
	Storage Temperature	-20 – 60°C
	Operating Temperature	-10 – 50°C
	IP Code	IP54

1) Temperature accuracy can be further calibrated through blackbody and software processing

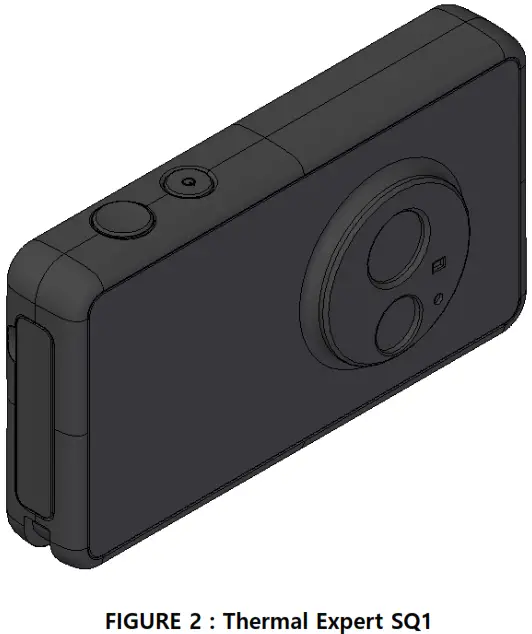

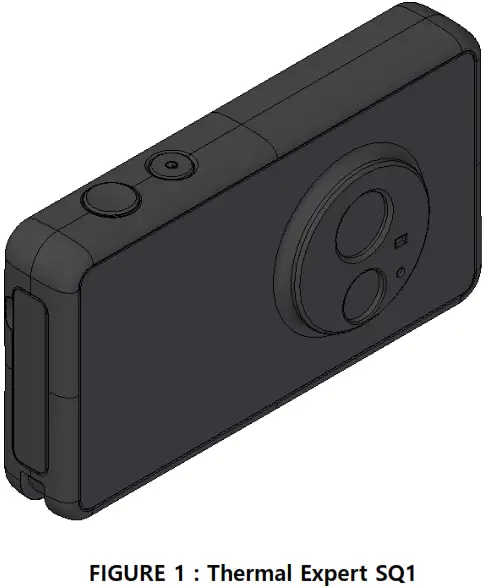

Product image

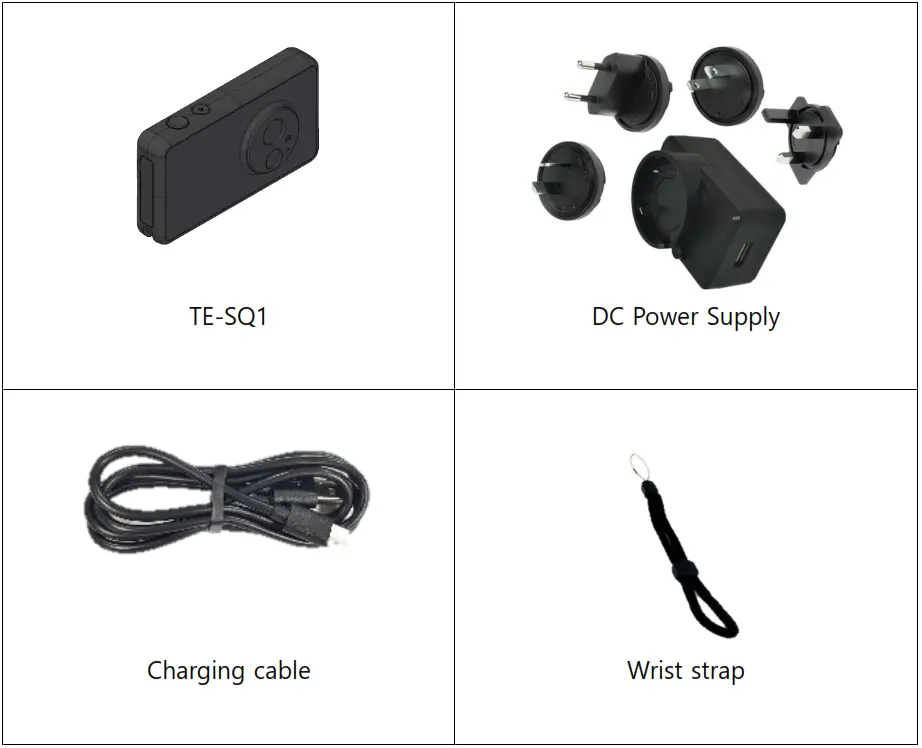

Items in the box

Item in the box

TE-SQ1 Product User Guide

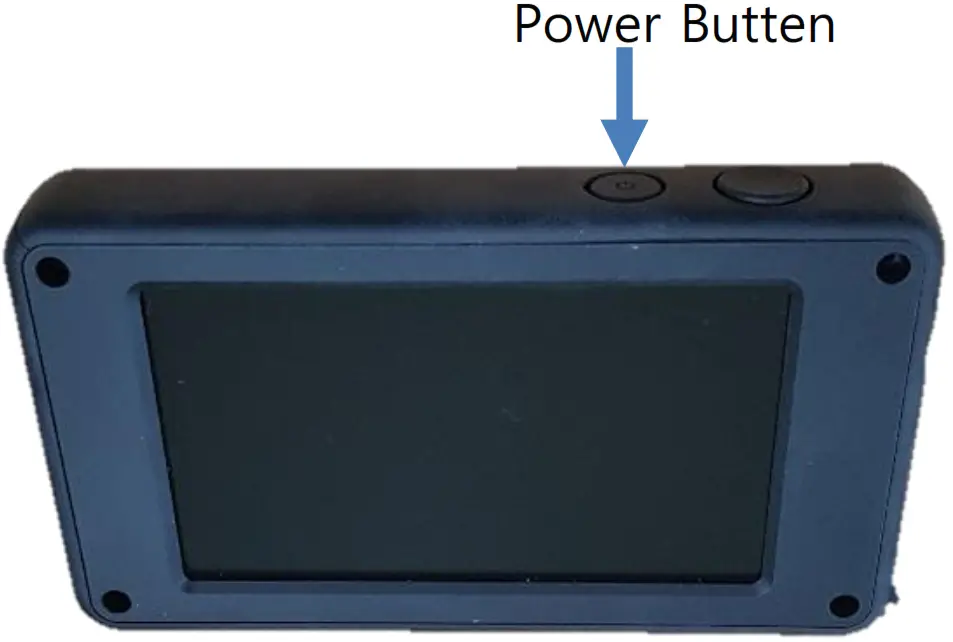

Hold Power Button for 2~3 seconds to turn on the Camera

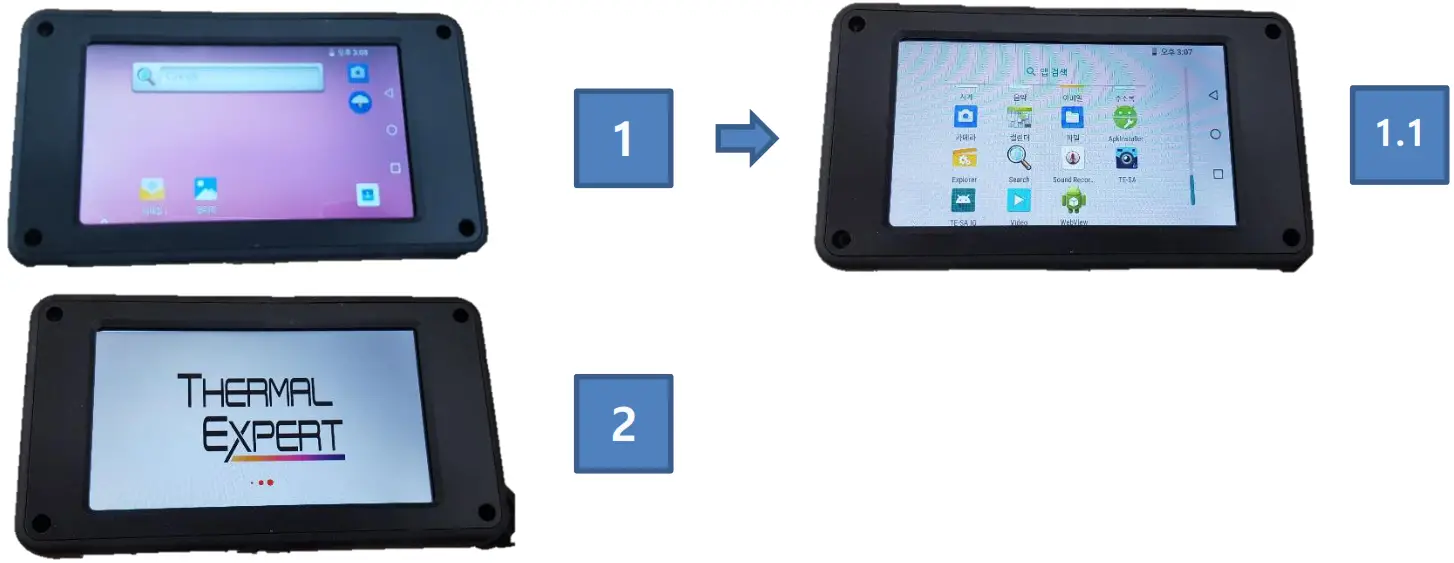

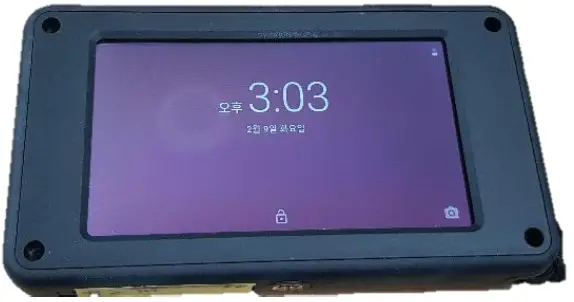

As soon as the camera is turned on, the device will show a lock screen as it is above.
Unlock the device and open the TE-SA application on the app menu

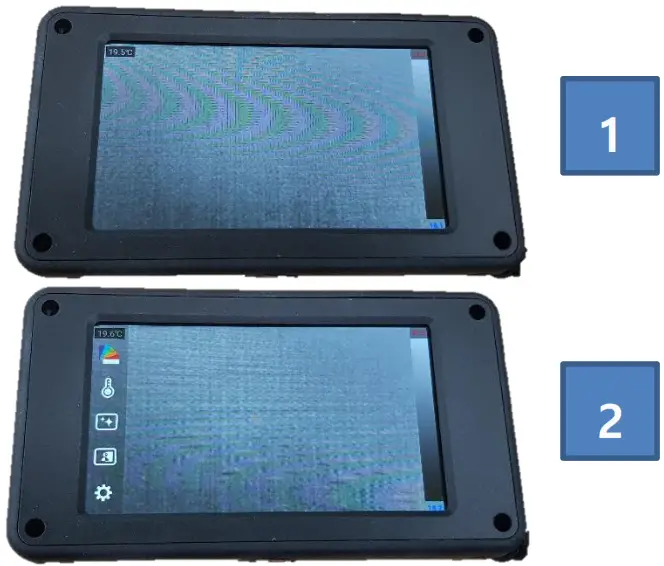

3.1 As soon as the app is opened, Image #2 will be on the display.

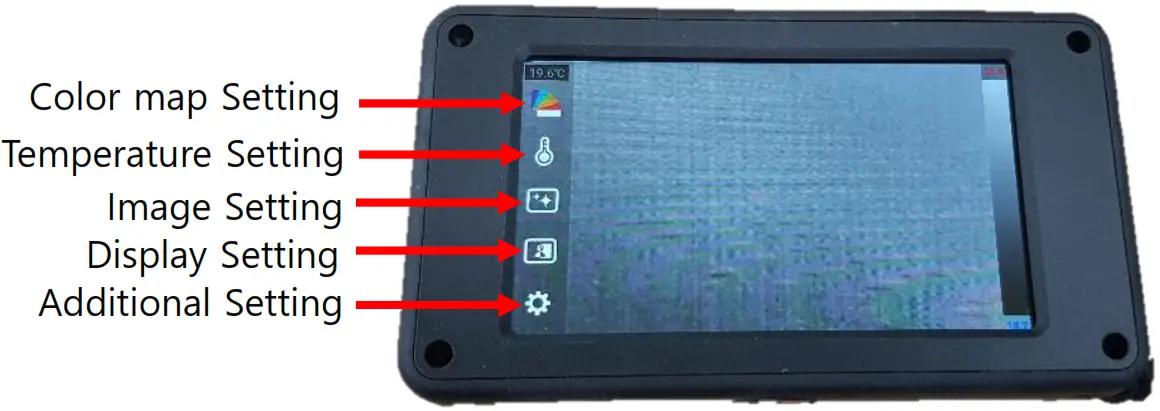

When the app runs, an IR image is on the display. When you click the screen once, the product menu appears on the left side of the screen

Cautions

Cautions for the product

6.1.1 To prevent damage to the product, do not drop or attempt to impact the product.
6.1.2 Do not put pressure on the infrared lens as the lens may break.
6.1.3 Be careful not to damage the coating on the infrared lens
6.1.4 Do not expose the product to high-temperature environments or heat sources such as the sun, laser, etc. – When exposed to heat sources, the thermal sensor inside the product may get damaged or the thermal image quality may get degraded.
6.1.5 Always operate the product in the specified operating temperature range. Failure to use the product within the specified operating temperature range may result in damage to the thermal sensor and electronic parts of the product.
6.1.6 Do not expose the product to water, rain, dust, etc. as the product is IP54 rated.
6.1.7 Do not use compressed air for cleaning.
6.1.8 To charge the product, connect only the 5V DC power to the USB Connector. Using other types of power may cause damage to the product.
6.1.9 This product does not support Bluetooth Communication.

Warranty

TE-SQ1 is a thermal imaging camera designed for thermography, and when using it for other purposes, prior consultation with the manufacturer is required. The warranty period is 12 months and begins on the date of shipment. Product issues occurring within the warranty period will be repaired or replaced free of charge. However, damages caused by the user’s negligence, physical impact on the product, or disassembly of the product are not covered by the free repair, and in this case, a certain amount of cost can be charged to the user according to the manufacturer’s internal RMA policy even within the warranty period.
