Hikmicro Pocket2 Compact Thermal Imaging Camera Instructions (+ PDF)

Pocket2 Compact Thermal Imaging Camera
Instructions

Contents hide

1 Pocket2 Compact Thermal Imaging Camera

2 Introduction

3 Applications

4 Specifications

5 Documents / Resources

6 Related Posts

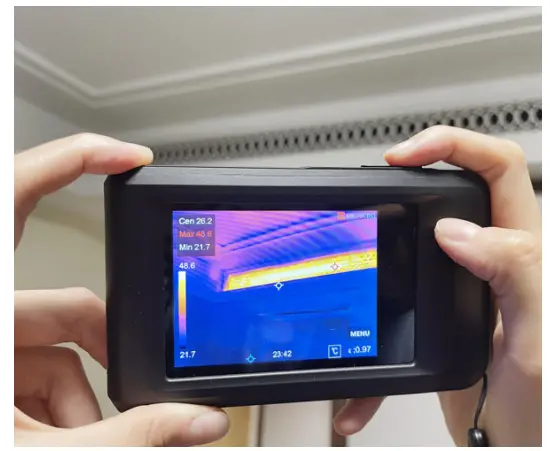

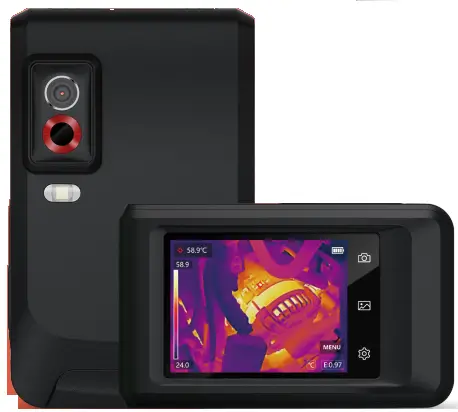

Pocket2 Compact Thermal Imaging Camera

Pocket Series
Pocket2 & Pocket1
High Performance
Compact Thermal Imaging
Camera for Professionals

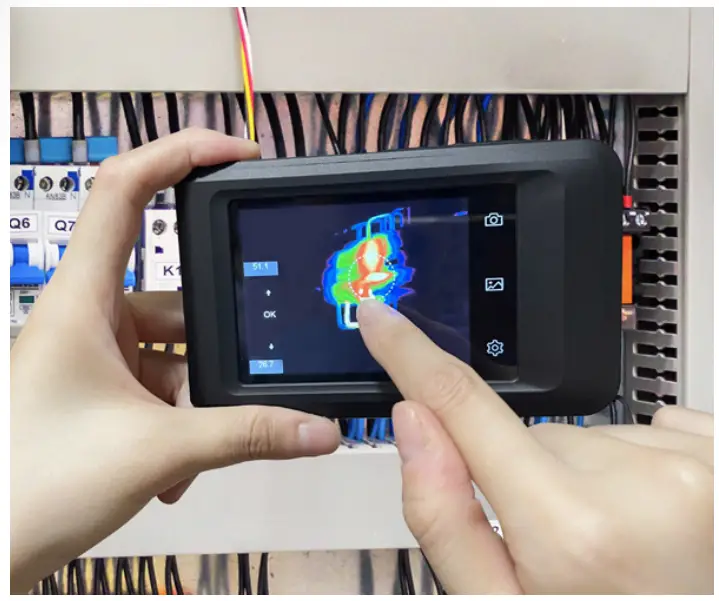

Multiple Level & Span ModesThree Level & Span modes (manual, automatic, and 1-Tap) help you instantly improve image contrast and highlight potential problems.
Faster Troubleshooting
The built-in speakers and flashlight give the operator audio and visual alerts to high temperatures. Full-screen measurement using different user presets checks everywhere instantly.
Portable Pocket-sized Design

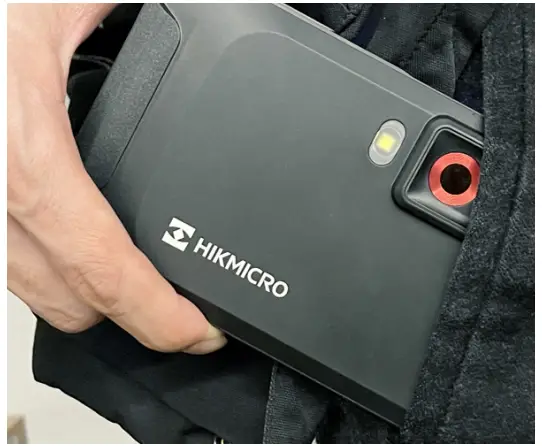

Easy to carry and hold. It fits perfectly in your pocket and tool bag.
Rugged & Durable Design

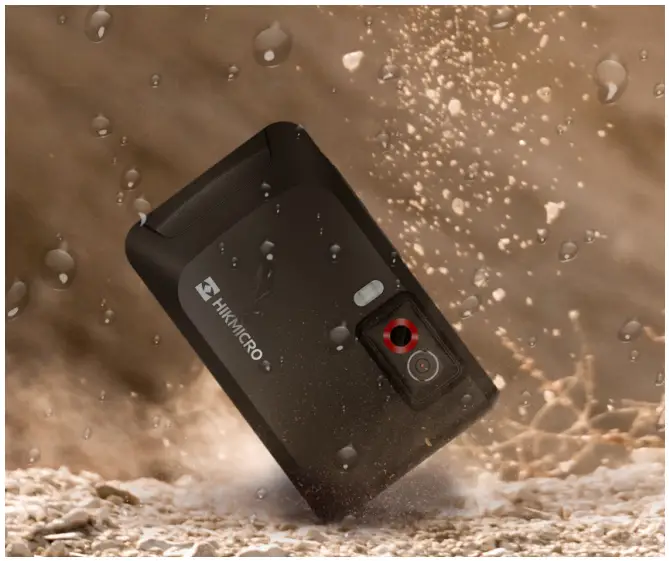

IP54 is rated for protection against water and dust. Featuring 2-meter (6.6ft) drop protection, suitable for industrial use.
LED Flashlight

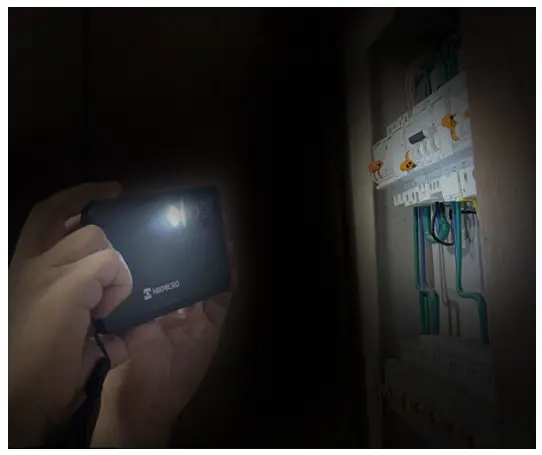

The LED flashlight allows you to work safely in dim or dark environments.
On-camera Recording

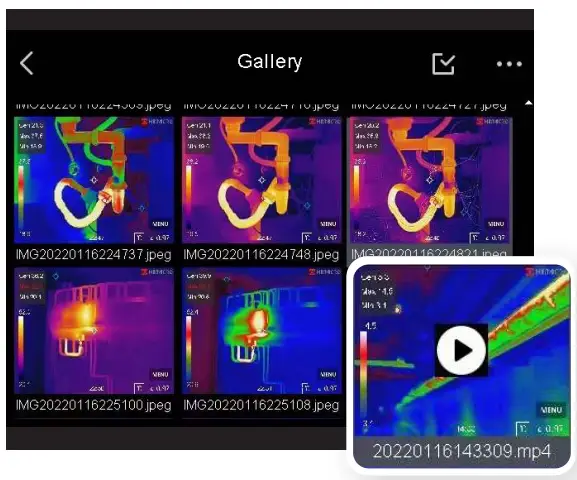

Built-in 16GB internal memory provides onboard recording and playback.

Introduction

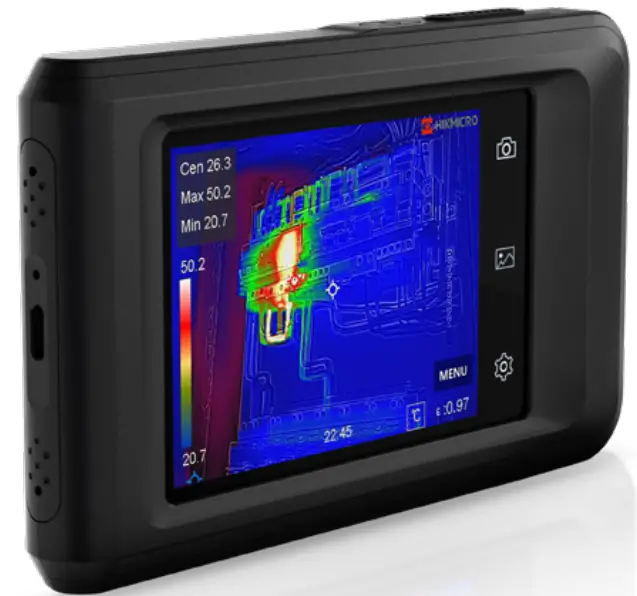

HIKMICRO Pocket Series is equipped with a high-resolution HIKMICRO VOx detector, an 8 MP optical camera, and a 3.5” LCD touch screen. It helps you quickly and efficiently locate hidden problems and accurately measure abnormal temperatures. The wide temperature range of -20°C to 400°C is ideal for building inspection, HVAC, electrical, and mechanical equipment maintenance. The 25 Hz frame rate keeps up with fast inspections, and the Wi-Fi function allows the Pocket to share images in real-time. The Pocket Series is a powerful thermography tool in your pocket, so it is always there whenever you need it.

Applications

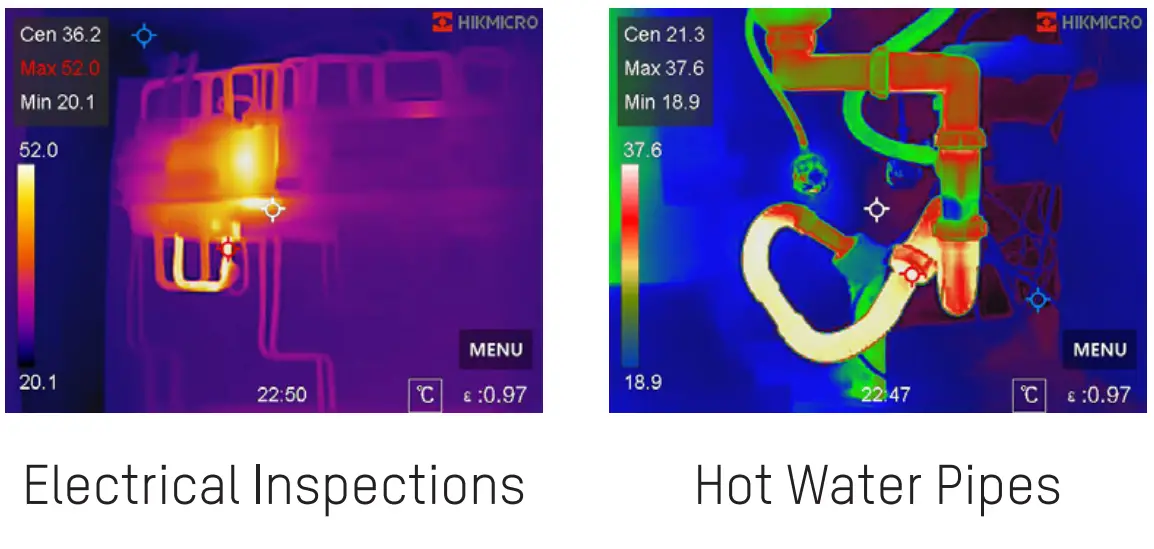

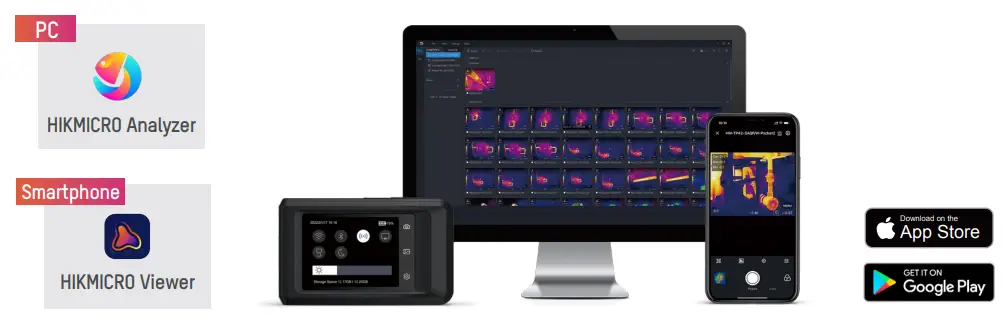

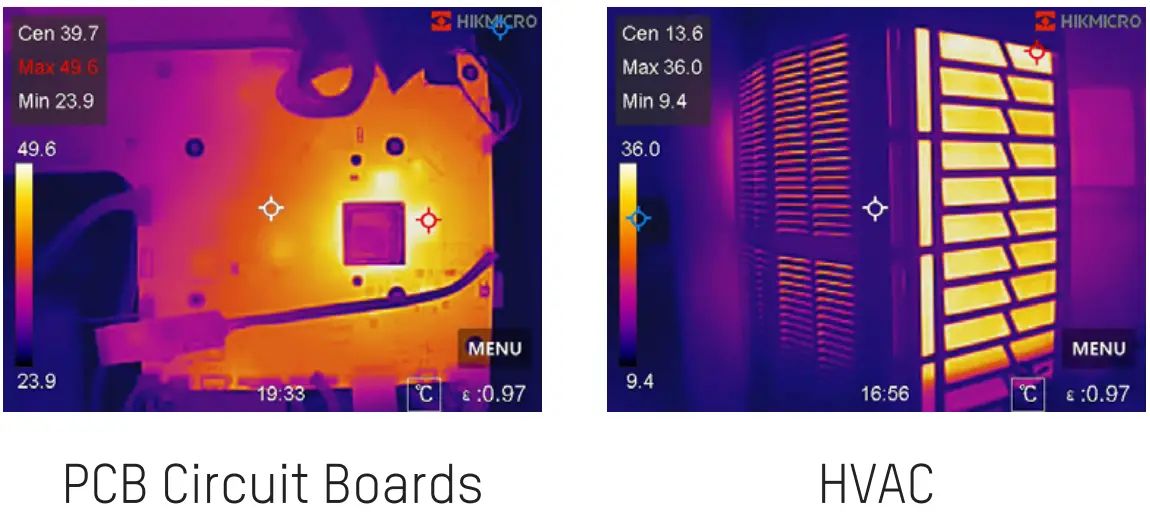

Connect (Wi-Fi or Hotspot) to the HIKMICRO Viewer App for transmitting pictures from the camera to a mobile phone. Analyze, share images and generate simple reports in real-time on-site. Use HIKMICRO Analyzer PC software to provide customers with professional reports with images documenting problems and repairs.

Specifications

Thermal Module		Pocket2	Pocket1
	Image Sensor	Vanadium Oxide Uncooled Focal Plane Arrays
	IR Resolution	256 x 192 (49,152 pixels)	192 X 144 (27,648 pixels)
	NEED	< 0.04°C (40 mK) at 25°C (77°F) Ambient Temperature, F#=1.0
	Focal Length	3.5 mm
	FOV (Field of View)	50.0 °H × 37.2 °V	37.5 °H × 28 °V
	Image Frequency	25 Hz
	Focus	Fixed
	IFOV (Spatial Resolution)	3.43 mrad
Optical Module	Picture Resolution	Configurable: 2 MP, 5 MP, 8 MP
Image Display	Display	640 × 480 Resolution, 3.5’’ LCD Touch Screen
	Color Palettes	7: White Hot, Black Hot, Rainbow, Rainbow, Red Hot, Fusion, Rain
	Image Modes	Thermal/Optical/Fusion/PIP
Measurement and Analysis	Object Temperature Range	-20 °C to 400 °C ( -4 °F to 752 °F )
	Accuracy	Max (±2°C/3.6°F, ±2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)
	Measurement Presets	Center Spot, Hot Spot, Cold Spot, Off
	High-Temperature Alarm	Audible/visual alarm of above temperature threshold, User-defined temperature threshold
Storage	Storage Media	EMMC (16 GB)
	Image Storage Capacity	Approx. 60,000 Images
	Image File Format	Radiometric.JPEG with Measurement Data Included
	Text Note	Max. 200 Characters
	Video Storage Capacity	Approx. 10 h
	Video File Format	Standard MP4 Non-radiometric video
Functions	LED Light	Yes
	Microphone	Yes
	Buzzer	Yes
	Wi-Fi	802.11 b/g/n (2.4 GHz, 5 GHz)
	Bluetooth	Bluetooth 4.2
	Connect with APP	Yes, HIKMICRO Viewer
	Level/Span	Auto/Manual/1-Tap Touch Screen
Power System	Battery Operating Time	4 Hours Continuous Running
General	Menu Language	21 Languages
	Protection Level	IP54
	Drop Test Height	2 m (6.56 ft)
	Weight	Approx. 218 g (0.48 lb)
	Packing List	Thermal Imager x 1, Pouch x 1, Wrist Strap x 1, USB Cable x 1, Power Supply x 1, Quick Start Guide x 1, Calibration Cetificate x 1
