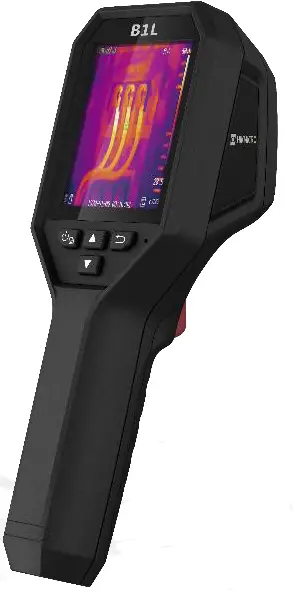

HIKMICRO HM-TP51-3AXF Handheld Thermography Camera
HIKMICRO HM-TP51-3AXF/W-B1L is designed for temperature measurement to find invisible faults. It’s equipped with a 160 × 120 resolution HIKMICRO thermal detector. The thermography ranges from -20°C to 550°C (-4°F to 1022°F). Which meets most situations. It helps the staff to quickly find the fault according to accurate temperature measurement of high temperature targets in the environment. Meanwhile, it provides assistant decision and ensure safety. The device is mainly applied to various industries, such as building, HVAC, and auto industry.
Key Features
- Thermal resolution: 160 × 120 (19,200 pixels)
- NETD: < 40 mK (@ 25°C,F# = 1.0)
- Temperature measurement range : -20°C to 550°C (-4°F to 1022°F）
- Accuracy: Max. (± 2°C/3.6°F, ± 2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)
- Measurement Presets: Center spot, Hot spot, Cold spot, User Preset Point
- 25 Hz image frequency
- 3.2” LCD screen display
- Up to 8 hours continuous running
Specification
| Thermal Module | |
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| IR Resolution | 160 × 120 (19,200 pixels) |
| Pixel Pitch | 17 μm |
| Spectral Range | 8 to 14 μm |
| NETD | < 40 mK (@25°C), F# = 1.0 |
| Focal Length | 3.5 mm |
| FOV (Field of View) | 32.9° × 44.4° |
| Image Frequency | 25 Hz |
| Focus | Fixed |
| IFOV (Spatial Resolution) | 4.85 mrad |
| Aperture | F1.1 |
| Minimum Focus Distance | 0.3 m (0.98 ft) |
| Image Display | |
| Display | 320 × 240 Resolution, 3.2’’ LCD Screen |
| Color Palettes | White Hot, Black Hot, Rainbow, Ironbow |
| Measurement and Analysis | |
| Object Temperature Range | -20°C to 550°C (-4°F to 1022°F) |
| Accuracy | Max. (± 2°C/3.6°F, ± 2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F) |
| Measurement Presets | Center Spot, Hot Spot, Cold Spot, Point Presets, Off |
| High Temperature Alarm | Audible Warning |
| Storage | |
| Storage Media | EMMC (4 GB) |
| Image Storage Capacity | 30,000 Images |
| Image File Format | JEPG with Measurement Data Included |
| Functions | |
| Wi-Fi | 802.11 b/g/n (2.4GHz) |
| UVC Cast Screen | Yes |
| Level/Span | Auto/Manual |
| Power System | |
| Power Supply | 3.7 VDC/0.4 A |
| Power Consumption | 1.5 W |
| Battery Type | Rechargeable Li-ion Battery |
| Battery Operating Time | 8 Hours Continuous Running |
| General | |
|
Menu Language | 21 Languages English, German, French, Spanish (Spain), Portuguese (Portugal), Italian, Czech, Slovak, Polish, Hungarian, Romanian, Dutch, Danish, Norwegian, Finnish, Swedish, Russian, Turkish, Japanese, Korean, Chinese (Traditional) |
| Working Temperature Range | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| Protection Level | IP54 |
| Drop Test Height | 2 m (6.56 ft) |
| Interface | USB Type-C |
| Weight | Approx. 360 g (0.79 lb) |
| Dimension | 221.7 mm × 73.5 mm × 80.6 mm (8.73” × 2.89” × 3.17”) |
| Tripod Mounting | UNC ¼”-20 |

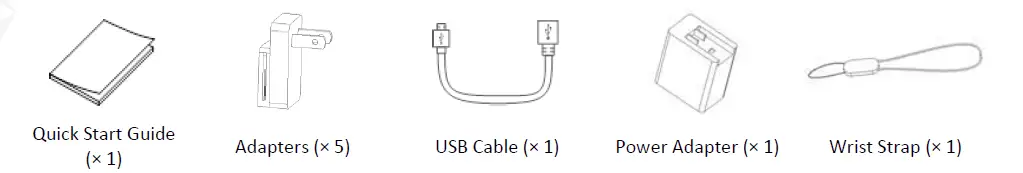

Package List
Available Model
HM-TP51-3AXF-B1L

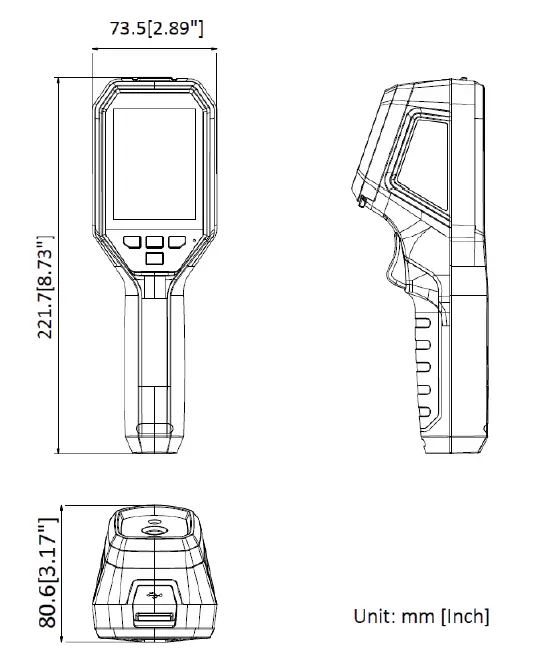

Dimension
COMPLIANCE NOTICE: The thermal series products might be subject to export controls in various countries or regions, including without limitation, the United States, European Union, United Kingdom and/or other member countries of the Wassenaar Arrangement. Please consult your professional legal or compliance expert or local government authorities for any necessary export license requirements if you intend to transfer, export, re-export the thermal series products between different countries. Room 313, Unit B, Building 2, 399 Danfeng Road, Xixing Subdistrict, Binjiang District, Hangzhou, Zhejiang Hangzhou Microimage Software Co., Ltd. 2020 | Data subject to change without notice!
