SHARP PN -L752B 52 Inch Full Color
LCD Monitor Instructions
Scope
This document describes dismantling instruction according to Annex VII of Directive 2012/19/EU.
Tools for dismantling
Below tools are required to dismantle this product.
– Screw Driver
– Nipper
Dismantle Procedure
This product can be dismantled by below steps.
- Remove Back covers (section 4)
- Remove Printed circuit boards (section 5)
- Dismantle LCD (section 7)
- Remove Electrolyte Capacitors (section 8)

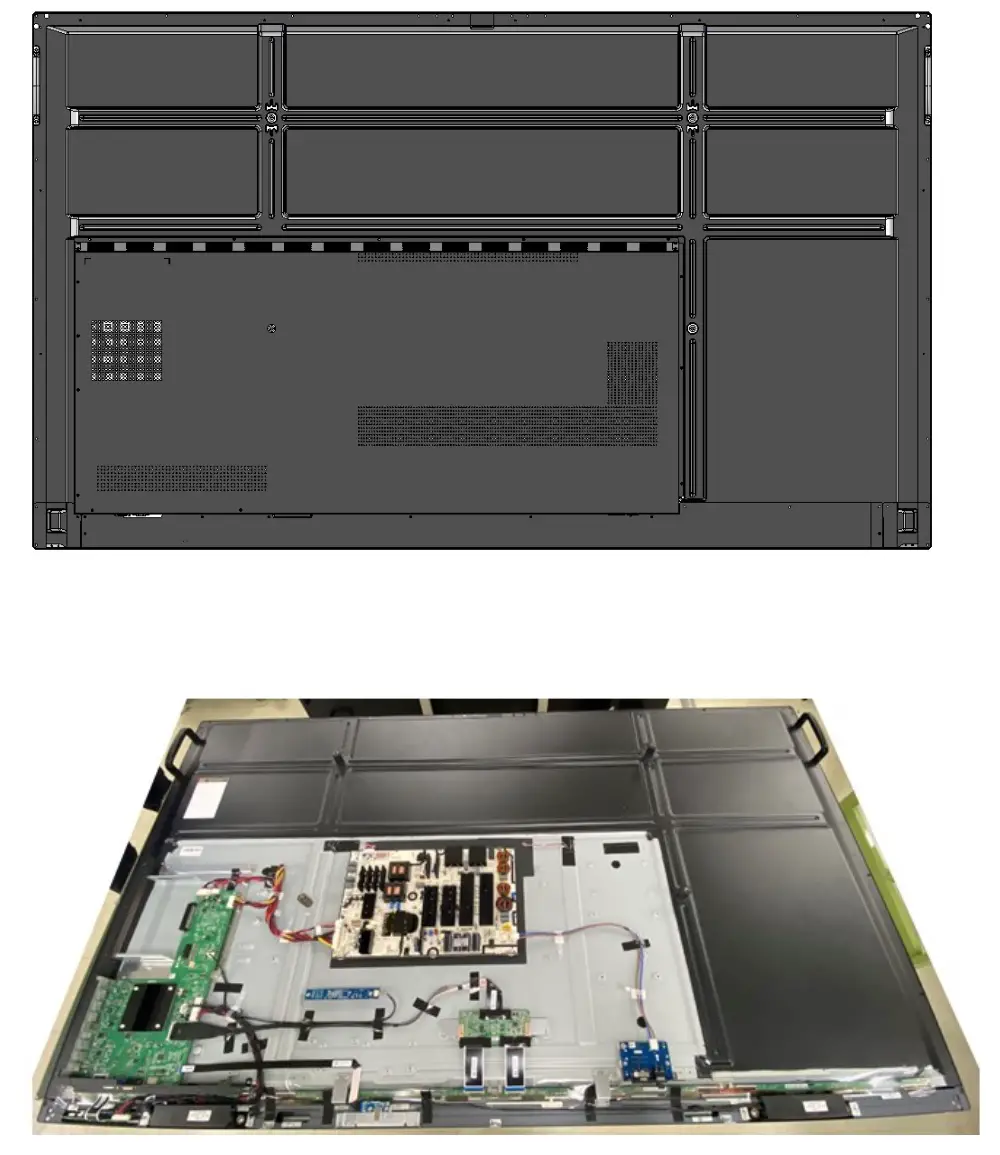

Back covers
Big back cover(x1),Middle back cover(x1),Right small back cover(x1) ,Left small back cover(x1) Can be removed by screw driver.

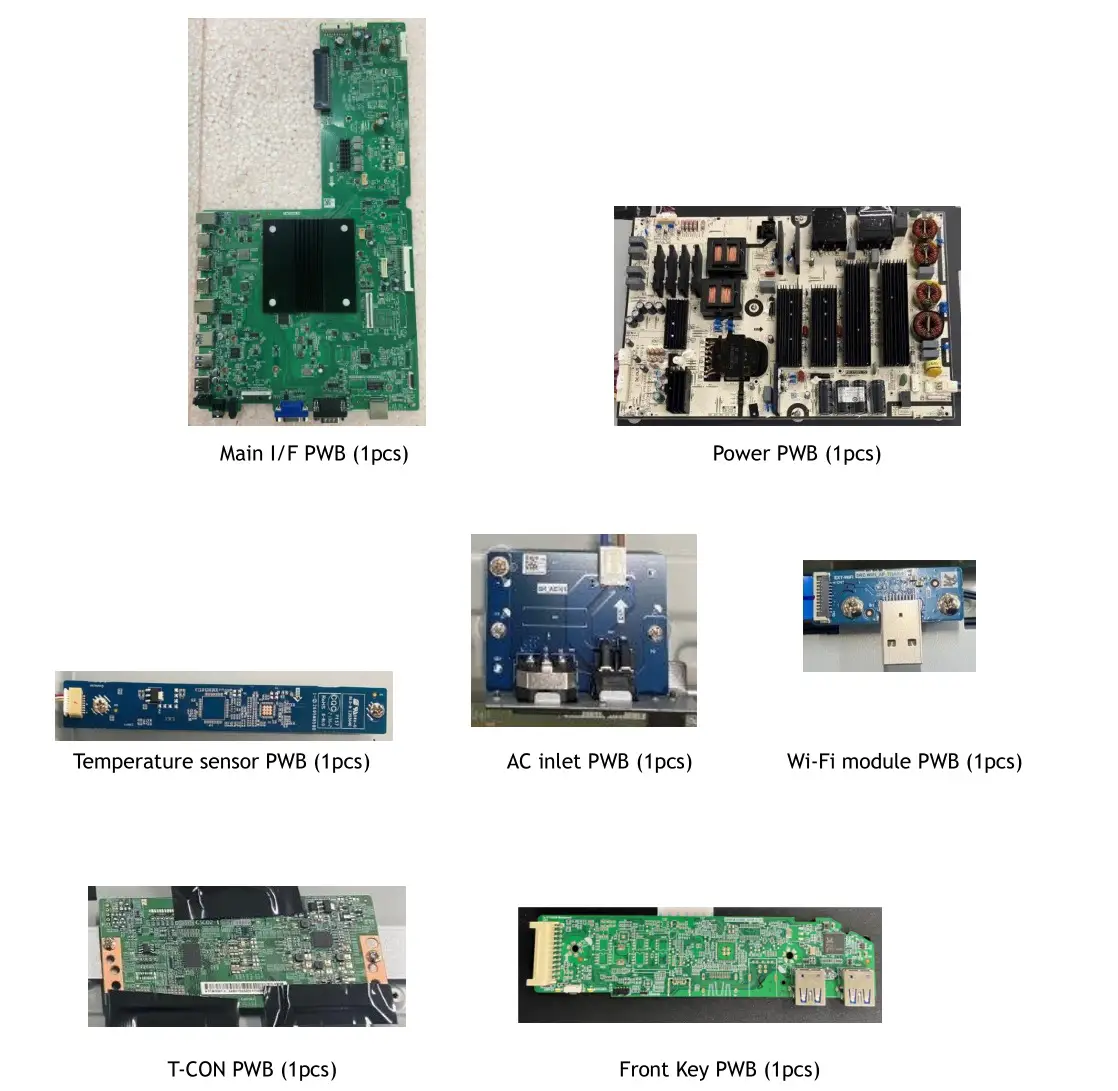

Printed circuit boards
All PWBs can be removed by screw driver.

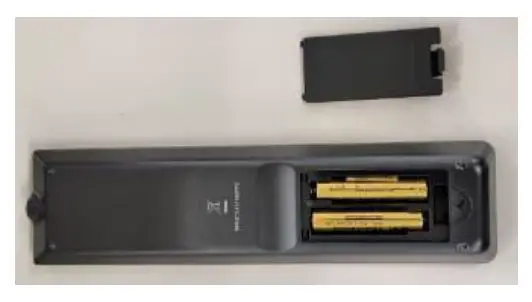

Battery
Battery can easily be removed from the battery holder.

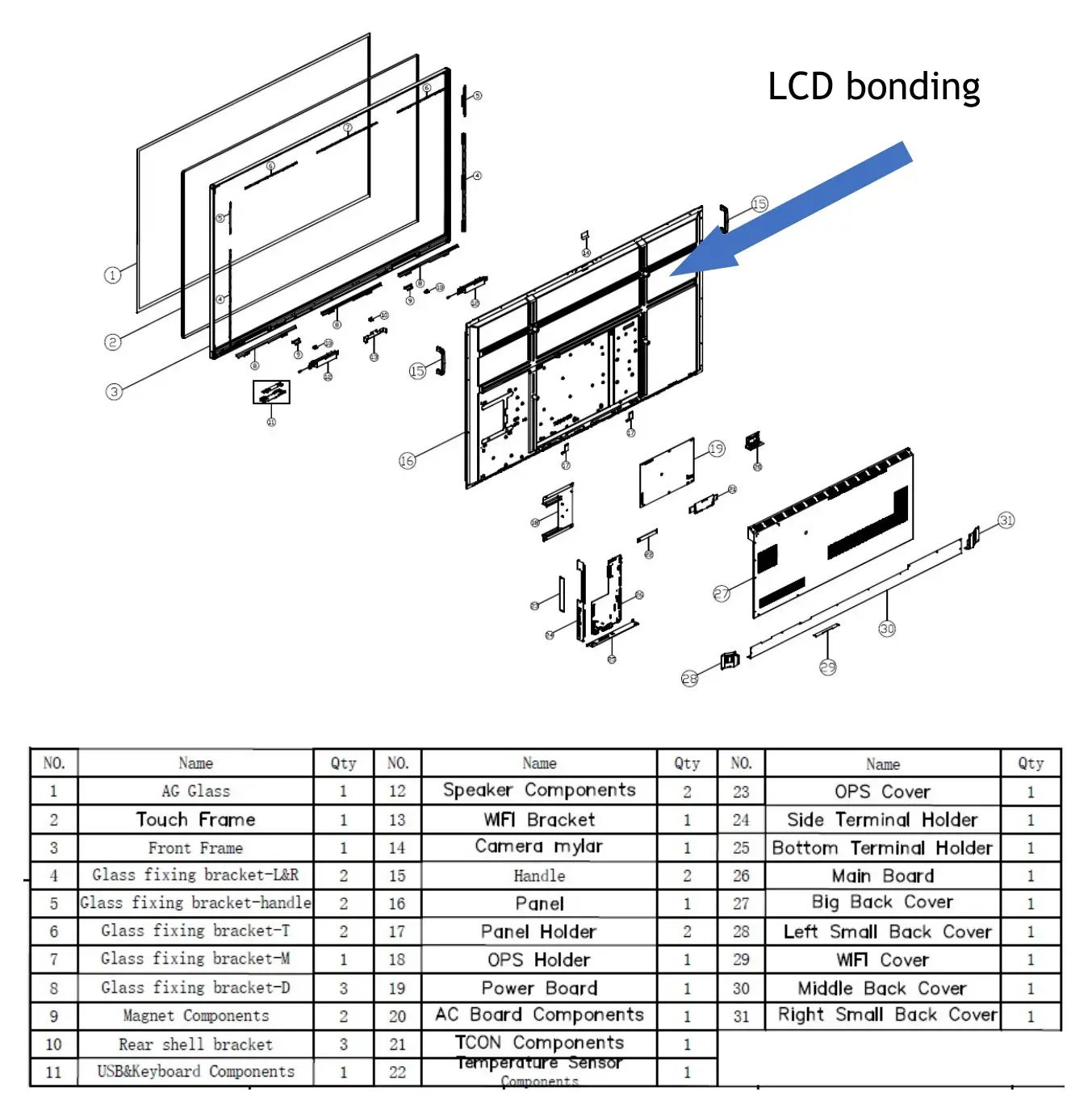

LCD Module
– LCD Dismantle procedure
After you have removed the PWB´s and dismantled the LCD Module please take out the cables from the LCD module.
Due to direct bonding technology the front glass cannot be removed from the LCD.

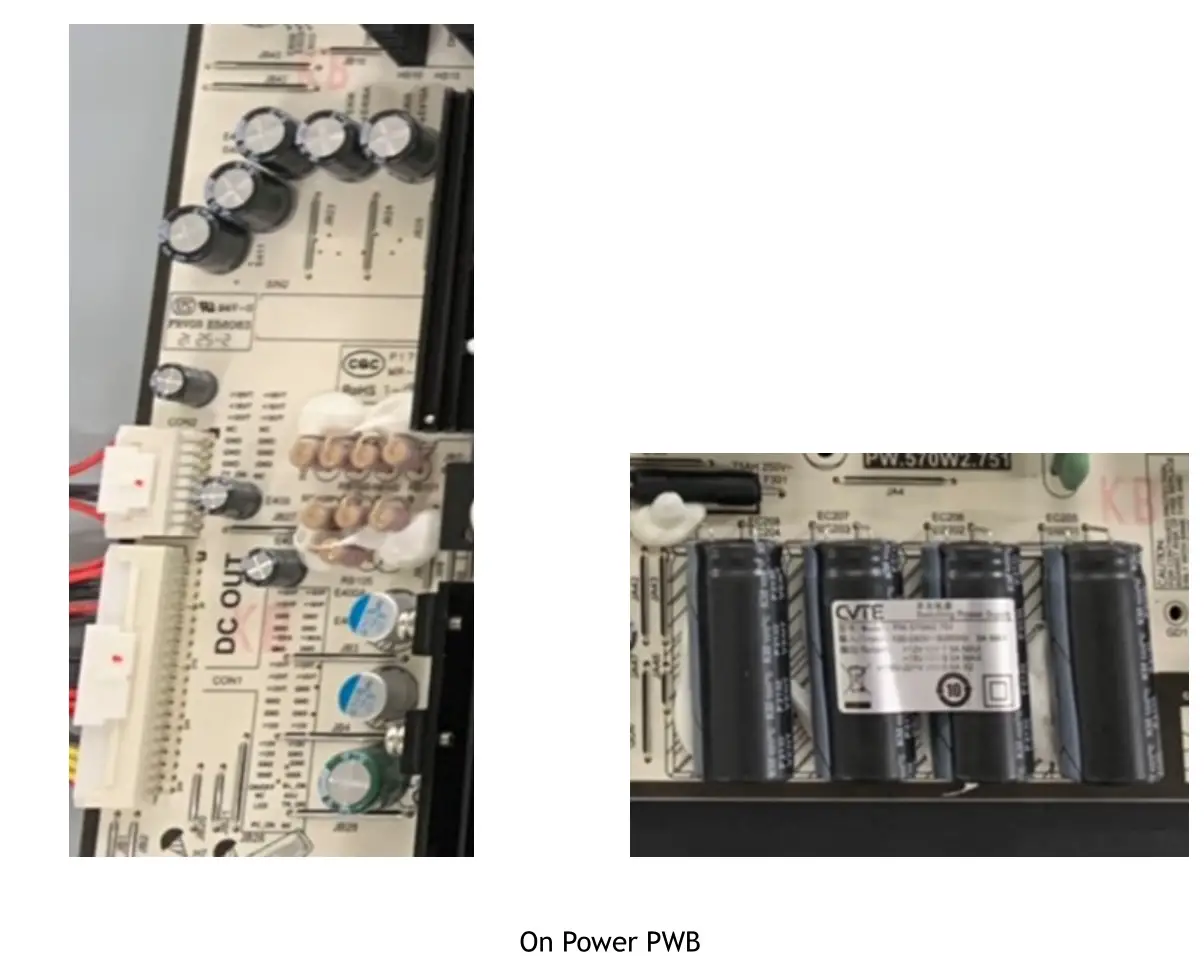

Capacitors
Electrolyte Capacitors which diameter/height is larger than 25mm is installed on Power PWB, LED driver PWB and 5V Power PWB.
These capacitors can be removed by using nipper to cut the leads.

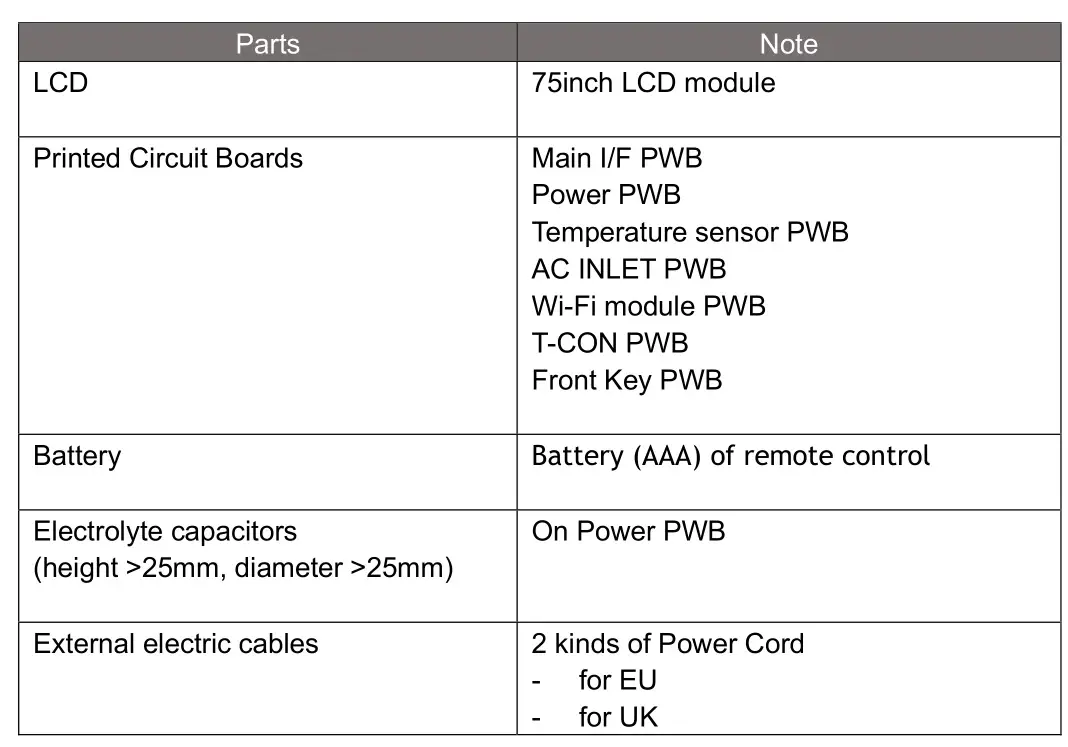

Parts List
Parts described in Annex VII of directive 2012/19/EU are as below.
