SHARP PN-HS501 LCD Monitor Instructions

1. Scope

This document describes dismantling instruction according to Annex VII of Directive 2012/19/EU.

2. Tools for dismantling

Below tools are required to dismantle this product.

• Screw Driver
• Nipper

3. Dismantle Procedure

This product can be dismantled by below steps.

1. Remove Back covers (section 4)
2. Remove Printed circuit boards (section 5)
3. Remove Battery (section 6)
4. Dismantle LCD (section 7)
5. Remove Electrolyte Capacitors (section 8)

4. Back covers

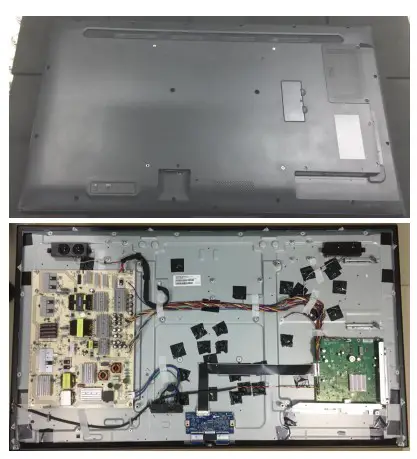

Back cover can be removed by screw driver.

5. Printed circuit boards

All PWBs can be removed by screw driver.

Main I/F PWB (1pcs)

      Power PWB (1pcs)

6. Battery

This model uses only AAA battery for remote control. Battery can easily be removed.

7. LCD Module

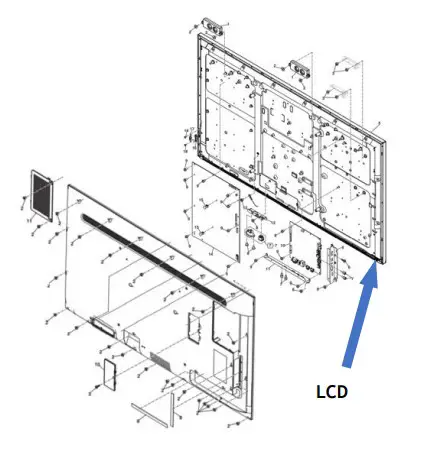

LCD Dismantle procedure

1. Remove Rear cover
2. Remove PWBs
3. Remove the Cables


8. Capacitors

Electrolyte Capacitors which diameter/height is larger than 25mm is installed on Power PWB.
These capacitors can be removed by using nipper to cut the leads.

9. Parts List

Parts described in Annex VII of directive 2012/19/EU are as below.
