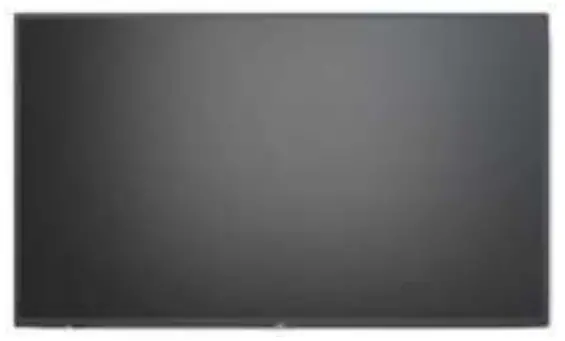

SHARP PN-HE651 LCD Monitor
Scope
This document describes dismantling instruction according to Annex VII of Directive 2012/19/EU.
Tools for dismantling
- Screw Driver
- Nipper
Dismantle Procedure
This product can be dismantled by below steps.
- Remove Back covers (section 5)
- Remove Printed circuit boards (section 6)
- Dismantle LCD (section 7)
- Remove Electrolyte Capacitors (section 8)

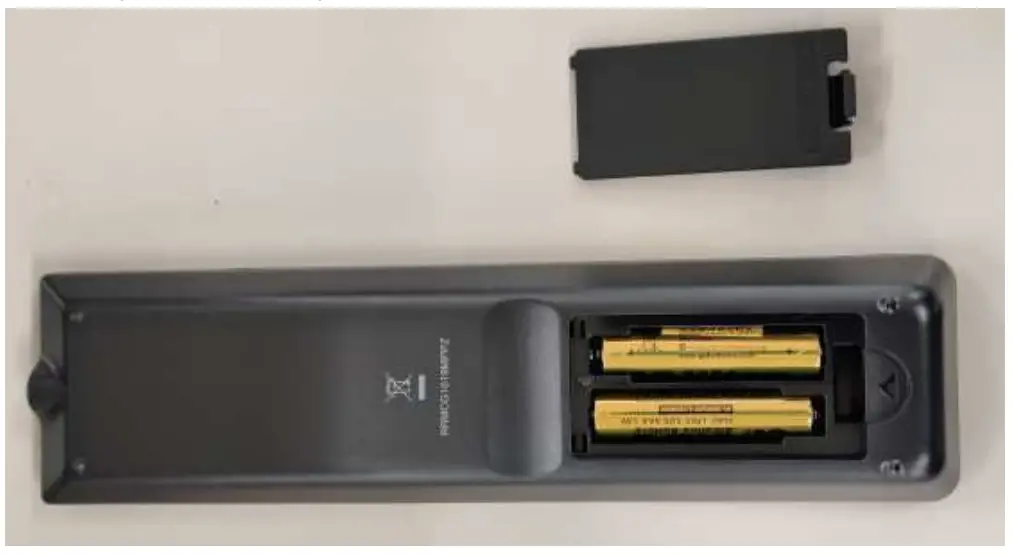

Batteries
This model uses only AAA battery for remote control. Battery can easily be removed.

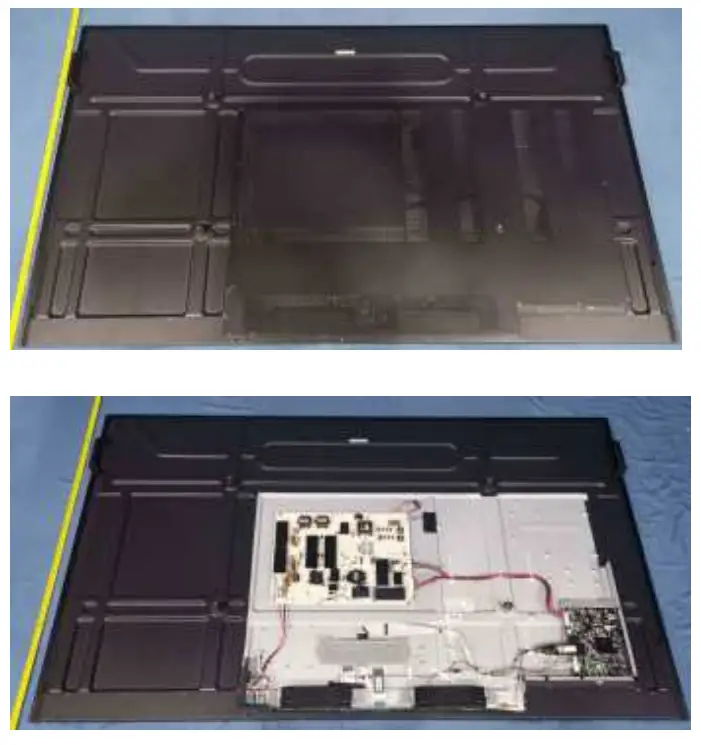

Back covers
back cover can be removed by screw driver.
PWB and other electronic components
All electronic components can be removed by screw driver.

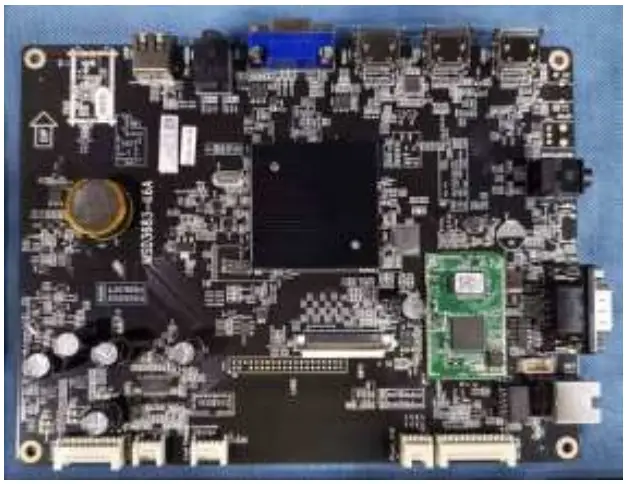

MAIN PWB

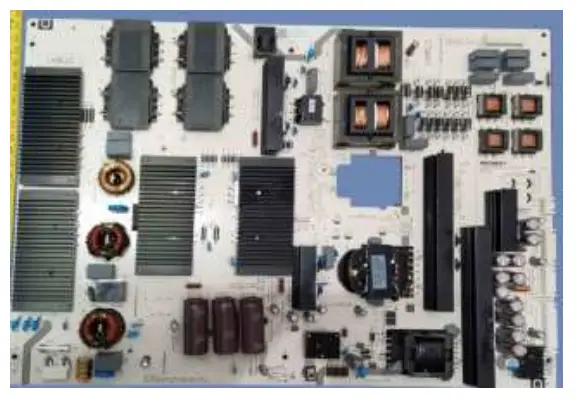

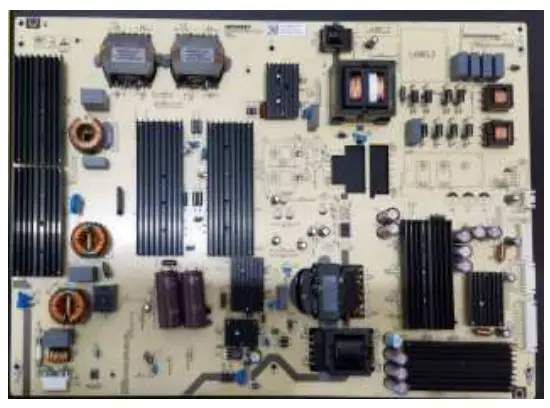

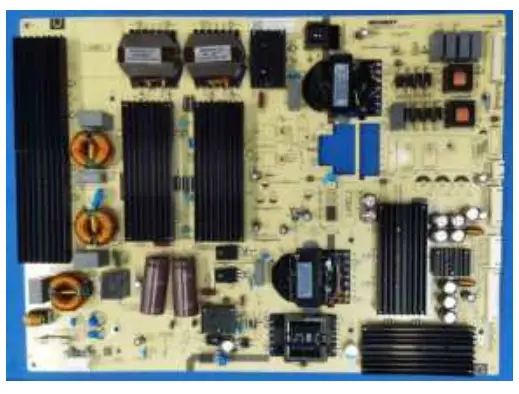

POWER PWB
PN-HE651/PN-HC651
PN-HE751/PN-HC751
PN-HC861

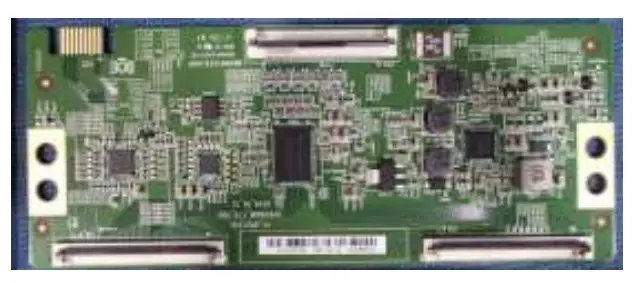

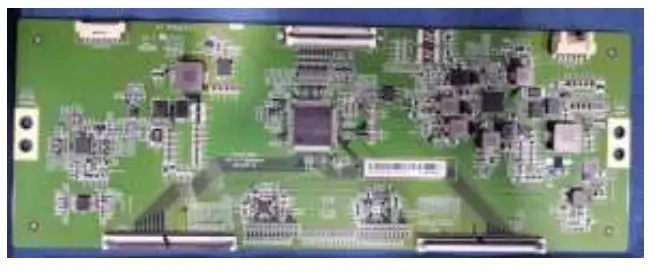

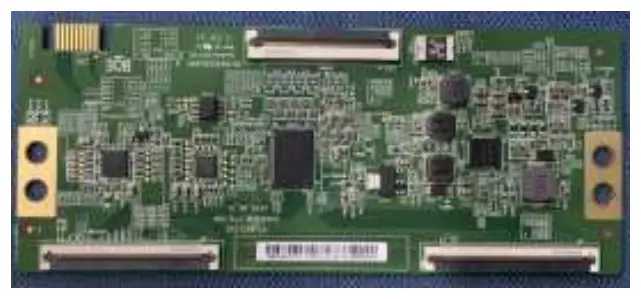

T-CON PWB
PN-HE651/PN-HC651
PN-HE751/PN-HC751
PN-HC861

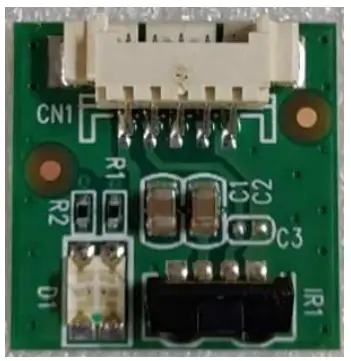

IR/LED PWB

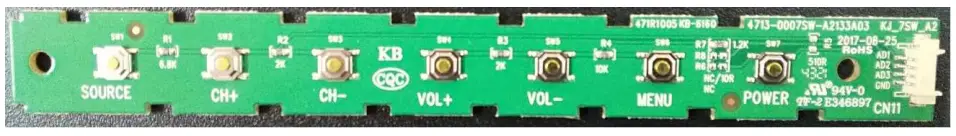

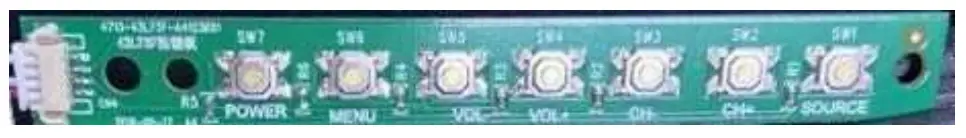

KEY PWB
PN-HE651/PN-HC651
PN-HE751/PN-HC751/PN-HC861

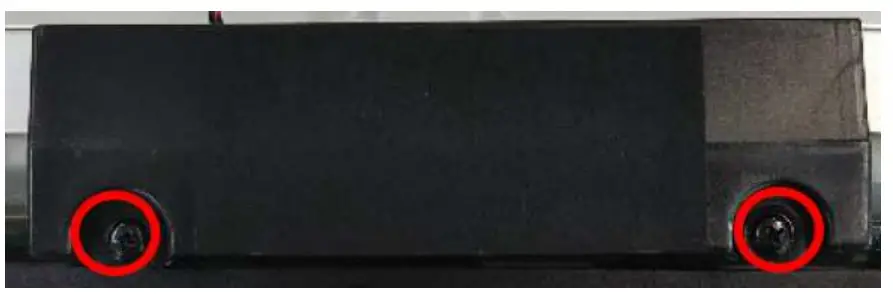

Speaker

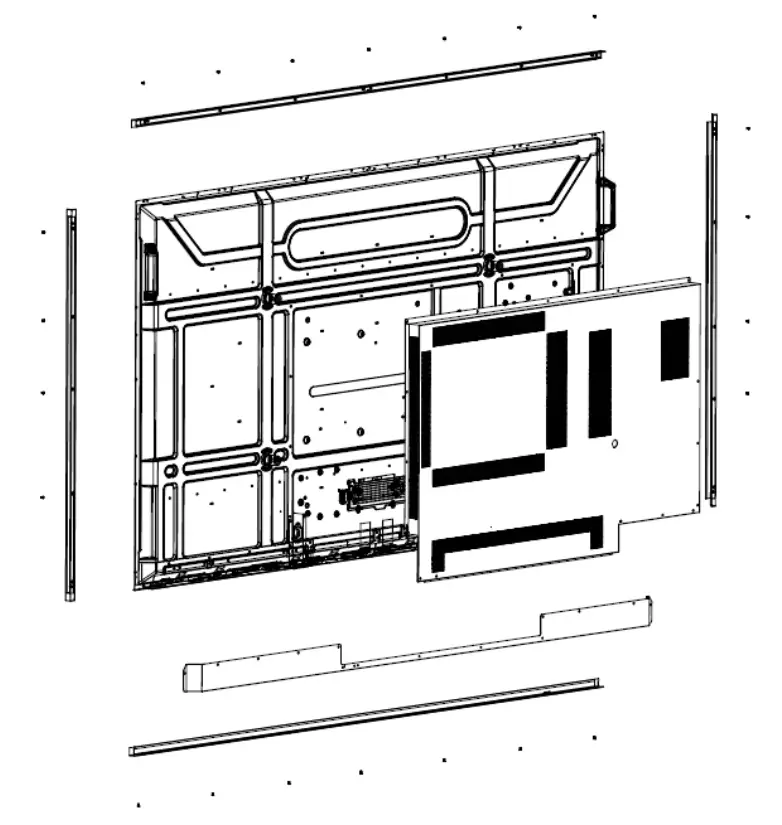

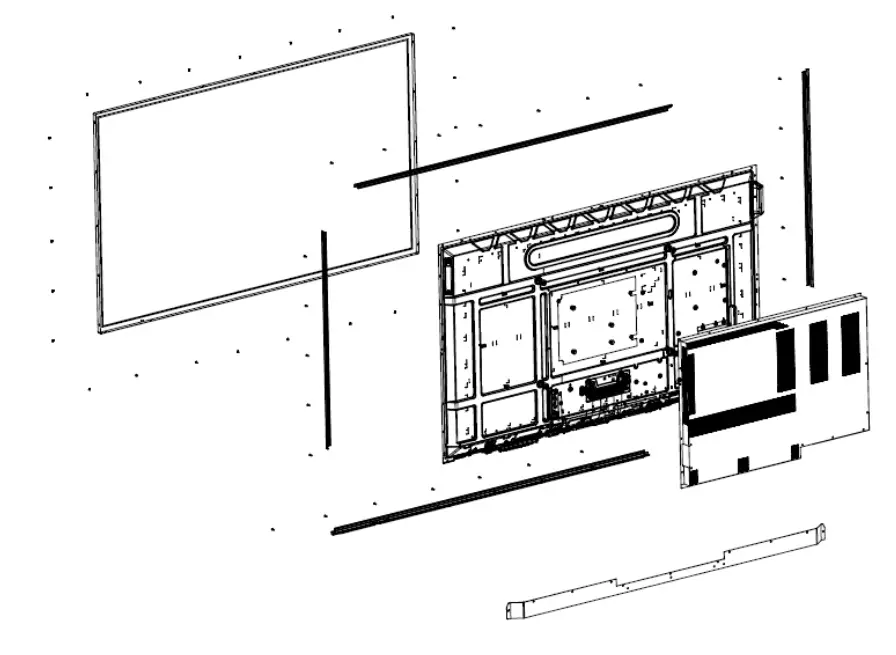

LCD Module bezels/angles
PN-HC651,PN-HE651
PN-HC751, PN-HC861, PN-HE751

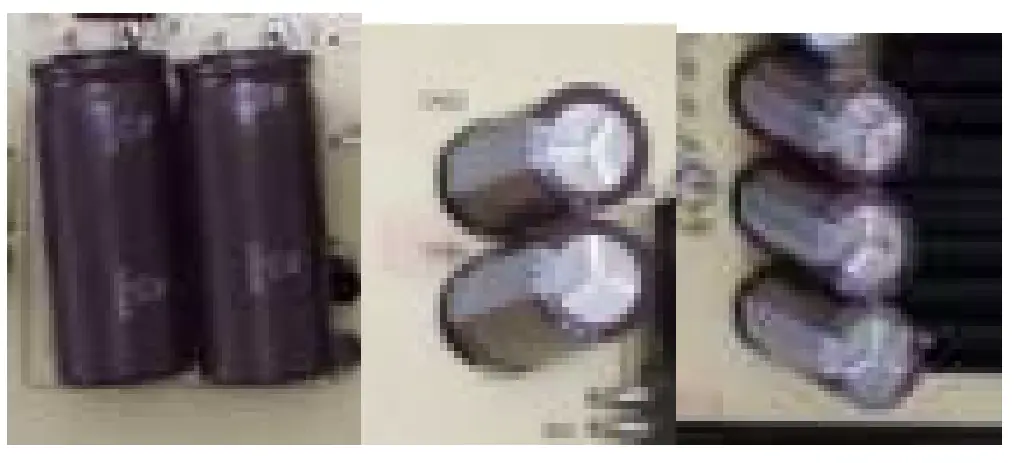

Capacitors
Capacitors which diameter is larger than 25mm is installed on the Power PWB.
And these capacitors can be removed by using nipper to cut the leads.
Parts List
The spare parts listed in the column “Spare Parts” below are kept available in accordance to
legal requirements of EU Regulation
2019/2021 for professional repairer.
| Spare Part | Part Name/ Element of Part |
| a. Internal power board | Power PWB |
| b. Connectors to connect external equipment | Main PWB |
| c. Batteries and Accumulators | Battery(AAA) of remote control |
| d. DVD/Blue-Ray module | not applicable |
| e. HD/SSD module | not applicable |
