Remote Capable STEEL Emergency Light & Running Man Combo
INSTALLATION INSTRUCTIONS FOR RUNNING MAN EXIT SIGN

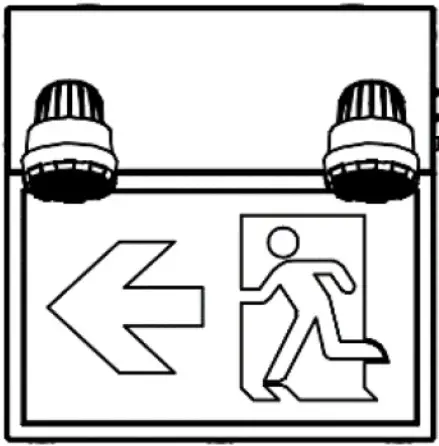

Package Contents
| Part | Description | Quantity |
| 1 | Emergency Exit Sign | 1 |
| 2 | Hardware Kit | 1 |
| 3 | Pictogram | 3 |
Warnings and Cautions
IMPORTANT SAFEGUARDS
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
- Review the diagrams thoroughly before beginning.
- All electrical connections must be in accordance with local codes, ordinances and the National Electric code.
- Disconnect power at fuse or circuit breaker before installing or servicing.
- Do not use outdoors.
- Do not mount in hazardous locations, or near gas or electric heaters.
- Do not let power cords touch hot surface.
- Equipment should be mounted in locations and at heights where it will not be subjected to tampering by unauthorized personnel.
- The use of accessory equipment not recommend by the manufacturer may cause an unsafe condition.
- Do not use this equipment for other than intended use.
- All servicing should be performed by qualified personnel only.
- Allow battery to charge for 24 hours before first use.
SAVE THESE INSTRUCTIONS

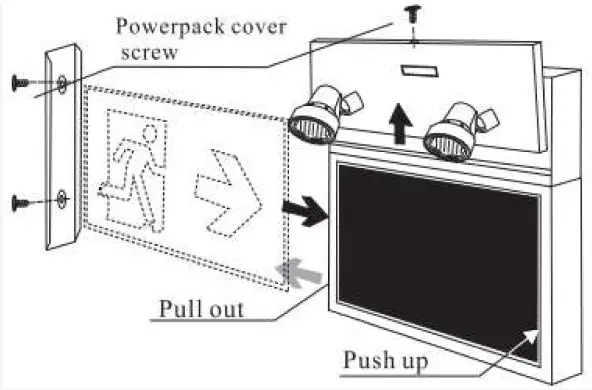

Mounting Instructions (NOTE: First turn off electricity)

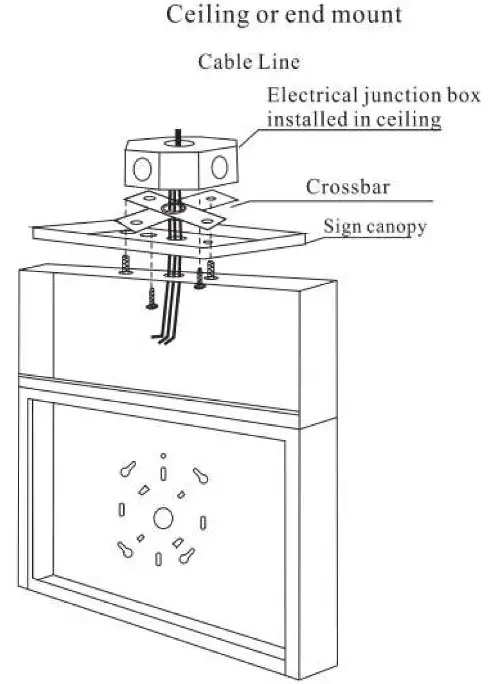

Ceiling mounting (Max. mounting height is 18.3ft)
- Remove the power pack cover screws and lift the power pack cover up and out of the way.
- Knockout back of housing and push wires through the hole.
- Make the proper supply lead connections.
- Connect the battery after installed.
- Select the correct PVC sheets.
- Restore power and press test button. Battery powered LED will come on, AC light will turn off.
