CZQRW Emergency Remote Light Head

What are remotes and why are they used?

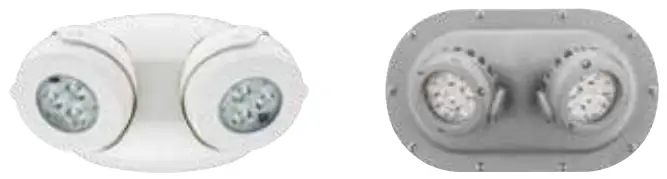

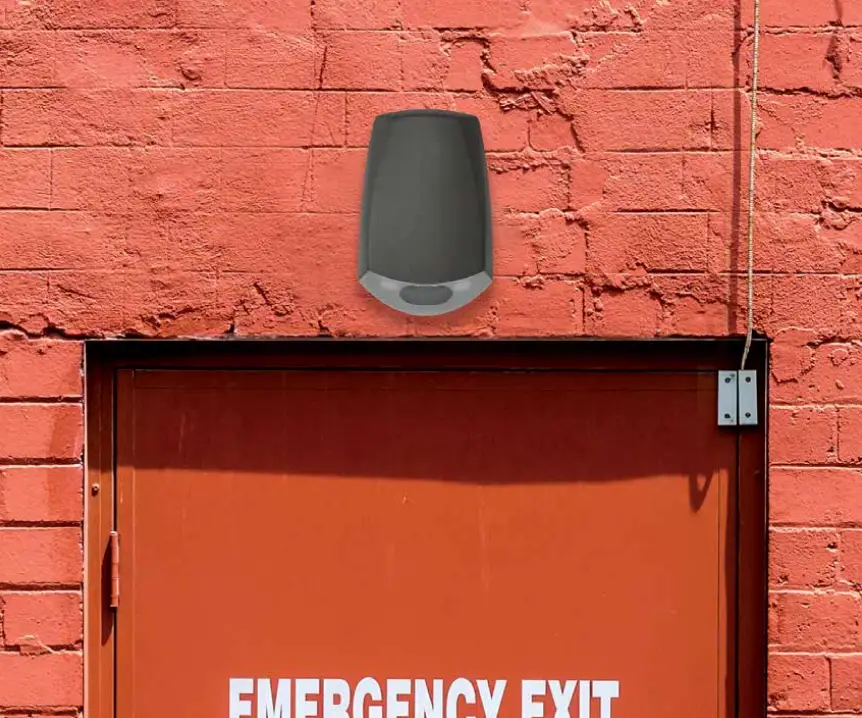

An emergency remote head is a stand-alone lamp with no internal battery backup. Remote lamps are mounted on a base, with either single or twin lamps, and powered by an external battery source, most likely from an emergency lighting unit or exit-unit combo with extra capacity. By eliminating the battery, remotes are often more affordable than illuminating that same path of egress than stand-alone units. Additionally, emergency remote lamps are tested simultaneously with their emergency unit counterpart. This means that you are still following the Life Safety Code (NFPA 101) with less fixtures to test monthly/annually.

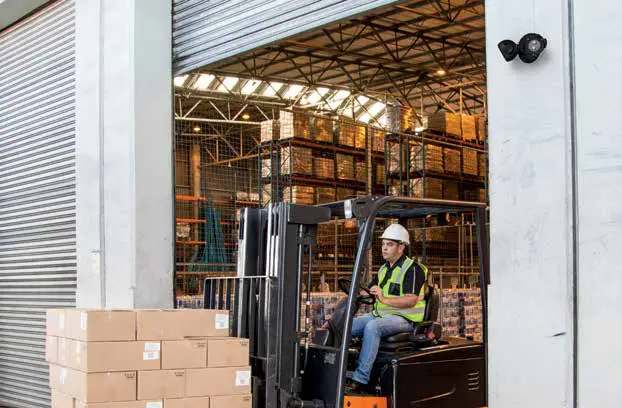

	Wet Location /Outdoor	Light Commercial/ Indoor	Heavy Industrial NEMA 4X

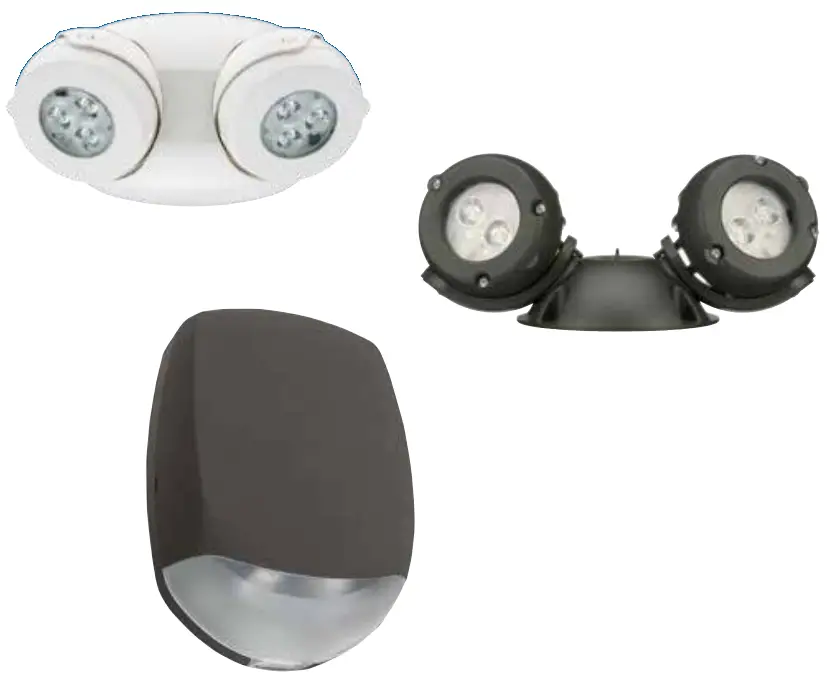

Catalog Desciption and Image	CZQRW	CZAFB OELR CZAFP OELR	DSL3RE	CZQRE	DSL4XRE
Family	Cortez	CortezTM	DesotoTM	Cortez”	DesotoTM
Compatiable DC Battery Voltage	5-20VDC (LP220L) 5-20VDC (5P640L)	8-30VDC	5-20VDC (SP640L) 7-30VDC (SP1100L) 7-30VDC (SP2200L)	5-20VDC (LP220L) 5-20VDC (51,6401) 7-30VDC (SP1100L)	5-20VDC (SP640L) 7.30VDC (5P1100L) 7•30VDC (SP2200L)
Watts per Lamp Head	LP2201 – 1.2W 51,6401-1.2W 3.3W	CZAFB OELR WT – 2.6W CZAFP OELR WT – 8.5W CZAFP OELR FCT – 8.2W	51,6401 – 13W SP1100L-5.3W SP2200L – 11W	LP2201 – 1.2W 96401 – 3.3W SP11001 – 5.3W	96401 – 3.3W SP1100L – 5.3W SP2200L – 11W
Lumens per Lamp Head	1P220L – 110 0 IM 5P640L –	CZAFB OELR WT – 225 LM CZAFP OELR WT – 635 LM CZAFP OELR FCT – 450 LM	SP640L – 320 LM SP1100L – 550 LM SP22001 – 1100 LM	LP220L – 130 LM SP640L – 345LM SP1100L – 550 LM	SP640L – 320 LM SP1100L – 550 LM SP2200L -1100 LM
Maximum Spacing (Twinremotes)	LP2201- 35′ SP640L – 67′	AFB WT – 30′ AFF WT – 69′ AFF FCT – 35′	SP640L – 63′ SP1100L – 82′ SP2200L – 128′	LP220L – 35′ SP640L – 67′ SP1100L – 98′	SP640L – 57′ SP1100L – 72′ SP2200L • 110′
Temperature Range	-40°F to 131°F (-40°C to 55°C)	-40°F to 122°F (-40°C to 50°C)	-40°F to 131°F (-40°C to 55°C) @5P6401. or -22°F to 104°F (-30°C to 40°	-22°F to 104°F (-30°C to 40°C)	-40°F to 131°F (•40°C to 55°C) @SP6401 or -22°F to 104°F (-30°C to 40°C
Self- Diagnostics Compatiablity	Yes	Yes	Yes	Yes	Yes
Listings	UL, Wet Location, CSA	UL, Wet Location, CSA	UL, Wet Location, CSA	UL, CSA	UL, IP66, CSA, NEMA 4X, NSF
Warranty	5 Year	5 Year	5 Year	5 Year	5 Year
Recommended Holophane Products	CZQ2L, CZQ4L, CZQ6L, QM LED	DSL3, DSL46, CZQ4L, CZQ6L, QM LED	DSL3, DSL46, CA)41, CZQ6L	CZQ2L, CZQ4L, MR, QM LED , DSL3, DSL46	DSL3, DSL46, C1Q41, CZQ6L
Alternate Compatiable Holophane Products	C4250, 042125, 042180, 042275, DSL3, DSL46	C4250, C42125, C42180, C42275	C4250, C42125, C42180, C42275	42	04250, 042125, C42180, C42275

Warranty Five-year limited warranty. Full warranty terms located at www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx
Product specifications may change without notice. Please contact your local Holophane factory sales representative for the latest product information.

One Lithonia Way, Conyers, Georgia, 30019 | 800.705.SERV (7378) | www.acuitybrands.com
©2021 Acuity Brands Lighting, Inc. All rights reserved. | HL_500199_0521
