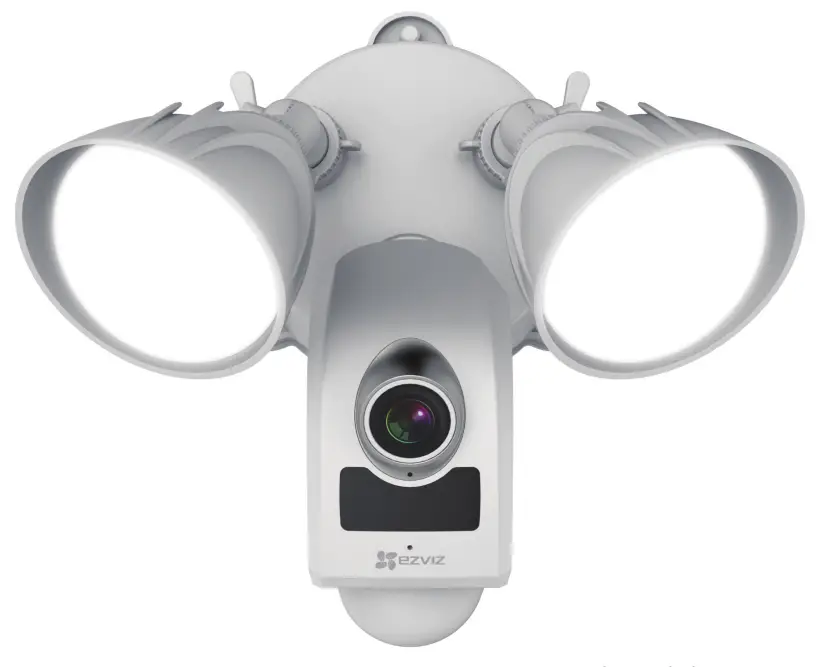

LC1
Smart Security Light Camera
Brighter and Safer
Light up dark spots and add security to outdoor areas around your house with a powerful full-HD security camera armed with ultra-bright lights and active defense.
Key Features
 | Dual 2500 LM Led Lights |  | PIR Motion Detection (270-degree) |
 | Active Defence |  | Night Vision (Up to 18m/16ft) |
 | FHD 1080p |  | Two-Way Talk |
 | IP65 Dust and Water Protection |  | Supports MicroSD Card (Up to 128 GB) |

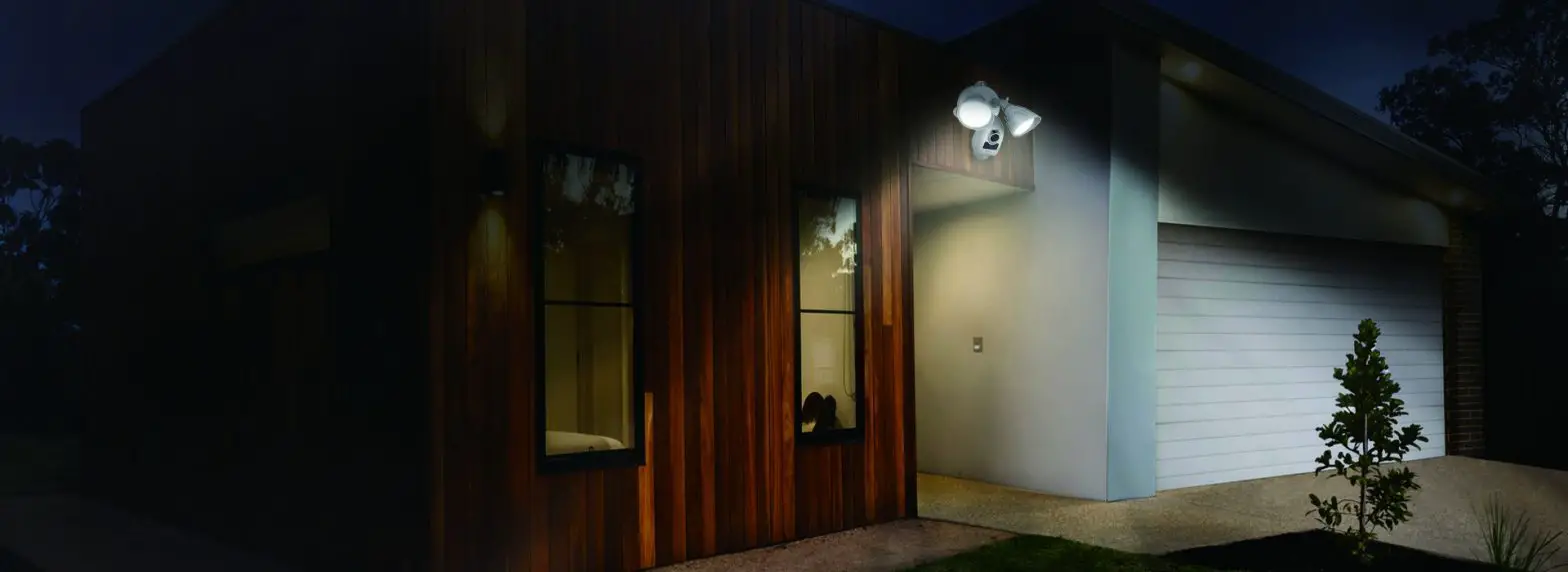

Light the Way Back Home
With dual 2500 LM LED lights, the LC1 brightens up your way home and illuminates every dark corner of your front porch, backyard, and anywhere else that needs light.

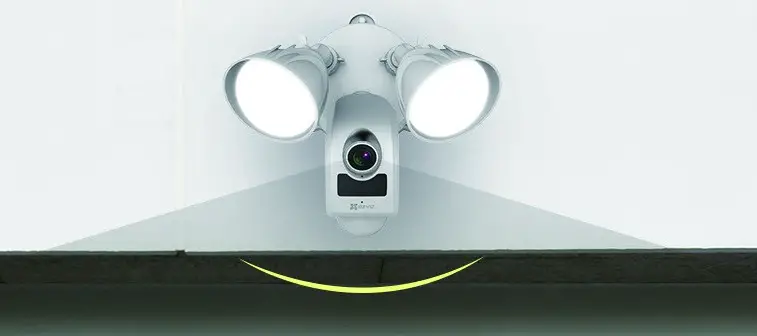

Extra Protection with Active Defense
When someone enters LC1’s 270-degree PIR motion detection area, it emits a 100 dB alarm with a flashing light to deter potential intruders. It simultaneously sends an alert with captured images to your smartphones. You can also customize the detection area to keep an eye on places where you need it the most.

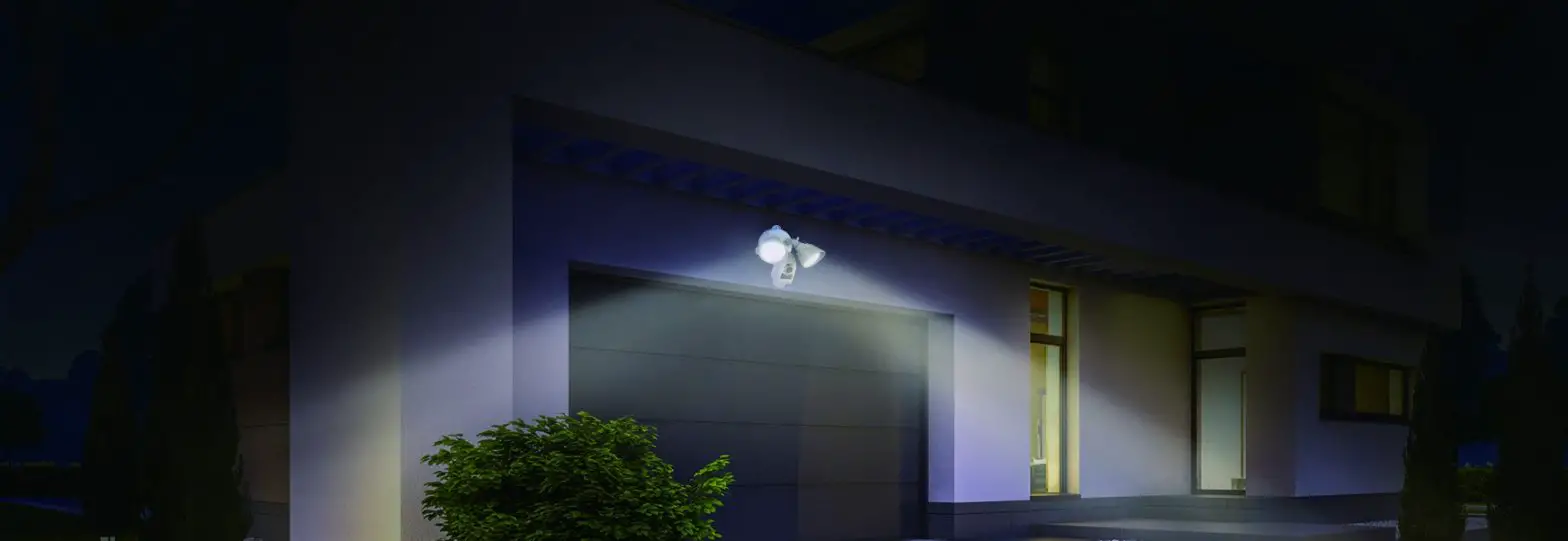

The LC1 supports night vision up to 18 meters (60 ft.).
It renders sharp, full-HD 1080p images even where there are no lights, so you keep a vigilant eye all night long.

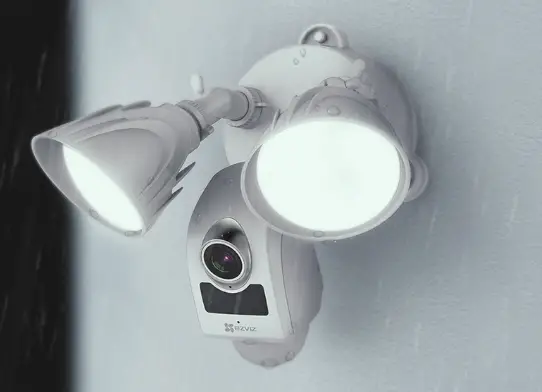

Strong and Durable
Built for outdoor use, the LC1 braves any weather – sun, rain, or snow, it stands strong.
Multiple Storage Solutions
The LC1 comes with a built-in MicroSD card slot that can store up to 128 GB of recorded footage.
You can also save your images to EZVIZ Cloud for additional back-up.
(Cloud storage service is only available in certain markets. Please verify the availability before making any purchase.)
Specifications
CS-LC1-A0-1B2WPFRL
System Parameters
| Processor | High-Performance Embedded SOC Processor |
| Operation System | Embedded Linux |
Light Parameters
| Lamp | 2 |
| LED | SMD LED |
| Brightness | 2500LM(-10%) |
| CRI | 80 |
| Color Temperature | 3000K |
| Life-span | @B50L70 @Ta 25 ℃48000H |
PIR Sensor Detection
| Detection Distance | 30 ft |
| Detection Range | 270 degrees |
| Motion Detection | Supports |
Camera Parameters
| Resolution | 1080p |
| Field of View | 140°(Diagonal), 115°(Horizontal) |
| Night Vision | Up to 18m/60ft |
Video Parameters
| Compression Standard | Smart H.264 |
| Max. Resolution | 1920 × 1080, FHD |
| Frame Rate | 50Hz @ 25fps, 60Hz @ 30fps Adaptive frame rate of network transmission |
| DNR | 3D DNR |
| BLC | Supports |
Audio Parameters
| Audio Input | Built-in Omni-direction microphone |
| Audio Output | Built-in loud speaker |
| Audio Quality | Noise suppression |
Network Parameters
| Wireless | 802.11 b/g/n @2.4GHz only (2T2R, Dual-antenna) |
| Network Configuration | Soft AP Configuration |
| Minimum network requirement | 2.0 Mbps |
Storage
| Local Storage | Supports MicroSD card (Up to 128 GB) |
| Cloud Storage | EZVIZ Cloud Storage (Optional) |
Event
| Sensor | PIR Motion Detection Sensor |
| Alarm | Customized Alert Area |
| Intelligence | Motion Detection |
General
| Siren | 100-decibel alram |
| Fixture Material | Cast aluminum(Lights) and Plastics(Camera) |
| Power Supply | Hardwired(110V-240V) |
| Power Consumption | ≤2W(normal), ≤8W(max) |
| Ingress Protection Grade | IP65 on camera (Wet Location for light) |
| Product Dimensions | 196 x 211 x 227 mm/ 7.7 x 8.3 x 8.9 inch |
| Packaging Dimensions | 235 x 250 x 270 mm/ 9.3 x 9.8 x 10.6 inch |
| Weight | 1757g/ 3.9 lb |
Package Contents:
– Screwdriver
– Mounting Screw Package
– 3 Connection Cables
– 3 Waterproof Kits
– Quick Start Guide
Requirements
– Operating Conditions: -30ºC ~ 50ºC (-20ºF ~ 120ºF), Humidity 95% or less
Certifications
CE
