Outdoor Single Remote Lamp Head
User Manual
BY-Z1101U
Package Contents
| Part | Description | Quantity |

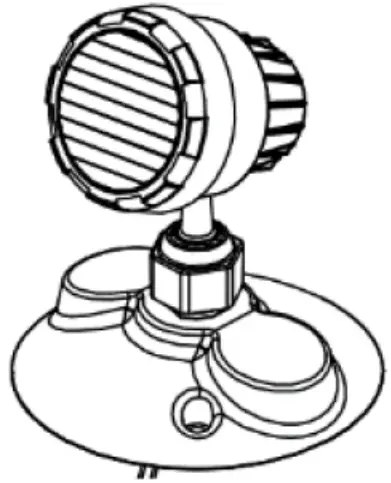

| 1 | LED remote head | 1 |
Warnings and Cautions
IMPORTANT SAFEGUARDS
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
- Review the diagrams thoroughly before beginning.
- All electrical connections must be in accordance with local codes, ordinances and the National Electric code.
- Disconnect power at fuse or circuit breaker before installing or servicing.
- Do not use outdoors.
- Do not mount in hazardous locations, or near gas or electric heaters.
- Do not let power cords touch hot surface.
- Equipment should be mounted in locations and at heights where it will not be subjected to tampering by unauthorized personnel.
- The use of accessory equipment not recommend by the manufacturer may cause an unsafe condition.
- Do not use this equipment for other than intended use.
- All servicing should be performed by qualified personnel only.
SAVE THESE INSTRUCTIONS
ELECTRICAL CONNECTIONS

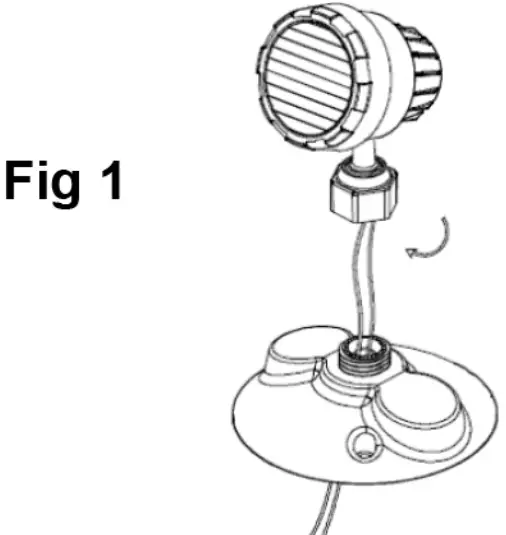

- Feed the wires through the hole on the bottom and twist the nut to fix it. (Fig 1)

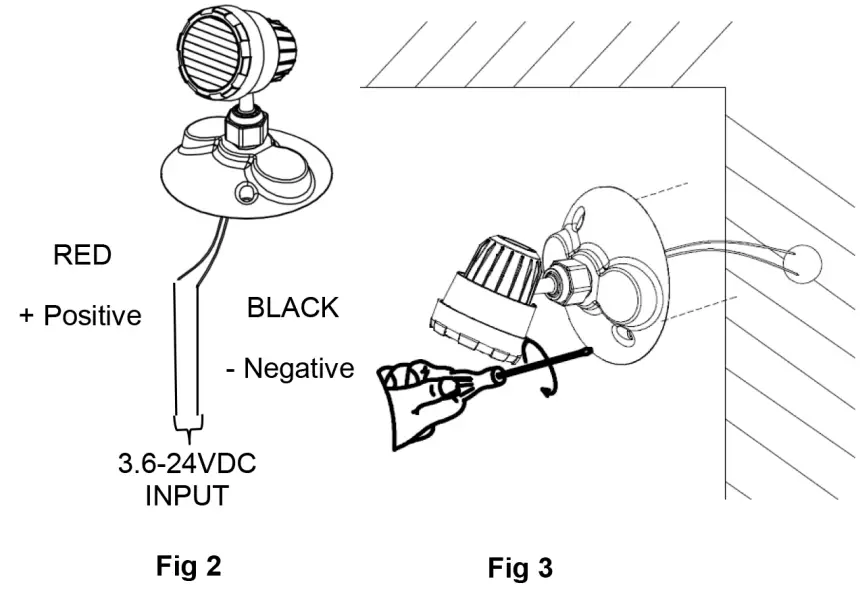

- Connect the wires to proper power supply and fix it on the wall with screws. (Fig 2, 3)
- Max. Mounting Height:10.8ft(3.2m)
 |  |
