Robus Rdd1p5lo-01 Desmond 1.5 Non-maintained Emergency Led Downlight Instruction Manual

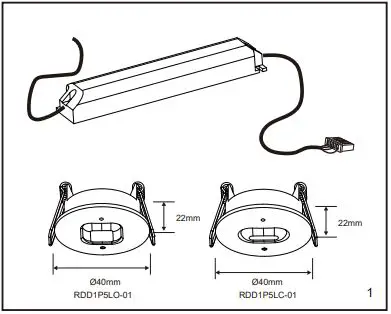

ROBUS RDD1P5LO-01 Desmond 1.5 Non-Maintained Emergency LED Downlight

PLEASE READ INSTRUCTIONS BEFORE COMMENCING INSTALLATION AND RETAIN THEM FOR FUTURE REFERENCES.
! Electrical products can cause death or injury, or damage to property. If in any doubt about the installation or use of this product, consult a competent electrician
Note:
Product technical information and specification may change over time without prior notification. For the latest technical information please visit our web site www.ledgrouprobus.com or robusdirect.com
0°C < Ta < +40°C, 220V – 240V ~ 50/60Hz, Class II, IP20, Battery Warranty: 2 Year
Luminaire is non-dimmable Suitable for mounting on a normally flammable surface.

Installation

1. Ensure mains supply is switched off before commencing work.
2. Before cutting, ensure that the hole does not impinge on joists, pipe work, cables or other building services.

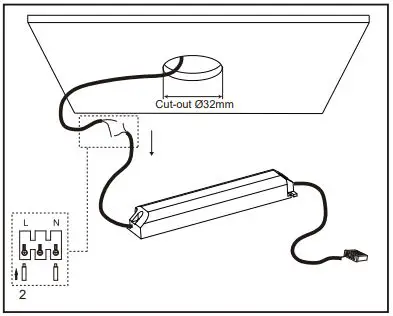

3. This luminaire requires a round hole Ø32mm to be cut into the ceiling for correct installation.
4. Connect supply cables to the driver: L – Brown, N –Blue.
5.  Write installation date on battery or installation leaflet.

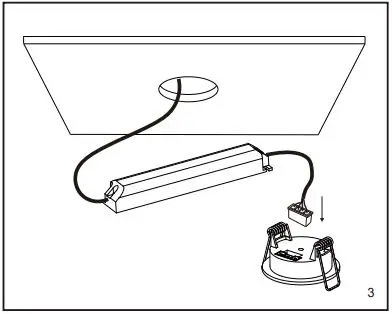

6. Push fitting through the cut-out so that two sides retention metal plate hold on against the ceiling.
7. Switch on supply: the green LED should come on indicating correct battery charge has started. In the non-maintained unit, the LEDs only lights if the mains supply fails

Test switch: The fitting will enter emergency mode for a short period of time when the test-switch is pressed.

Testing

The emergency lighting must be inspected and tested regularly in accordance with local codes of practice: note: for safety reasons tests should be carried out during daylight hours. The minimum recommended test schedule is as follows: After installation, allow 24 hours to ensure full battery charge and then interrupt the supply; the maximum duration time is 3 hours check that LEDs are still lighting.

1. Daily check that charge indicator LED is working
2. Monthly, interrupt mains for a short period and check LED lights
3. Annual 12 month check, full duration test. Interrupt mains supply, LEDs will light and should last for a minimum 3 hours operation: batteries must be replaced when they can no longer support 3 hour operation.
4. Complete record sheet on installation and retain in maintenance file.
5. Update file with ongoing test records for inspection by fire officer or other duly authorised person

Information for the Product user:

1. Please note the requirement to dispose of Waste Electrical & Electronic Equipment separately from household waste (WEEE marked with crossed out wheelie bin symbol).
2.  Please consider your role in contributing to re-use and recycling by returning this product at end of life to a collection centre for waste electrical equipment or a Civic Amenity site, or to a retail outlet from which you are purchasing a replacement.
3.  This equipment may contain substances that are hazardous to health and the environment if disposed of carelessly. It is important that it is separated from normal household waste and recycled in the WEEE chain
4. The “crossed out wheelie bin symbol” on a product indicates this equipment must not be disposed of in normal household waste, but should be disposed of according to local WEEE regulations

Installation and Maintenance Record:

• Installer
• Installation Type
• Installation test duration & Date

L.E.D lighting & Electrical Distribution Group UC
IRE: Nangor Road, Dublin 12, D12 E7VP, Ireland
UK: Bracknell Enterprise & Innovation Hub, Ocean
House, 12th Floor, The Ring, Bracknell,
Berkshire RG12 1AX, UK
Tel: +353 1 7099000
Fax: +353 1 7099060
Email: [email protected]
Website: www.robus.com
