SKYDANCE PS1 Wall Mounted Rotary Panel

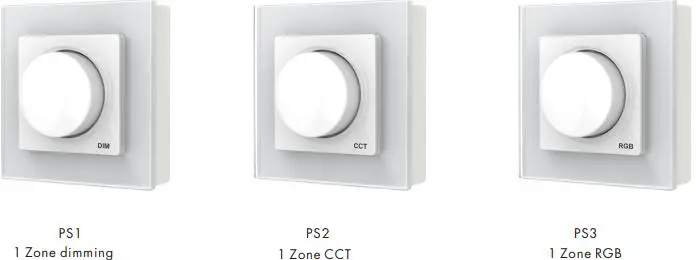

Model No.: PS1, PS2, PS3
1-3 color/Glass panel/Rotary dimming/Wireless remote 30m distance/AAA x 2 battery
Features
- Rotary glass panel single color, dual color or RGB RF remote.
- Rotate knob to change RGB color, color temperature or brightness, support long press or twice click operation.
- Each remote can match one or more receiver.
- Free installation, no wiring, removable.
- AAA x 2 battery powered.
Technical Parameters
| Input and Output | |
| Output signal | RF(2.4GHz) |
| Working voltage | 3VDC(AAA x 2) |
| Working current | ＜5mA |
| Standby current | ＜10μA |
| Standby time | 1 year |
| Remote distance | 30m |
Environment
- Operation temperature: Ta: -30 OC ~ +55 OC
- Case temperature (Max.): T c: +65OC
- IP rating: IP20
| Safety and EMC | |
| EMC standard (EMC) | ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-17 V3.2.4 |
| Safety standard(LVD) | EN 62368-1:2020+A11:2020 |
| Radio Equipment(RED) | ETSI EN 300 328 V2.2.2 |
| Certification | CE,EMC,LVD,RED |
Warranty: 5 year
Mechanical Structures and Installations

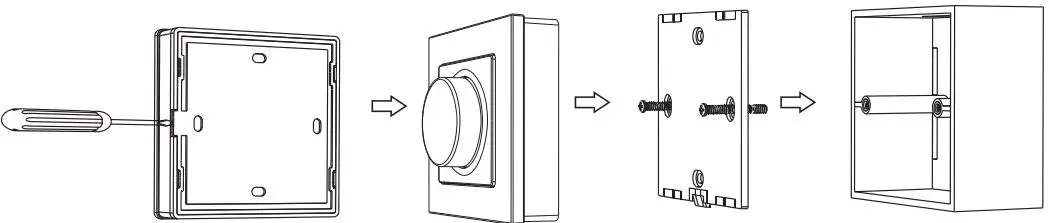

Installation diagram

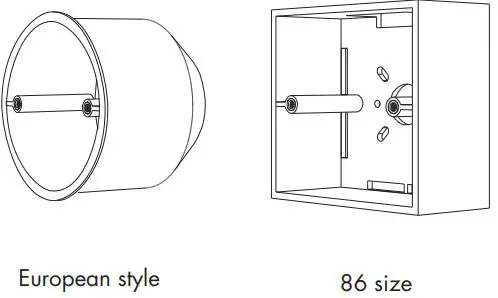

Typical base as below
To fix the panel, two options are offered for selection:
Option 1: fix it on the wall with two screws.
Option 2: adhere it to the wall with paster.
Knob function
- PS1 Single color dimming remote
- Push: Turn on or off light.
After turn on light: - Rotate: Rotate knob to adjust brightness(2.5 turns, 50 levels).
- Long push(1-6s): Continuous 256 levels brightness adjustment
- Push: Turn on or off light.
- PS2 Color temperature remote
- Push: Turn on or off light.
After turn on light: - Rotate: Rotate knob to adjust brightness(2.5 turns, 50 levels).
- Push twice: Switch between RGB color or brightness adjustment.
- Long push(1-6s): Continuous 256 levels brightness adjustment
- Push: Turn on or off light.
- PS3 Color temperature remote
- Push: Turn on or off light.
After turn on light: - Rotate: Rotate knob to adjust brightness(2.5 turns, 50 levels).
- Push twice: Switch between RGB color or brightness adjustment.
- Long push(1-6s): Continuous 256 levels brightness adjustment
- Push: Turn on or off light.
Match Remote Control (two match ways)
End user can choose the suitable match/delete ways. Two options are offered for selection:
Use the controller’s Match key
Match:
Short press match key, immediately push the knob.
The LED indicator fast flash a few times means match is successful.
Delete:
Press and hold match key for 5s to delete all match.
The LED indicator fast flash a few times means all matched remotes were deleted.
Use Power Restart
Match:
Switch off the power, then switch on power, repeat again.
Immediately push the knob 3 times.
The light blinks 3 times means match is successful
Delete:
Switch off the power, then switch on power, repeat again.
Immediately push the knob 5 times.
The light blinks 5 times means all matched remotes were deleted.
Safety information
- Read all instructions carefully before you begin this installation.
- When installing battery, pay attention to the battery positive and negative polarity.
A long time without the remote control, remove the battery.
When remote distance becomes smaller and insensitive, replace the battery. - If no response from the receiver, please re-match the remote.
- Gently handle remote, beware of falling.
- For indoor and dry location use only
