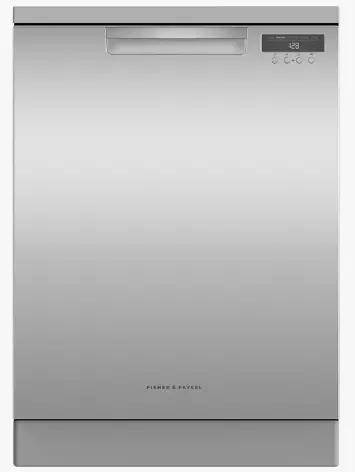

QUICK REFERENCE GUIDE > DW60FC4X1
Freestanding Dishwasher
Series 5 | Contemporary
Stainless Steel
Date: 13.07.2022 > 2
With flexible racking, you can adjust to suit your load, and multiple wash features for beautifully clean dishes.
- Six wash programs to suit any load, from Delicate to Heavy
- Auto option senses the optimum wash cycle for your dishes
- Full-width utensil tray for quick access to cutlery

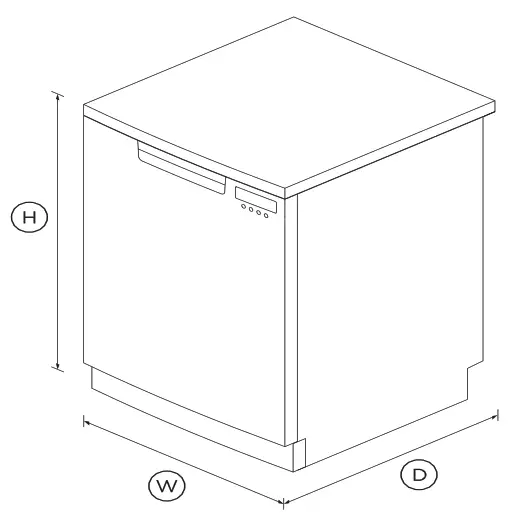

DIMENSIONS
| Height | 820 – 870mm |
| Width | 597mm |
| Depth | 600mm |
FEATURES & BENEFITS
A reliable wash
A three-stage filtration system results in a superior clean. Cup racks, wine glass supports and cutlery basket allow safe and easy cleaning of everyday items. A rinse aid indicator reminds you to top up for squeaky-clean dishes.
Flexible wash options
This dishwasher offers six wash programs including Auto, which automatically senses the optimal wash cycle for your dishes.
Easy to load
Designed to fit 15 place settings, the flexible racking system features a third sliding rack for cutlery and utensils. The middle basket, cup racks and wine glass holders are easily adjusted to accommodate different-sized dishes.
Drier dishes
ThermoDry technology removes moisture from the final hygienic hot rinse leaving your dishes with an ultra dry finish.
SPECIFICATIONS
Accessories
| Kickstrip | proud-grey |
Capacity and loading
| Accommodates round plates | 300mm |
| Adjustable height, foldable | • |
| Easy lift adjustable upper | • |
| Fold down tines | • |
| Full-width cutlery/utensil tray | • |
| Height adjustable rear wine | • |
| Place settings | 15 |
| Wine glass supports | • |
Consumption
| Energy rating | 3.5 star |
| Energy usage | 280kWh/year |
| Water rating | 5 star (WELS) |
| Water usage (per wash cycle) | 11.5L |
Controls
| Child lock | • |
| End of cycle beeps | • |
| Energy saving delay start | • |
| Rinse aid indicator light | • |
| Time remaining LED display | • |
Features
| Quiet operation | • |
| ThermoDry system | • |
| Three-stage filtration system | • |
| Variable wash pressure | • |
Performance
| Noise emissions | 47dBA |
Power requirements
| Amperage | 10A |
Product dimensions
| Depth | 600mm |
| Height | 820 – 870mm |
| Width | 597mm |
Warranty
| Parts and labor | 2 years |
Wash Programs
| Auto | • |
| Eco | • |
| Fast | • |
| Heavy | • |
| Medium | • |
| Rinse | • |
| Wash programs | 6 |
Water connection
| Water pressure | 0.1 Mpa – 1 Mpa |
| SKU | 81632 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
