FISHER PAYKEL DW60FC1X2 Freestanding Dishwasher, Sanitise User Guide
Designed to match the Contemporary family of appliances, this dishwasher offers multiple wash options and flexible loading.
- Seven wash programs from Heavy to Light, including Auto, 60min and Eco
- Dry+, Sanitise, Half Load and Intensive modifiers provide extra wash options
- Flexible freestanding installation anywhere in your kitchen
- Auto program senses the optimal wash cycle for your dishes

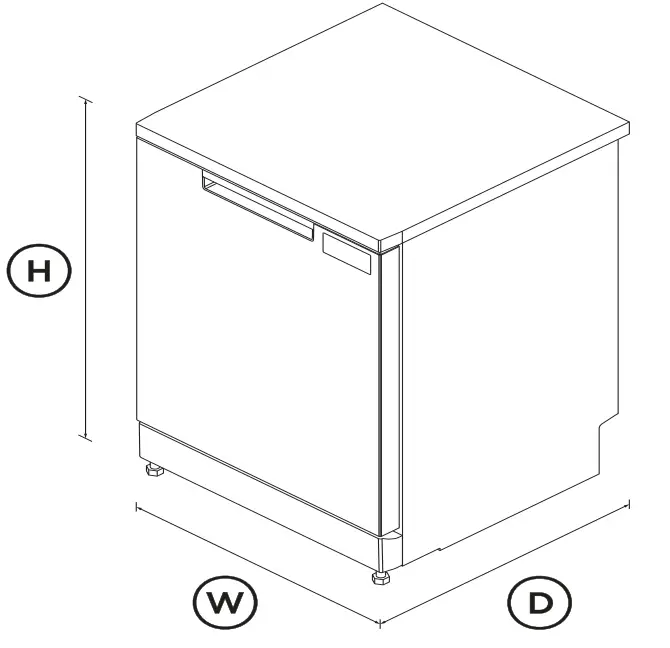

DIMENSIONS
- Height :848 – 893mm
- Width :597mm
- Depth :600mm
FEATURES & BENEFITS
CONSIDERED DESIGN
Designed to match our Contemporary style family of products, this freestanding dishwasher has a sleek stainless steel finish with a front-of-door control panel for intuitive usability.
A RELIABLE CLEAN
This dishwasher offers seven wash programs including Auto, which automatically senses the optimal wash settings for your dishes. The three-stage filtration system delivers a superior clean, while the rinse aid indicator reminds you to top up for beautifully clean dishes.
CUSTOMISE YOUR WASH
The Half Load modifier is perfect for washing a partial load, for faster turnaround of dishes. Sanitise provides extra protection, killing 99.9% of bacteria* in the final rinse, while the Dry+ modifier is great for plastic dishes. *Certified to NSF/ANSI Standard 184
EFFICIENT PERFORMANCE
With a 5 star water rating, this dishwasher delivers a powerful wash. Use the Eco wash program for optimal water and energy consumption, or choose when the cycle begins with Delay Start.
FLEXIBLE LOADING
Designed to fit 15 place settings with ease, adjustable racks help you to load and care for various items – including a upper basket, and foldable cup holders and tines.
SPECIFICATIONS
Capacity and loading
- Accommodates round plates 320mm
- Accommodates round plates 250mm
- Adjustable height, foldable •
- Fold down tines •
- Height adjustable top basket •
- Place settings 15
Consumption
- Energy rating 3.5 star
- Water rating 5 star (WELS)
Controls
- Child lock •
- Energy saving delay start •
- Intuitive capacitive touch •
- Rinse aid indicator light •
- Time remaining LED display •
Features
- Flood protection •
- Half load option •
- Internal tub material Stainless Steel
- Motor type Asynchronous
- Thermo Dry system •
- Three-stage filtration system •
Performance
- Noise emissions 48dBA
Power requirements
- Amperage 10A
- Supply frequency 50Hz
- Supply voltage 230V
Product dimensions
- Depth 600mm
- Height 848 – 893mm
- Width 597mm
Warranty
- Parts and labour 2 years
Wash Program Modifiers
- Dry + •
- Half-load •
- Sanitise •
- Wash modifiers 3
Wash Programs
- 60 min •
- Auto •
- Eco •
- Heavy •
- Light •
- Medium •
- Rinse •
- Wash programs 7
Water connection
- Water pressure Min 150kPa (22 psi) Max
- Water supply 3/4 BSP (20mm) connector
- SKU 82426
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
Other product downloads available at fisherpaykel.com
