QUICK REFERENCE GUIDE > DW60UC6B

Contents hide

1 DW60UC6B Sanitise Built-under Dishwasher

2 DIMENSIONS

3 FEATURES & BENEFITS

4 SPECIFICATIONS

5 Product dimensions

6 Warranty

7 Documents / Resources

7.1 References

8 Related Posts

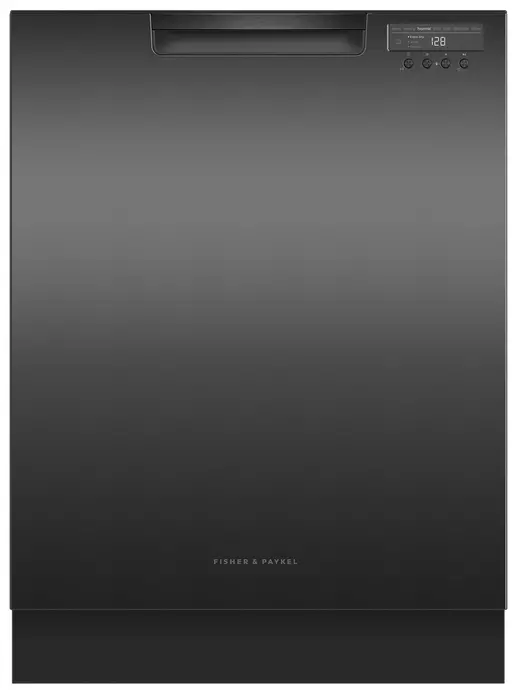

DW60UC6B Sanitise Built-under Dishwasher

Built-under Dishwasher, Sanitise
Series 7 | Contemporary
Black

Excellent wash performance; with seamless installation for a clean fit.

Designed to be built under your benchtop, fitting flush with cabinetry for a seamless look
Seven wash programs to suit any load, from Delicate to Heavy
Quick, Sanitise, and Extra Dry modifiers provide extra wash options
Auto option senses the optimum wash cycle for your dishes

DIMENSIONS

Height	820 – 880mm
Width	598mm
Depth	570mm

FEATURES & BENEFITS

Seamless design
Install this dishwasher flush under your benchtop with the option of a custom kickstrip, ensuring minimal gaps. Designed to match our companion products for a seamless finish in your kitchen.
A quality wash
This dishwasher offers seven wash programs including Auto, which automatically senses the optimal wash cycle for your dishes. The three-stage filtration system delivers a superior clean, while the rinse aid indicator reminds you to top up for squeaky-clean dishes.
Quick, Sanitise and Extra Dry options
The Quick wash modifier delivers a faster wash while maintaining performance. The Sanitise option provides extra protection killing 99.9% of bacteria in the final rinse. The Extra Dry setting is perfect for those hard to dry plastic dishes.
Efficient drying
ThermoDry technology removes moisture from the final hot rinse using natural condensation. The Extra Dry option can be added to selected wash cycles to further boost the drying performance.
Flexible stacking
Designed to fit 15 place settings, the flexible, adjustable racking lets you stack large items with ease – featuring a full-width cutlery tray, height adjustable middle rack, cup holders, and wine glass supports.
Quiet & reliable
Running at a very low decibel rating, this dishwasher does its job without making a fuss. The combination of clever technology and simple mechanics means greater reliability and superior wash performance.
Efficient performance
This dishwasher delivers a powerful wash that ensures optimal results, with a 4-star energy rating and a 5.5 star water rating. Use the Delay Start option for up to 12 hours.

SPECIFICATIONS

Accessories

Kickstrip	included
Capacity and loading
Accommodates round plates	300mm
Adjustable height, foldable	•
Easy lift adjustable upper	•
Fold down tines	•
Full width cutlery/utensil tray	•
Height adjustable rear wine	•
Pitch adjustable tines	•
Place settings	15
Wine glass supports	•
Consumption
Energy rating	4 star
Energy usage	246kWh/year
Water rating	5.5 star (WELS)
Water usage (per wash cycle)	11.1L
Controls
Child lock	•
End of cycle beeps	•
Energy saving delay start	•
Rinse aid indicator light	•
Time remaining LED display	•
Features
Quiet operation	•
ThermoDry system	•
Three-stage filtration system	•
Variable wash pressure	•
Performance
Noise emissions	44dBA
Power requirements
Amperage	10A

Product dimensions

Depth	570mm
Height	820 – 880mm
Width	598mm

Warranty

Parts and labour	2 years
Wash Program Modifiers
Extra Dry	•
Half-load	•
Quick	•
Sanitise	•
Wash modifiers	4
Wash Programs
Auto	•
Delicate	•
Eco	•
Fast	•
Heavy	•
Medium	•
Rinse	•
Wash programs	7
Water connection
Water pressure	0.1 Mpa – 1 Mpa
SKU	82157

The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020

Other product downloads available at fisherpaykel.com
