QUICK REFERENCE GUIDE > DW60FC6X1

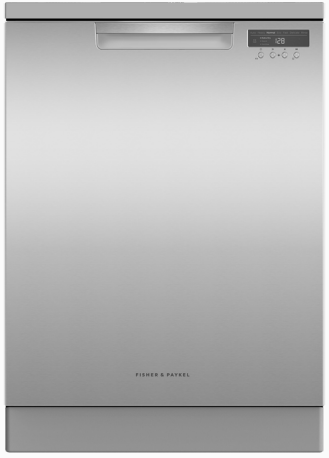

Freestanding Dishwasher,
Sanitise
Series 7 | Contemporary
Stainless Steel
User Guide
With flexible racking you can adjust to suit your load, and multiple wash features for beautifully clean dishes.
- Six wash programs, as well as additional Quick wash, Sanitise and Extra Dry options
- Auto option senses the optimum wash cycle for your dishes
- Full width utensil tray for quick access to cutlery

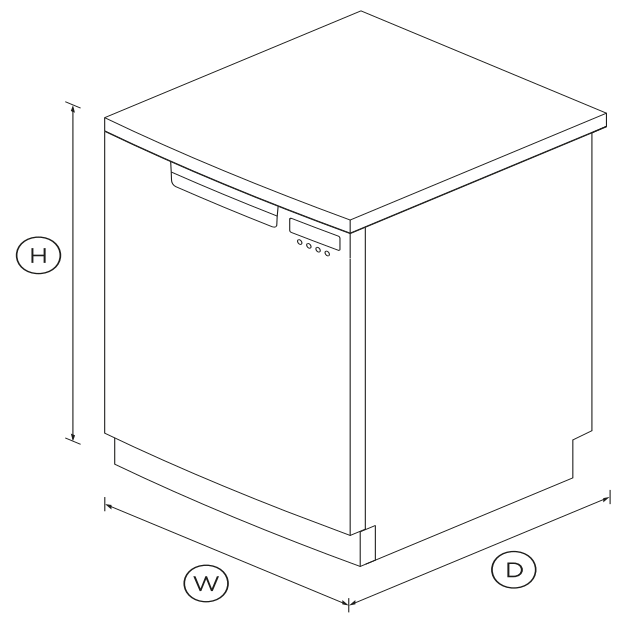

DIMENSIONS
| Height | 820 – 870mm |
| Width | 597mm |
| Depth | 600mm |
FEATURES & BENEFITS
Quick, Sanitise and Extra Dry options
The Quick wash modifier delivers a faster wash while maintaining performance. The Sanitise option provides extra protection, killing 99.9% of bacteria in the final rinse. The Extra Dry setting is perfect for plastic dishes.
A reliable wash
The three-stage filtration system results in a superior clean. Cup racks, wine glass supports and a utensil tray allow safe and easy cleaning of everyday items. A rinse aid indicator reminds you to top up for squeaky-clean dishes.
Flexible wash options
This dishwasher offers six wash programs with extra wash modifiers, including ‘Auto’ which automatically senses the optimal wash cycle for your dishes.
Easy to load
Designed to fit 15 place settings, the flexible racking system features a third sliding rack for cutlery and utensils. The middle basket, cup racks and wine glass holders are easily adjusted to accommodate different sized dishes.
SPECIFICATIONS
| Accessories | |
| Kickstrip | proud-grey |
| Capacity and loading | |
| Accommodates round plates | 300mm |
| Adjustable height, foldable | • |
| Easy lift adjustable upper | • |
| Fold down tines | • |
| Full width cutlery/utensil tray | • |
| Height adjustable rear wine | • |
| Pitch adjustable tines | • |
| Place settings | 15 |
| Wine glass supports | • |
| Consumption | |
| Energy rating | 4 star |
| Energy usage | 246kWh/year |
| Water rating | 5.5 star (WELS) |
| Water usage (per wash cycle) | 11.5L |
| Controls | |
| Child lock | • |
| End of cycle beeps | • |
| Energy saving delay start | • |
| Rinse aid indicator light | • |
| Time remaining LED display | • |
| Features | |
| Quiet operation | • |
| ThermoDry system | • |
| Three-stage filtration system | • |
| Variable wash pressure | • |
| Performance | |
| Noise emissions | 43dBA |
| Power requirements | |
| Amperage | 10A |
| Product dimensions | |
| Depth | 600mm |
| Height | 820 – 870mm |
| Width | 597mm |
| Warranty | |
| Parts and labour | 2 years |
| Wash Program Modifiers | |
| Extra Dry | • |
| Half-load | • |
| Quick | • |
| Sanitise | • |
| Wash modifiers | 4 |
| Wash Programs | |
| Auto | • |
| Delicate | • |
| Eco | • |
| Fast | • |
| Heavy | • |
| Medium | • |
| Rinse | • |
| Wash programs | 7 |
| Water connection | |
| Water pressure | 0.1 Mpa – 1 Mpa |
| SKU | 81630 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
