QUICK REFERENCE GUIDE > DW60FC4X2
Freestanding Dishwasher,
Sanitise
Series 7 | Contemporary
Stainless Steel

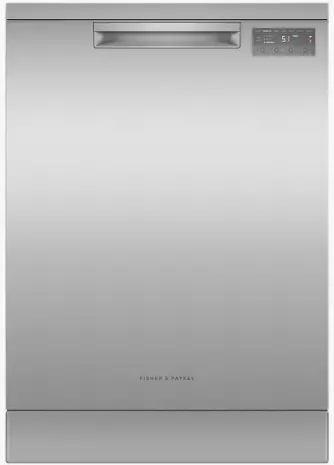

DW60FC4X2 Freestanding Dishwasher
Offering a superior wash performance and advanced drying, this dishwasher features adjustable storage for easy loading.
- Seven wash programs from Heavy to Light, including Auto, 60min and Eco
- Dry+, Sanitise, Half Load and Intensive modifiers provide extra wash options
- Flexible freestanding installation anywhere in your kitchen
- Wi-Fi enabled and works with the SmartHQ™ app for remote control and notifications
DIMENSIONS
| Height | 848 – 893mm |
| Width | 597mm |
| Depth | 600mm |
FEATURES & BENEFITS
CONSIDERED DESIGN
Designed to match our Contemporary style family of products, this freestanding dishwasher has a sleek stainless steel finish with a front-of-door control panel for intuitive usability.
ADVANCED DRYING
For beautifully dry dishes every time, this dishwasher features an advanced drying system that combines fan-assisted drying and automatic door opening at the end of the cycle. By opening to release excess steam, Auto Door Open Dry helps to ensure your dishes come out dry and ready to use or store.
A RELIABLE CLEAN
This dishwasher offers seven wash programs including Auto, which automatically senses the optimal wash settings for your dishes. The three-stage filtration system delivers a superior clean, while the rinse aid indicator reminds you to top up for beautifully clean dishes.
CUSTOMISE YOUR WASH
Create the perfect wash with our range of modifiers, from Intensive for a thorough clean to Half Load, ideal for a partial load. The Sanitise modifier provides extra rotection, killing 99.9% of bacteria* in the final rinse, while Dry+ is great for plastic dishes. *Certified to NSF/ANSI Standard 184
QUIET PERFORMER
Running at a very low decibel rating, this dishwasher does its job without making a fuss. The combination of clever technology and simple mechanics means greater reliability and superior wash
performance, with minimal noise.
EFFICIENT PERFORMANCE
With a 4.5 star energy rating and 5.5 star water rating, this dishwasher delivers a powerful wash. Use the Eco wash program for optimal water and energy consumption, or choose when the cycle begins with Delay Start.
FLEXIBLE LOADING
Designed to fit 15 place settings, this spacious model lets you stack large items with ease. Adjustable rack options provide flexibility for any load, with a full-width cutlery tray, heightadjustable middle rack, cup holders and wine glass supports.
SPECIFICATIONS
| Capacity and loading | |
| Accommodates round plates | 320mm |
| Accommodates round plates | 200mm (with cutlery tray), |
| Adjustable height, foldable | • |
| Easy lift adjustable upper | • |
| Fold down tines | • |
| Full width cutlery/utensil tray | • |
| Large crockery insert in lower | • |
| Place settings | 15 |
| Telescopic slides | • |
| Wine glass supports with | • |
| Consumption | |
| Energy rating | 4.5 star |
| Water rating | 5.5 star (WELS) |
| Controls | |
| Child lock | • |
| Energy saving delay start | • |
| Internal light | • |
| Intuitive capacitive touch | • |
| Rinse aid indicator light | • |
| Time remaining LED display | • |
| Wi-Fi connectivity | • |
| Features | |
| Air curtain for bench | • |
| Aquastop | • |
| Auto Door Open Dry | • |
| Fan assisted drying | • |
| Flood protection | • |
| Fully independent spray arms | • |
| Half load option | • |
| Internal tub material | Stainless Steel |
| Motor type | BLDC |
| Three-stage filtration system | • |
| Performance | |
| Noise emissions | 42dBA |
| Power requirements | |
| Amperage | 10A |
| Supply frequency | 50Hz |
| Supply voltage | 230V |
| Product dimensions | |
| Depth | 600mm |
| Height | 848 – 893mm |
| Width | 597mm |
| Warranty | |
| Parts and labour | 2 years |
| Wash Program Modifiers | |
| Dry + | • |
| Half-load | • |
| Intensive | • |
| Sanitise | • |
| Wash modifiers | 4 |
| Wash Programs | |
| 60 min | • |
| Auto | • |
| Eco | • |
| Heavy | • |
| Light | • |
| Medium | • |
| Rinse | • |
| Wash programs | 7 |
| Water connection | |
| Water pressure | Min 150 kPa (22 psi) Max 827 |
| Water supply | 3/4 BSP (20mm) connector |
| SKU | 82432 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
Other product downloads available at fisherpaykel.com
