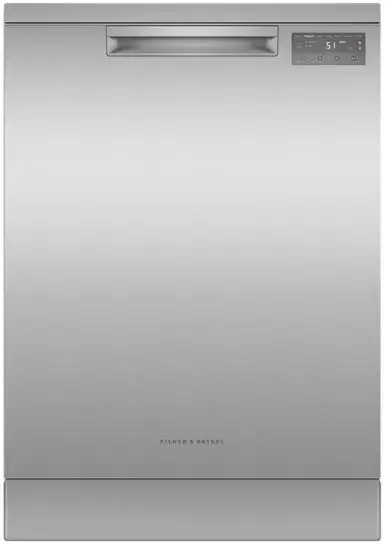

Fisher and Paykel DW60FC2X2 Freestanding Dishwasher

Designed to match the Contemporary family of appliances, this dishwasher delivers multiple wash options and Auto Door Open Dry.

Seven wash programs from Heavy to Light, including Auto, 60min and Eco.
Dry+, Sanitise, Half Load and Intensive modifiers provide extra wash options.
Flexible freestanding installation anywhere in your kitchen.
Impressive 4 star energy rating and 5 star (WELS) water ratings.

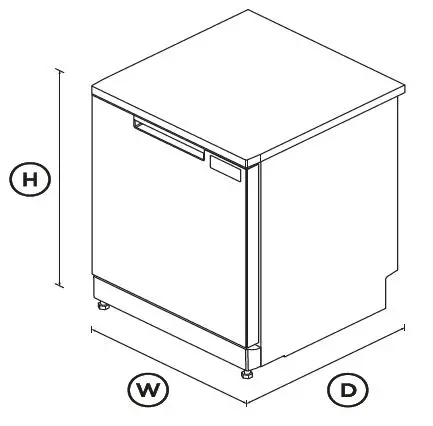

DIMENSIONS

Height: 848 – 893mm
Width: 597mm
Depth: 600mm

FEATURES & BENEFITS

CONSIDERED DESIGN
Designed to match our Contemporary style family of products, this freestanding dishwasher has a sleek stainless steel finish with a front-of-door control panel for intuitive usability.
EFFORTLESS DRYING
For beautifully dry dishes, this dishwasher features automatic door opening at the end of the cycle to release excess steam. Making unloading more convenient, the Auto Door Open Dry feature helps to ensure dishes come out dry and ready to use or store.
A RELIABLE CLEAN
This dishwasher offers seven wash programs including Auto, which automatically senses the optimal wash settings for your dishes. The three-stage filtration system delivers a superior clean, while the rinse aid indicator reminds you to top up for beautifully clean dishes.
CUSTOMISE YOUR WASH
The Half Load modifier is perfect for washing a partial load, for faster turnaround of dishes. Sanitise provides extra protection, killing 99.9% of bacteria* in the final rinse, while the Dry+ modifier is great for plastic dishes. *Certified to NSF/ANSI Standard 184
EFFICIENT PERFORMANCE
With a 4 star energy rating and 5 star water rating, this dishwasher delivers a powerful wash. Use the Eco wash program for optimal water and energy consumption, or choose when the cycle begins with Delay Start.
FLEXIBLE LOADING
Designed to fit 15 place settings with ease, adjustable racks help you to load and care for various items – including a heightadjustable upper basket, and foldable cup holders and tines.

SPECIFICATIONS

Capacity and loading

Accommodates round plates	320mm
Accommodates round plates	250mm
Adjustable height, foldable	•
Easy lift adjustable upper	•
Fold down tines	•
Place settings	15

Consumption

Energy rating	4 star
Energy usage	246kWh/year
Water consumption (per wash	12.2L
Water efficiency	5 star (WELS)

Controls

Child lock	•
Energy saving delay start	•
Intuitive capacitive touch	•
Rinse aid indicator light	•

Features

Aquastop	•
Auto Door Open Dry	•
Flood protection	•
Half load option	•
Internal tub material	Stainless Steel
Motor type	Asynchronous
ThermoDry system	•
Three-stage filtration system	•

Performance

Noise emissions

46dBA

Power requirements

Amperage	10A
Supply frequency	50Hz
Supply voltage	240V

Product dimensions

Depth	600mm
Height	848 – 893mm
Width	597mm

Warranty

Parts and labor

2 years

Wash Program Modifiers

Dry +	•
Half-load	•
Sanitise	•
Wash modifiers	3

Wash Programs

60 min	•
Auto	•
Eco	•
Heavy	•
Light	•
Medium	•
Rinse	•
Wash programs	7

Water connection

Water pressure	30kPa – 1000 kPa
Water supply	3/4″ BSP (20mm) Connector

SKU

82427

The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020.

Other product downloads available at fisherpaykel.com.
