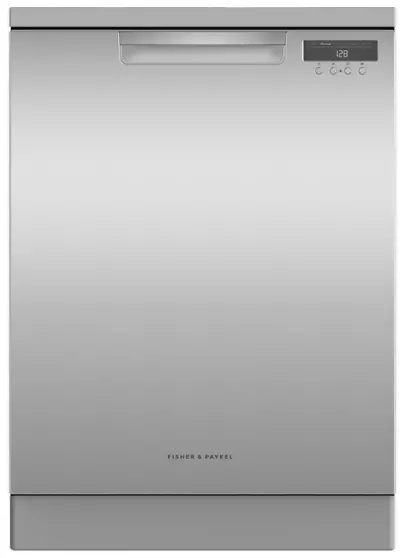

Fisher and Paykel DW60FC2X1 Freestanding Dishwasher User Guide
Introduction
With flexible racking you can adjust to suit your load, and multiple wash features for beautifully clean dishes.
- Six wash programs to suit any load from Delicate to Heavy
- Auto option senses the optimum wash cycle for your dishes

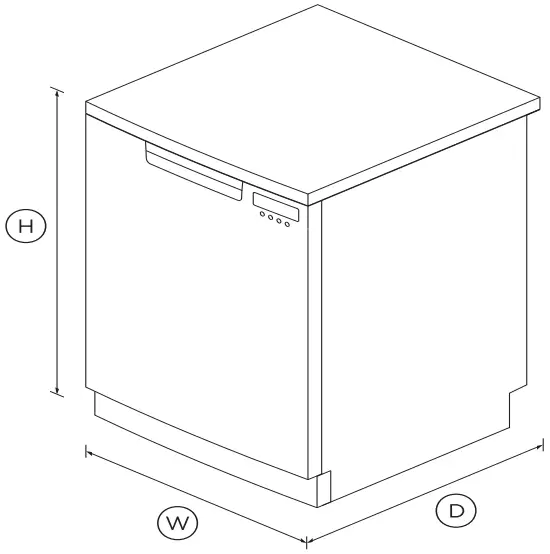

DIMENSIONS
| Height | 820 – 870mm |
| Width | 597mm |
| Depth | 600mm |
FEATURES & BENEFITS
A RELIABLE WASH
A three stage filtration system results in a superior clean.
Cup racks, wine glass supports and cutlery basket allow safe and easy cleaning of everyday items.
A rinse aid indicator reminds you to top up for squeaky-clean dishes.
FLEXIBLE WASH OPTIONS
This dishwasher offers six wash programs including Auto, which automatically senses the optimal wash cycle for your dishes.
QUIET PERFORMER
Running at a low decibel rate, these dishwashers do their job without making a fuss.
Even the end of cycle alerts can be turned off.
EASY TO LOAD
Designed to fit 15 place settings, the middle basket, cup racks and wine glass holders are easily adjusted to accommodate different sized dishes.
SPECIFICATIONS
| Accessories | |
| Cutlery basket | • |
| Kick strip | Proud grey |
| Capacity and loading | |
| Accommodates round plates | 300mm |
| Adjustable height, foldable | • |
| Easy lift adjustable upper | • |
| Fold down tines | • |
| Place settings | 15 |
| Wine glass supports | • |
| Consumption | |
| Energy rating | 3.5 star |
| Energy usage | 286 kWh/year |
| Water rating | 5 star (WELS) |
| Water usage (per wash cycle) | 11.4L |
| Controls | |
| Child lock | • |
| End of cycle beeps | • |
| Energy saving delay start | • |
| Rinse aid indicator light | • |
| Time remaining LED display | • |
| Features | |
| Quiet operation | • |
| Thermo Dry system | • |
| Three-stage filtration system | • |
| Variable wash pressure | • |
| Performance | |
| Noise emissions | 47dBA |
| Power requirements | |
| Amperage | 10A |
| Product dimensions | |
| Depth | 600mm |
| Height | 820 – 870mm |
| Width | 597mm |
| Warranty | |
| Parts and labour | 2 years |
| Wash Programs | |
| Auto | • |
| Eco | • |
| Fast | • |
| Heavy | • |
| Medium | • |
| Rinse | • |
| Wash programs | 6 |
| Water connection | |
| Water pressure | 0.1 Mpa – 1 Mpa |
| SKU | 81634 |
The product dimensions and specifications in this page apply to the specific product and model.
Under our policy of continuous improvement, these dimensions and specifications may change at any time.
You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
Other product downloads available at: fisherpaykel.com
