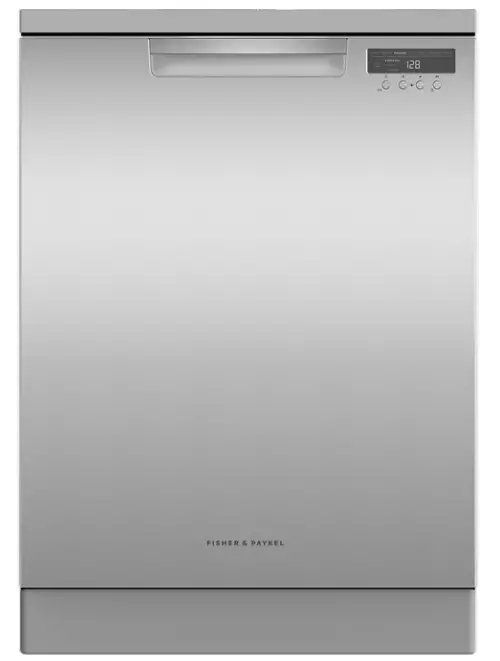

Fisher and Paykel DW60FC6X1 Freestanding Dishwasher Sanitise

Fisher and Paykel DW60FC6X1 Freestanding Dishwasher Sanitise

With flexible racking you can adjust to suit your load, and multiple wash features for beautifully clean dishes.

  • Six wash programs, as well as additional Quick wash, Sanitise and Extra Dry options
  • Auto option senses the optimum wash cycle for your dishes
  • Full width utensil tray for quick access to cutlery

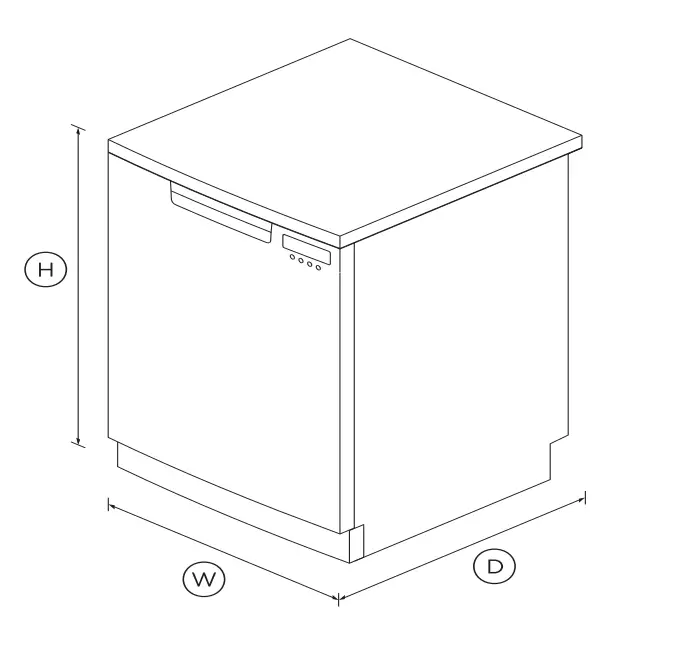

DIMENSIONS

Dimensions

Height: 820 – 870mm
Width: 597mm
Depth: 600mm

FEATURES & BENEFITS

QUICK, SANITISE AND EXTRA DRY OPTIONS

The Quick wash modifier delivers a faster wash while maintaining performance. The Sanitise option provides extra protection, killing 99.9% of bacteria in the final rinse. The Extra Dry setting is perfect for plastic dishes.

A RELIABLE WASH

The three-stage filtration system results in a superior clean. Cup racks, wine glass supports and a utensil tray allow safe and easy cleaning of everyday items. A rinse aid indicator reminds you to top up for squeaky-clean dishes.

FLEXIBLE WASH OPTIONS

This dishwasher offers six wash programs with extra wash modifiers, including ‘Auto’ which automatically senses the optimal wash cycle for your dishes.

EASY TO LOAD

Designed to fit 15 place settings, the flexible racking system features a third sliding rack for cutlery and utensils. The middle basket, cup racks and wine glass holders are easily adjusted to accommodate different sized dishes.

SPECIFICATIONS

Accessories

Kickstrip    proud-grey

Capacity and loading
Capacity and loading
Accommodates round plates300mm
Adjustable height, foldable
Easy lift adjustable upper
Fold down tines
Full width cutlery/utensil tray
Height adjustable rear wine
Pitch adjustable tines
Place settings15
Wine glass supports
Consumption
Energy rating4 star
Energy usage246kWh/year
Water rating5.5 star (WELS)
Water usage (per wash cycle)11.5L
Controls
Child lock
End of cycle beeps
Energy saving delay start
Rinse aid indicator light
Time remaining LED display
Features
Quiet operation
ThermoDry system
Three-stage filtration system
Variable wash pressure
Performance
Noise emissions43dBA
Power requirements
Amperage10A
Product dimensions
Depth600mm
Height820 – 870mm
Width597mm
Warranty
Parts and labour2 years
Wash Program Modifiers
Extra Dry
Half-load
Quick
Sanitise
Wash modifiers4
Wash Programs
Auto
Delicate
Eco
Fast
Heavy
Medium
Rinse
Wash programs7
Water connection
Water pressure0.1 Mpa – 1 Mpa
SKU81630

The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
