QUICK REFERENCE GUIDE > DW60FC2X1
Freestanding Dishwasher

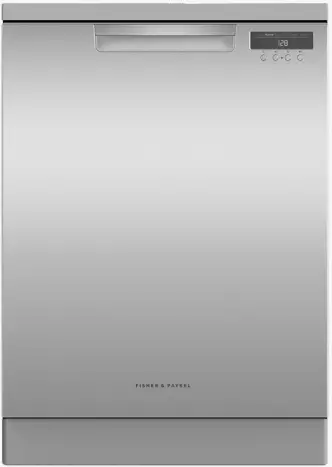

DW60FC2X1 15 Places Setting Freestanding Dishwasher
Series 5 | Contemporary
Stainless Steel
With flexible racking, you can adjust it to suit your load and multiple wash features for beautifully clean dishes.
- Six wash programs to suit any load from Delicate to Heavy
- Auto option senses the optimum wash cycle for your dishes

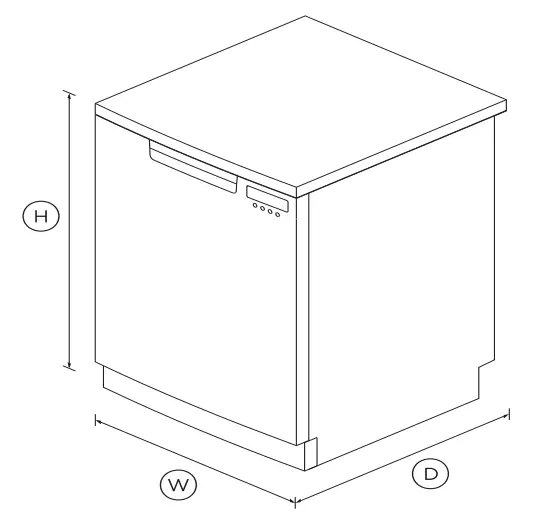

DIMENSIONS
| Height | 820 – 870mm |
| Width | 597mm |
| Depth | 600mm |
FEATURES & BENEFITS
A reliable wash
A three-stage filtration system results in a superior clean. Cup racks, wine glass supports, and cutlery baskets allow safe and easy cleaning of everyday items. A rinse aid indicator reminds you to top up for squeaky-clean dishes.
Flexible wash options
This dishwasher offers six wash programs including Auto, which automatically senses the optimal wash cycle for your dishes.
Quiet performer
Running at a low decibel rate, these dishwashers do their job without making a fuss. Even the end-of-cycle alerts can be turned off.
Easy to load
Designed to fit 15 place settings, the middle basket, cup racks, and wine glass holders are easily adjusted to accommodate different-sized dishes.
SPECIFICATIONS
Accessories
| Cutlery basket | • |
| Kickstrip | Proud grey |
Capacity and loading
| Accommodates round plates | 300mm |
| Adjustable height, foldable | • |
| Easy lift adjustable upper | • |
| Fold down tines | • |
| Place settings | 15 |
| Wine glass supports | • |
Consumption
| Energy rating | 3.5 star |
| Energy usage | 286 kWh/year |
| Water rating | 5-star (WELS) |
| Water usage (per wash cycle) | 11.4L |
Controls
| Child lock | • |
| End of cycle beeps | • |
| Energy saving delay start | • |
| Rinse aid indicator light | • |
| Time remaining LED display | • |
Features
| Quiet operation | • |
| ThermoDry system | • |
| Three-stage filtration system | • |
| Variable wash pressure | • |
Performance
| Noise emissions | 47dBA |
Power requirements
| Amperage | 10A |
Product dimensions
| Depth | 600mm |
| Height | 820 – 870mm |
| Width | 597mm |
Warranty
| Parts and labour | 2 years |
Wash Programs
| Auto | • |
| Eco | • |
| Fast | • |
| Heavy | • |
| Medium | • |
| Rinse | • |
| Wash programs | 6 |
Water connection
| Water pressure | 0.1 Mpa – 1 Mpa |
| SKU | 81634 |
The product dimensions and specifications on this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
