HARMAN
quick
START GUIDE
PartyBoxEncore

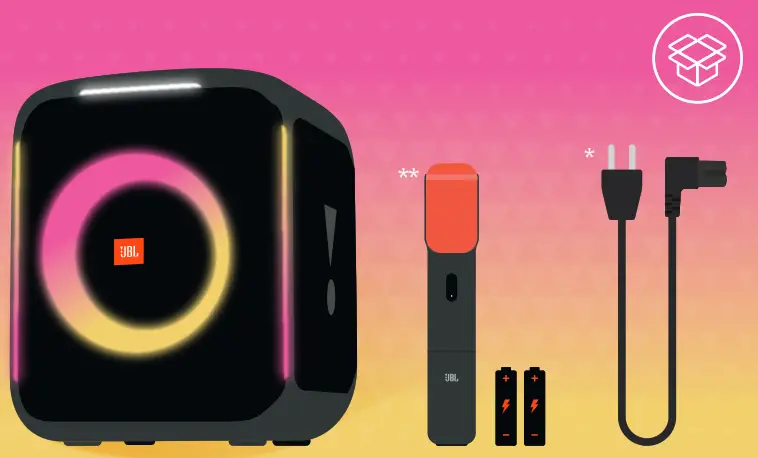

WHAT’S IN THE BOX
* Power cord quantity and plug type vary by region.
** MICROPHONE QUANTITY VARIES BY REGION.

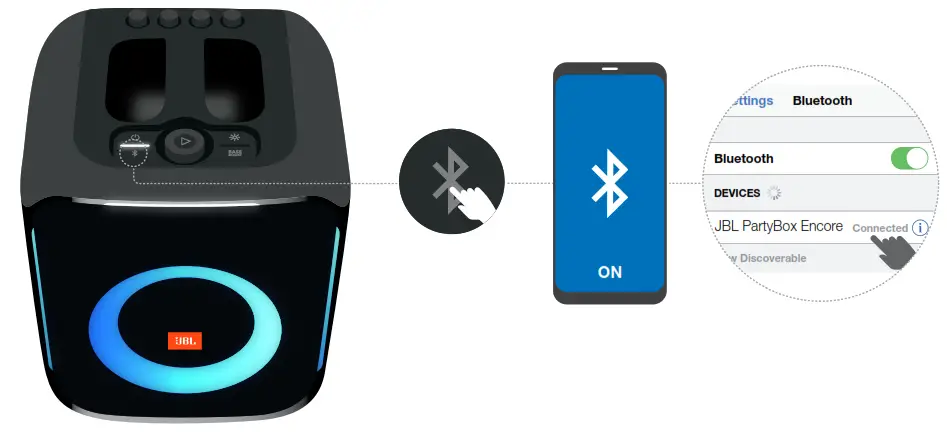

Bluetooth pairing

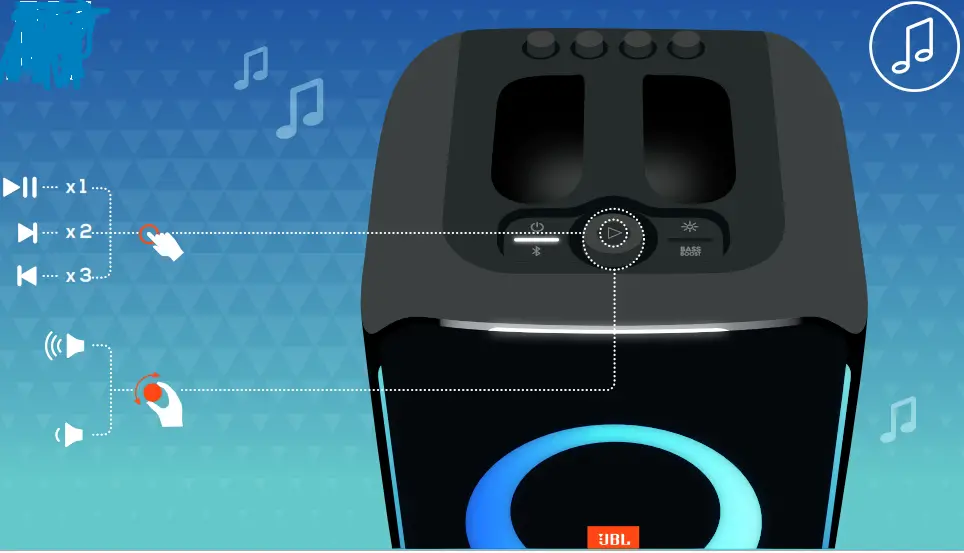

Play

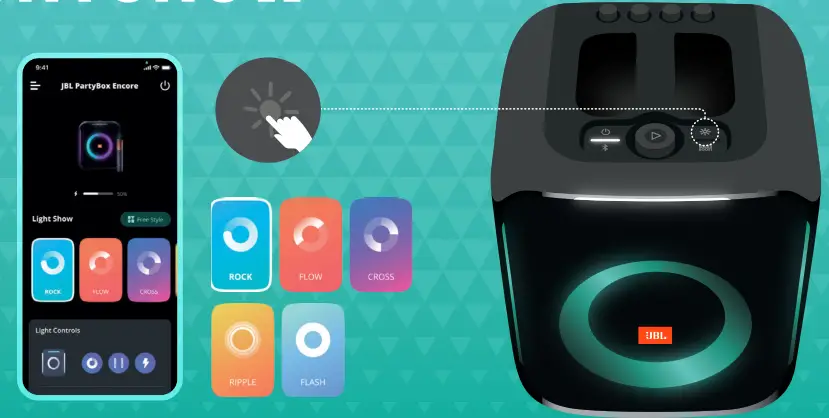

Lightshow
Lightshow

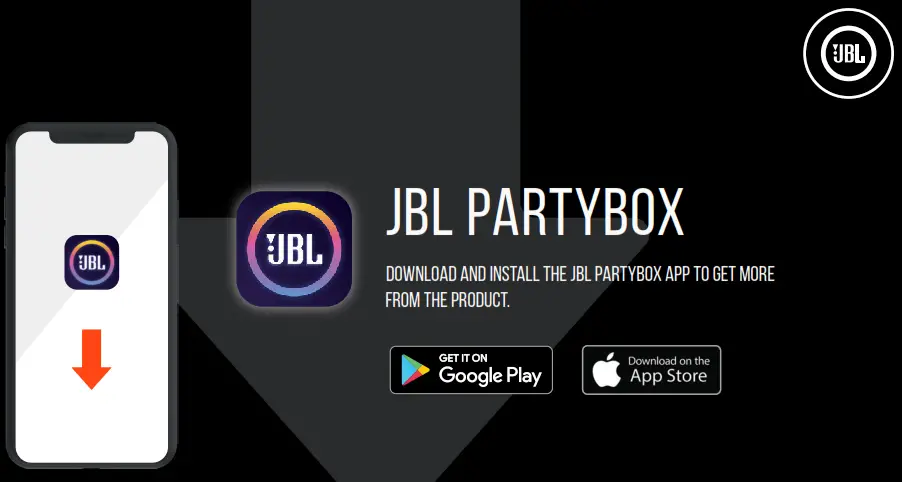

APP

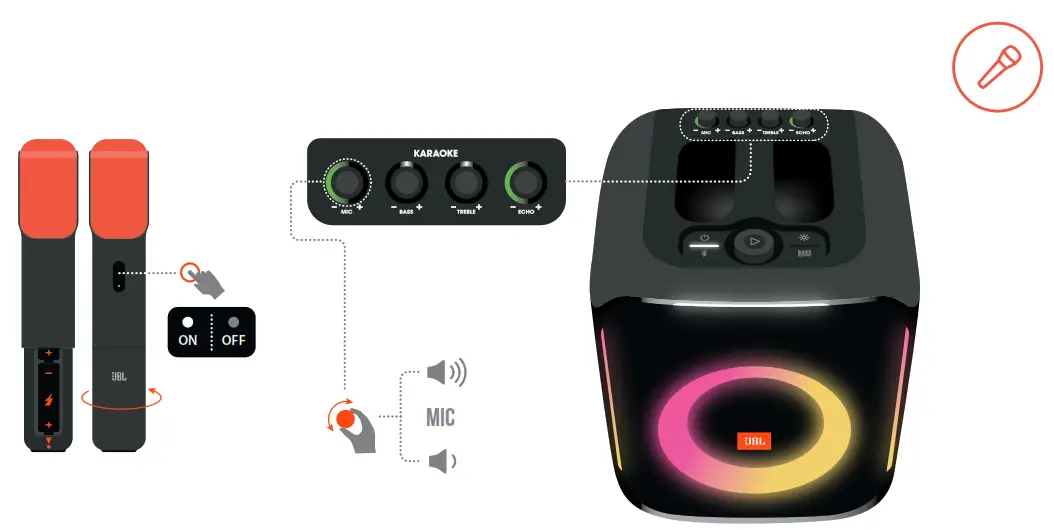

Microphone

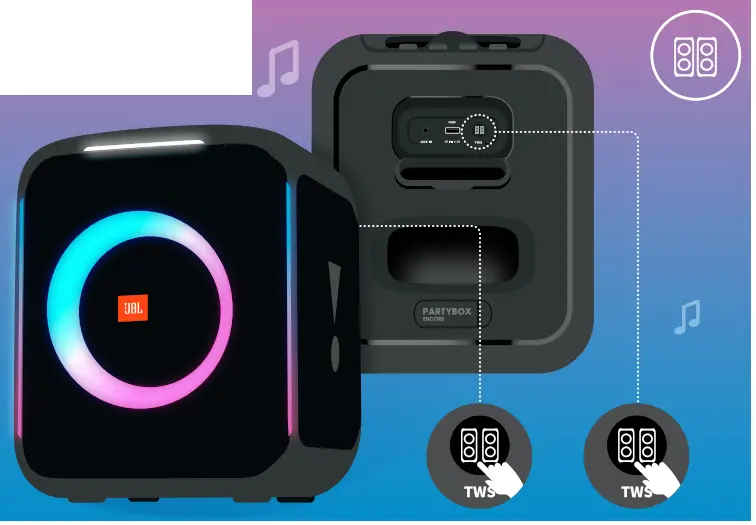

True Wireless Stereo

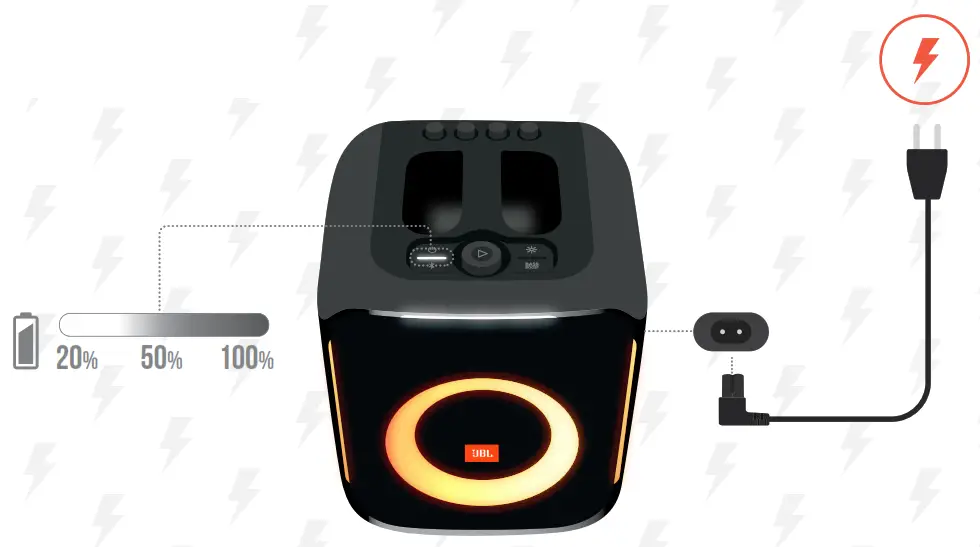

Charging
Splash proof IPX4
TECH SPEC
TECH SPEC| Transducers: | 1 x 5.25-inch woofer, 2 x 1.75-inch tweeter |
| Output power: | 100 W RMS |
| Power input: | 100-240 V ~ / 50-60 Hz |
| Frequency response: | 50 Hz – 20 kHz @-6 dB |
| Signal-to-noise ratio: | > 80 dB |
| Battery type: | Li-ion polymer 27.0 Wh (equivalent to 3.6 V / 7500 mAh) |
| Battery charge time: | 3.5 hours |
| Music play time: | up to 10 hours (dependent on volume level and audio content) |
| USB format: | FAT16, FAT32 |
| USB file format: | .mp3, .wma, .wav |
| USB charge out: | 5 V / 0.5 A (maximum) |
| Cable type: | AC Power Cable |
| Cable length: | 2000 mm / 78.7” |
| Bluetooth® version: | 5.1 |
| Bluetooth® profile: | A2DP 1.3, AVRCP 1.6 |
| Bluetooth® transmitter | |
| frequency range: | 2.4 GHz – 2.4835 GHz |
| Bluetooth® transmitter power: | < 9 dBm (EIRP) |
Bluetooth® transmitted | |
| modulation: | GFSK, π/4 DQPSK, 8DPSK |
| Product dimensions (W x H x D): | 276 mm x 327 mm x 293 mm/ 10.87” x 12.87” x 11.54” |
| Net weight: | 6.3 kg / 13.89 lbs |
| Packaging dimensions | 472 mm x 354 mm x 326 mm / |
| (W x H x D): | 18.58” x 13.94” x 12.83” |
| Gross weight: | 8.34 kg / 18.39 lbs |
Wireless microphone spec
| Frequency response: | 60 Hz – 15.8 kHz |
| Signal-to-noise ratio: | > 65 dB |
| Transmitter transmitting power: Distance between transmitter | < 10 mW |
| and receiver: | ≤ 20 m |
Note: The product is in compliance with the European Union energy legislation.
- Bluetooth/TWS connection mode
The product is intended to be used for streaming music via a Bluetooth connection. A consumer can stream Bluetooth audio to the speaker. When the product is connected through Bluetooth, the Bluetooth connection must remain active at all times to ensure proper operation.
The product will enter sleep mode (networked standby) after 20 minutes without operation. The power consumption in sleep mode is less than 2.0 Watts, after which it can be re-activated via Bluetooth connection. - another mode
The product will enter standby mode after 20 minutes without operation. The power consumption in standby mode is less than 0.5 Watts.
The maximum operating temperature is 45 °C No naked flame sources, such as lighted candles, should be placed on the apparatus.
This equipment is a Class II or double insulated electrical appliance
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.
PA_JBL_PartyBox Encore_QSG_EMEA (1 mic)_SOP_V2
