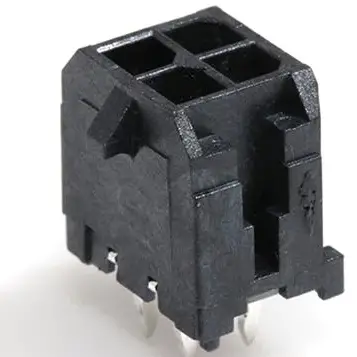

Molex 0430450414 Headers & Wire Housings Microfit Connector
Documents:
- Drawing (PDF)
- 3D Model (PDF)
- 3D Model
- Product Specification 430450001-PS-KO-000 (PDF)
- Product Specification 430450001-PS-SP-000 (PDF)
- Product Specification PS-43045-001 (PDF)
- Packaging Specification PK-70873-0314-001 (PDF)
- Test Summary 430450006-TS-000 (PDF)
- Test Summary TS-43045-001-001 (PDF)
- Test Summary TS-43045-002-001 (PDF)
- Test Summary TS-46235-001-001 (PDF)
- Datasheet (PDF)
- Symbol Footprint Data SYM-43045-0412-001 (PDF)
- Symbol Footprint Data SYM-43045-041X-001 (PDF)
- RoHS Certificate of Compliance (PDF)
Agency Certification
- CSA: LR19980
- UL: E29179
General
- Product Family: PCB Headers
- Series: 43045
- Application: Power, Wire-to-Board
- comments
High Temperature|Square Pin|Offset Through Hole Mounting|Solder Type<P><P>This Molex product is manufactured from a material that has the following ratings, tested by independent agencies:. a) A Glow Wire Ignition Temperature (GWIT) of at least 775 deg C per IEC 60695-2-13.. b) A Glow Wire Flammability Index (GWFI) above 850 deg C per IEC 60695-2-12.and hence complies with the requirements set out in the International Standard IEC 60335-1 5th edition – household and similar electrical appliances – safety, section 30 Resistance to heat and fire. <P><P> The customers using this product must determine its suitability for use in their particular application through testing or other acceptable means as described in end-product glow-wire flammability test standard IEC 60695-2-11 and any applicable product end-use standard(s). <P> If it is determined during the customer’s evaluation of suitability, that higher performance is required, please contact Molex for possible product options.
- Overview: Micro-Fit Connector System
- Product Name: Micro-Fit 3.0
- UPC: 800754370615
Physical
- Breakaway: No
- Circuits (Loaded): 4
- Circuits (maximum): 4
- Color – Resin: Black
- Durability (mating cycles max): 30
- Flammability: 94V-0
- Glow-Wire Capable: Yes
- Mated Height: 17.64mm
- Material – Metal Brass
- Material – Plating Mating Gold
- Material – Plating Termination Tin
- Material – Resin High-Temperature Thermoplastic
- Net Weight 0.729/g
- Number of Rows 2
- Orientation Vertical
- PCB Locator Yes
- PCB Retention Yes
- PCB Thickness – Recommended 1.60mm
- Packaging Type Tray
- Pitch – Mating Interface 3.00mm
- Plating min – Mating 0.762µm
- Polarized to PCB Yes
- Shrouded Fully
- Stackable No
- Surface Mount Compatible (SMC) Yes
- Temperature Range – Operating -40° to +125°C
- Termination Interface: Style Through Hole – Kinked Pin
- Electrical
- Current – Maximum per Contact 8.5A
- Voltage – Maximum 600V
- Solder Process Data
- Duration at Max. Process Temperature (seconds) 030
- Lead-freeProcess Capability SMC&WAVE
- Max. Cycles at Max. Process Temperature 003
- Process Temperature max. C 260
- Material Info
- Reference – Drawing Numbers
- Packaging Specification PK-70873-0314-001
- Product Specification 430450001-PS-KO-000, 430450001-PS-SP-000, PS-43045-001
- Sales Drawing SD-43045-005-001
- Symbol/Footprint Data SYM-43045-0412-001, SYM-43045-041X-001
- Test Summary 430450006-TS-000, TS-43045-001-001, TS-43045-002-001, TS-46235-001-001
EU ELV
Not Relevant
EU RoHS
China RoHS Compliant
REACH SVHC
Not Contained Per – D(2021)4569-DC (8 July 2021) Halogen-Free Status Low-Halogen For more information, please visit Contact US
- China ROHS Green Image
- ELV Not Relevant
- RoHS Phthalates Not Contained
Search Parts in this Series
- 43045 Series
Mates With Micro-Fit 3.0 Receptacle Housing 43025 <br>Micro-Fit 3.0 TPA Receptacle Housing 172952 <br> Micro-Fit 3.0 Cable Assembly 214755, 214756
