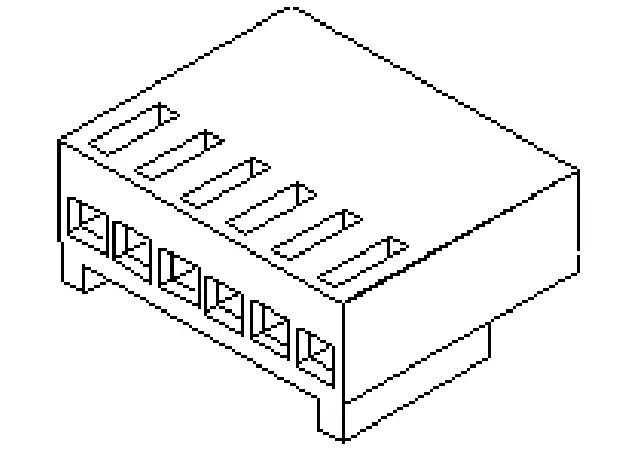

molex 0022011032 Header and Wire Housings
IN production
EU ELV
Not Relevant
EU RoHS China RoHS
Compliant
REACH SVHC
Not Contained Per –
D(2021)4569-DC (8
July 2021)
Halogen-Free
Status
Low-Halogen
For more information, please visit Contact US
China ROHS Green Image
ELV Not Relevant
RoHS Phthalates Not Contained
| Search Parts in this Series 5051 Series |
| Mates With Vertical Header 5045 <br> Right Angle Header 5046 |
| Use With KK 254 Crimp Terminal 2759 <br> KK Cat Ear Crimp Terminal 5159 <br> KK 254 PreCrimped Leads 797580007 , 797580015 |
Documents
Agency Certification
| UL | E29179 |
General
| Product Family | Crimp Housings |
| Series | 5051 |
| Application | Signal, Wire-to-Board |
| Overview | KK Interconnect Solutions Product Name |
| Product Name | KK |
| UPC | 800753594340 |
Physical
| Circuits (maximum) | 3 |
| Color – Resin | Natural |
| Flammability | 94V-0 |
| Gender | Receptacle |
| Glow-Wire Capable | No |
| Material – Resin | Nylon |
| Net Weight | 433.800/mg |
| Number of Rows | 1 |
| Packaging Type | Bag |
| Panel Mount | No |
| Pitch – Mating Interface | 2.50mm |
| Stackable | No |
| Temperature Range – Operating | -40° to +105°C |
Material Info
| Engineering Number | 5051-03 |
Reference – Drawing Numbers
| Packaging Specification | SPK-5051-001-001 |
| Product Specification | 50510000-000, 50510002-PS-000, PS-5045-001-001, PS-5045-002-001, PS-5045-003-001, PS-5045-004-001, PS-5051-005-001, PS-5051-006-001, PS-5102-004-001 Sales Drawing SD-5051-001-001 |
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
