0151341205 Cable Assembly
This document was generated on 04/30/2021
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
| Part Number: | 0151341205 |
| Status: | Active |
| Overview: | PicoBlade Connector System |

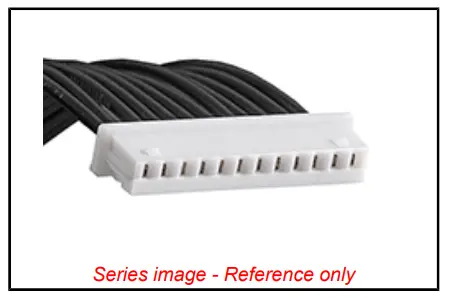

| Description: | PicoBlade Female-to-PicoBlade Female Off-the-Shelf (OTS) Cable Assembly, Single Row, 450.00mm Length, 12 Circuits, Natural |
Documents:
| 3D Model Drawing (PDF) 3D Model (PDF) | Datasheet (PDF) RoHS Certificate of Compliance (PDF) |
General
| Product Family | Cable Assemblies |
| Series | 15134 |
| Application | Signal, Wire-to-Board, Wire-to-Wire |
| Assembly Configuration | Dual Ended Connectors |
| Connector to Connector | PicoBlade-to-PicoBlade |
| Overmolded | No |
| Overview | PicoBlade Connector System |
| Product Name | PicoBlade |
| Type | Discrete Wire Assembly |
| UPC | 191128412391 |
Physical
| Cable Length Circuits (Loaded) Color – Resin Gender Lock to Mating Part Material – Metal Material – Plating Mating Material – Plating Termination Material – Resin Net Weight Number of Rows Packaging Type Pitch – Mating Interface Plating min – Mating Plating min – Termination Single Ended Termination Interface: Style Wire Insulation Diameter Wire Size AWG Wire/Cable Type | 450.00mm 12 Natural Female-Female Yes Phosphor Bronze Tin Tin Polyester 9.200/g 1 Bag 1.25mm 0.889µm 0.914µm No Crimp or Compression 0.90mm 28 UL 1061 |
Electrical
| Current – Maximum per Contact | 1.0A |
| Voltage – Maximum | 125V |
| Material Info | |
| Reference – Drawing Numbers | |
| Sales Drawing | 2012343241-000 |
EU ELV
Not Relevant
EU RoHS
Compliant
China RoHS
China RoHS
REACH SVHC
Not Contained Per D(2020)9139-DC (19 Jan 2021)
Halogen-Free
Status
Not Low-Halogen
For more information, please visit Contact US
| China ROHS | Green Image |
| ELV | Not Relevant |
| RoHS Phthalates | Not Contained |
Search Parts in this Series
15134 Series
Mates With
PicoBlade Header 53261 , 53047 , 53398 , 53048 . PicoBlade Plug Housing 51047
