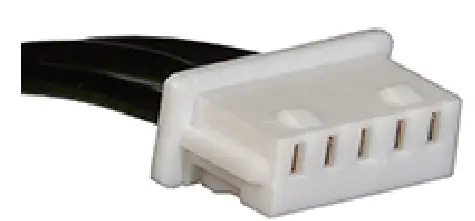

Series image – Reference only

Contents hide

1 0151340502 Cable Assembly

2 General

3 Physical

4 Electrical

5 Documents / Resources

5.1 References

6 Related Posts

0151340502 Cable Assembly

Part Number: 0151340502
Status: Active
Overview: PicoBlade Connector System
Description: PicoBlade Female-to-PicoBlade Female Off-the-Shelf (OTS) Cable Assembly, Single Row, 150.00mm Length, 5 Circuits, Natural

Documents:
3D Model Datasheet (PDF)
Drawing (PDF) RoHS Certificate of Compliance (PDF)
3D Model (PDF)

General

Product Family	Cable Assemblies
Series	15134
Application	Signal, Wire-to-Board, Wire-to-Wire
Assembly Configuration	Dual Ended Connectors
Connector to Connector	PicoBlade-to-PicoBlade
Overmolded	No
Overview	PicoBlade Connector System
Product Name	PicoBlade
Type	Discrete Wire Assembly
UPC	8.89E+11

Physical

Cable Length	150.00mm
Circuits (Loaded)	5
Color – Resin	Natural
Gender	Female-Female
Lock to Mating Part	Yes
Material – Metal	Phosphor Bronze
Material – Plating Mating	Tin
Material – Plating Termination	Tin
Material – Resin	Polyester
Net Weight	1.400/g
Number of Rows	1
Packaging Type	Bag
Pitch – Mating Interface	1.25mm
Plating min – Mating	0.889µm
Plating min – Termination	0.914µm
Single Ended	No
Termination Interface: Style	Crimp or Compression
Wire Insulation Diameter	0.90mm
Wire Size AWG	28
Wire/Cable Type	UL 1061

Electrical

Current – Maximum per Contact	1.0A
Voltage – Maximum	125V

Material Info

Sales Drawing

2012341357-000

EU ELV
Not Relevant
EU RoHS China RoHS
Compliant
REACH SVHC
Not Contained Per D(2020)9139-DC (19 Jan 2021)
Halogen-Free Status
Not Low-Halogen
