Molex 0039296088 Header And Wire Housing Instructions

molex 0039296088 Header and Wire Housing Instructions

This document was generated on 08/27/2021
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number: 0039296088
Status: Active
Overview: Mini-Fit Family Power Connectors

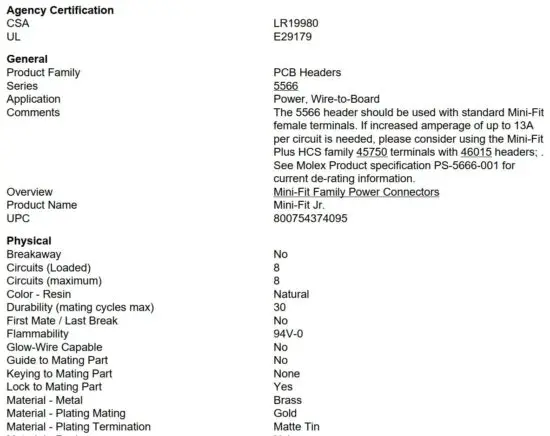

Description: Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 8 Circuits, without Snap-in Plastic Peg PCB Lock, Gold, Natural

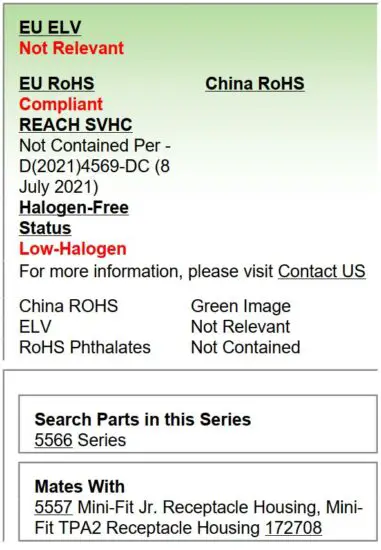

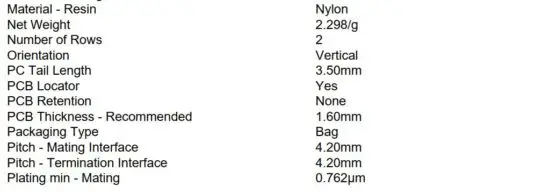

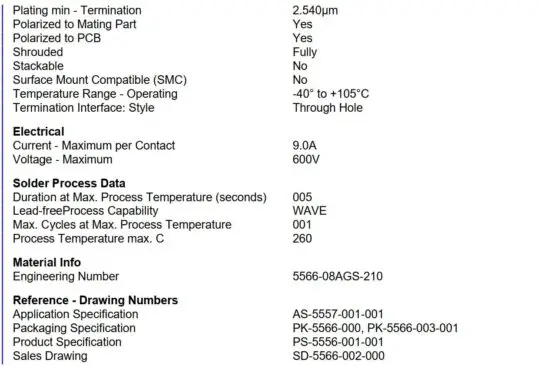

Documents:
3D Model Application Specification AS-5557-001-001 (PDF)
Drawing (PDF) Packaging Specification PK-5566-000 (PDF)
3D Model (PDF) Packaging Specification PK-5566-003-001 (PDF)
Product Specification PS-5556-001-001 (PDF) RoHS Certificate of Compliance (PDF)
