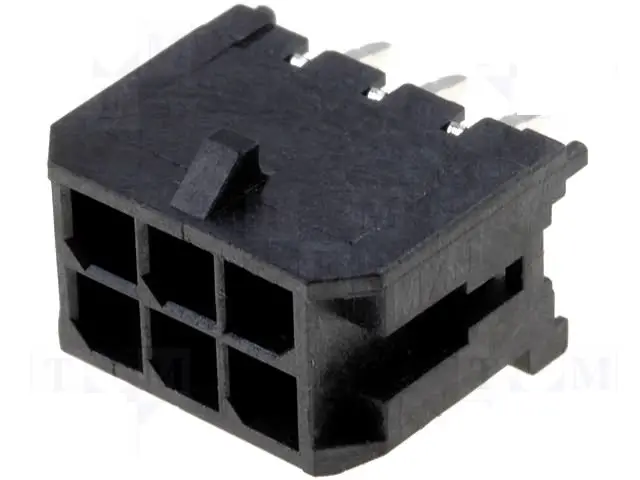

molex 0430450612 Headers and Wire Housings
Description
Part Number: 0430450612
Status: Active
Overview: Micro-Fit Connector System
Description: Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 6 Circuits, with PCB Polarizing Peg, Tin, Glow-Wire Capable, Black
EU ELV Not Relevant
EU RoHS China RoHS Compliant
REACH SVHC
Not Contained Per – D(2021)4569-DC (8 July 2021) Halogen-Free Status
Low-Halogen
For more information, please visit Contact US
- China ROHS Green Image
- ELV Not Relevant
- RoHS Phthalates Not Contained
Search Parts in this Series
43045 Series
Mates With
Micro-Fit 3.0 Receptacle Housing 43025 Micro-Fit 3.0 TPA Receptacle Housing 172952 . Micro-Fit 3.0 Cable Assembly 245132 , 214755 , 214756 . Micro-Fit TPA Cable Assembly 45132
Documents:
- Drawing (PDF)
- Test Summary 430450004-TS-000 (PDF)
- 3D Model
- Test Summary TS-43045-001-001 (PDF)
- 3D Model (PDF)
- Test Summary TS-46235-001-001 (PDF)
- Product Specification 430450001-PS-KO-000 (PDF)
- Datasheet (PDF)
- Product Specification 430450001-PS-SP-000 (PDF)
- Symbol Footprint Data SYM-43045-0612-001 (PDF)
- Product Specification PS-43045-001 (PDF)
- Symbol Footprint Data SYM-43045-061X-001 (PDF)
- Packaging Specification PK-70873-0314-001 (PDF)
- RoHS Certificate of Compliance (PDF)
Agency Certification
- CSA LR19980
- UL E29179
General
- Product Family PCB Headers
- Series 43045
- Application Power, Wire-to-Board
- Comments High Temperature|Square Pin|Offset Through Hole Mounting|Solder Type<P><P>This Molex product is manufactured from material that has the following ratings, tested by independent agencies:. a) A Glow Wire Ignition Temperature (GWIT) of at least 775 deg C per IEC 60695-2-13.. b) A Glow Wire Flammability Index (GWFI) above 850 deg C per IEC 60695-2-12.and hence complies with the requirements set out in the International Standard IEC 60335-1 5th edition – household and similar electrical appliances – safety, section 30 Resistance to heat and fire. <P><P> The customers using this product must determine its suitability for use in their particular application through testing or other acceptable means as described in end-product glow-wire flammability test standard IEC 60695-2-11 and any applicable product end-use standard(s). <P> If it is determined during the customer’s evaluation of suitability, that higher performance is required, please contact Molex for possible product options.”””””””
- Overview Micro-Fit Connector System
- Product Name Micro-Fit 3.0
- UPC 800754371193
Physical
- Breakaway No
- Circuits (Loaded) 6
- Circuits (maximum) 6
- Color – Resin Black
- Durability (mating cycles max) 30
- Flammability 94V-0
- Glow-Wire Capable Yes
- Mated Height 17.64mm
- Material – Metal Brass
- Material – Plating Mating Tin
- Material – Plating Termination Tin
- Material – Resin High Temperature Thermoplastic
- Net Weight 0.980/g
- Number of Rows 2
- Orientation Vertical
- PCB Locator Yes
- PCB Retention Yes
- PCB Thickness – Recommended 1.60mm
- Packaging Type Tray
- Pitch – Mating Interface 3.00mm
- Plating min – Mating 0.254µm
- Polarized to PCB Yes
- Shrouded Fully
- Stackable No
- Surface Mount Compatible (SMC) Yes
- Temperature Range – Operating –40° to +105°C
- Termination Interface: Style Through Hole – Kinked Pin
Electrical
- Current – Maximum per Contact 8.5A
- Voltage – Maximum 600V
Solder Process Data
- Duration at Max. Process Temperature (seconds) 030
- Lead-freeProcess Capability SMC&WAVE
- Max. Cycles at Max. Process Temperature 003
- Process Temperature max. C 260
Material Info
Reference – Drawing Numbers
- Packaging Specification PK-70873-0314-001
- Product Specification 430450001-PS-KO-000, 430450001-PS-SP-000, PS-43045-001
- Sales Drawing SD-43045-005-001
- Symbol/Footprint Data SYM-43045-0612-001, SYM-43045-061X-001
- Test Summary 430450004-TS-000, TS-43045-001-001, TS-46235-001-001
This document was generated on 09/08/2021
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
