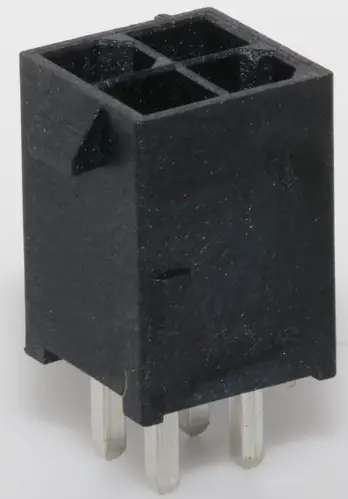

0462071104 Connector Headers and PCB Receptacles
| Part Number: Status: Overview: Description: | 0462071104 Active Mini-Fit Family Power Connectors 4.20mm Pitch, Mini-Fit Jr. Reflow Solder Capable Header, Dual Row, Vertical, 4 Circuits, 2.36mm PCB Thickness, without PCB Pegs, LCP Housing, with Tin (Sn) Over Nickel (Ni) Plating, Glow-Wire Capable, Tray |
Documents:
3D Model (PDF)
Drawing (PDF)
3D Model
Product Specification 55560004-PS-CH-000 (PDF)
Product Specification 55560004-PS-ES-000 (PDF)
Product Specification 55560004-PS-SK-000 (PDF)
Product Specification PS-45750-001-001 (PDF)
Product Specification PS-5556-004-001 (PDF)
Packaging Specification PK-46207-001-000 (PDF)
Symbol Footprint Data SYM-46207-1004-001 (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
| CSA | LR19980 |
| UL | E29179 |
General
| Product Family Series Application Comments Overview Product Name UPC | PCB Headers 46207 Board-to-Board, Power, Wire-to-Board Current for wire-to-wire applications = 13.0A max. per circuit. Current for wire-to-board applications = 9.0A max. per circuit Mini-Fit Family Power Connectors Mini-Fit Jr. 883906250898 |
Physical
| Breakaway Circuits (Loaded) Circuits (maximum) Color – Resin Durability (mating cycles max) First Mate / Last Break Flammability Glow-Wire Capable Guide to Mating Part Lock to Mating Part Material – Metal Material – Plating Mating Material – Plating Termination Material – Resin Net Weight Number of Rows Orientation PC Tail Length PCB Locator PCB Retention PCB Thickness – Recommended Packaging Type Pitch – Mating Interface Pitch – Termination Interface Polarized to Mating Part Polarized to PCB Shrouded Stackable Surface Mount Compatible (SMC) Temperature Range – Operating Termination Interface: Style | No 4 4 Black 100 No 94V-0 Yes No Yes Brass Matte Tin Matte Tin High Temperature Thermoplastic 1.615/g 2 Vertical 4.46mm Yes Yes 2.36mm Tray 4.20mm 4.20mm Yes Yes Fully No Yes -40° to +105°C Through Hole |
Electrical
| Current – Maximum per Contact | 13.0A |
| Voltage – Maximum | 600V AC (RMS)/DC |
Solder Process Data
| Duration at Max. Process Temperature (seconds) | 30 |
| Lead-freeProcess Capability | SMC&WAVE |
| Max. Cycles at Max. Process Temperature | 3-Jan |
| Process Temperature max. C | 21-Sep |
Material Info
Reference – Drawing Numbers
| Packaging Specification Product Specification Sales Drawing Symbol/Footprint Data | PK-46207-001-000 55560004-PS-CH-000, 55560004-PS-ES-000, 55560004-PS-SK-000, PS-45750-001-001, PS-5556-004-001 SD-46207-002-000 SYM-46207-1004-001 |
EU ELV
Not Relevant
EU RoHS… China RoHS
Compliant
REACH SVHC
Not Contained Per D(2021)4569-DC(8 July 2021)
Halogen-Free
Status
Low-Halogen
For more information, please visit Contact US
| China ROHS | Green Image |
| ELV | Not Relevant |
| RoHS Phthalates | Not Contained |
Search Parts in this Series
46207 Series
Mates With
5557 Mini Fit Jr. Receptacle, 172708 Mini-Fit
TPA2 Receptacle Housing
