Molex 0436500301 Right Angle 3 Position Connector Header Through Hole User Guide

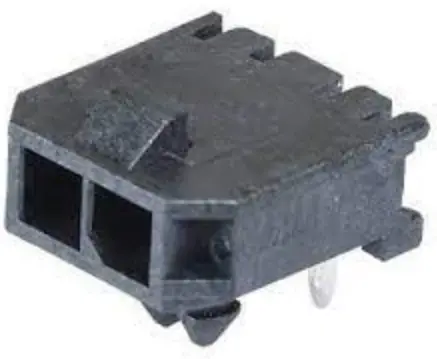

molex 0436500301 Right Angle 3 Position Connector Header Through Hole

Documents

• 3D Model
• 3D Model (PDF)
• Drawing (PDF)
• Product Specification 436500001-PS-JA-000 (PDF)
• .Product Specification 436500001-PS-KO-000 (PDF)
• Product Specification 436500001-PS-SP-000 (PDF) Product
• Specification PS-43650-001 (PDF)
• Packaging Specification PK-70873-0321-001 (PDF)
• Test Summary 430450006-TS-000 (PDF)
• Test Summary TS-43045-001-001 (PDF)
• Test Summary TS-43045-002-001 (PDF)
• Test Summary TS-46235-001-001 (PDF) Datasheet (PDF)
• Symbol Footprint Data SYM-43650-0300-001 (PDF)
• RoHS Certificate of Compliance (PDF)

Agency Certification

• CSA LR19980
• UL E29179

General

• Product Family PCB Headers
• Series 43650
• Application Power, Wire-to-Board

Comments
High Temperature|Square Pin|Solder Type<P><P>This Molex product is manufactured from a material that has the following ratings, tested by independent agencies:. a) A Glow Wire Ignition Temperature (GWIT) of at least 775 deg C per IEC 60695-2-13.. b) A Glow Wire Flammability Index (GWFI) above 850 deg C per IEC 60695-2-12.and hence complies with the requirements set out in the International Standard IEC 60335-1 5th edition – household and similar electrical appliances – safety, section 30 Resistance to heat and fire. <P><P> The customers using this product must determine its suitability for use in their particular application throughtesting or other acceptable means as described in end-product glow-wire flammability test standard IEC 60695-2-11 and any applicable product end-use standard(s). <P> If it is determined during the customer’s evaluation of suitability, that higher performance is required, please contact Molex for possible product options.

• Overview Micro-Fit Connector System
• Product Name Micro-Fit 3.0
• UPC 800753786844

Physical

• Breakaway No
• Circuits (Loaded) 3
• Circuits (maximum) 3
• Color – Resin Black
• Durability (mating cycles max) 30
• Flammability 94V-0
• Glow-Wire Capable Yes
• Mated Height 6.98mm
• Material – Metal Brass
• Material – Plating Mating Gold
• Material – Plating Termination Tin
• Material – Resin High-Temperature Thermoplastic
• Net Weight 0.665/g
• Number of Rows 1
• Orientation Right Angle
• PCB Locator Yes
• PCB Retention Yes
• PCB Thickness – Recommended 1.60mm
• Packaging Type Tray
• Pitch – Mating Interface 3.00mm
• Plating min – Mating 0.381μm
• Plating min – Termination 2.540μm
• Polarized to PCB Yes
• Shrouded Fully
• Stackable No
• Surface Mount Compatible (SMC) Yes
• Temperature Range – Operating -40° to +125°C
• Termination Interface: Style Through Hole

Electrical

• Current – Maximum per Contact 8.5A
• Voltage – Maximum 600V

Solder Process Data

• Duration at Max. Process Temperature (seconds) 030
• Lead-free process Capability SMC&WAVE
• Max. Cycles at Max. Process Temperature 003
• Process Temperature max. C 260

Material Info

Reference – Drawing Numbers

• Packaging Specification PK-70873-0321-001
• Product Specification 436500001-PS-JA-000, 436500001-PS-KO-000,
• 436500001-PS-SP-000, PS-43650-001
• Sales Drawing SD-43650-001-000
• Symbol/Footprint Data SYM-43650-0300-001
• Test Summary 430450006-TS-000, TS-43045-001-001,
• TS-43045-002-001, TS-46235-001-001

EU ELV

• Not Relevant
• EU RoHS China RoHS

Compliant

• REACH SVHC
• Not Contained Per –
• D(2021)4569-DC (8
• July 2021)
• Halogen-Free Status

Low-Halogen

• For more information, please visit Contact US
• China ROHS Green Image
• ELV Not Relevant
• RoHS Phthalates Not Contained

Parts

Search Parts in this Series

• 43650 Series

Mates With

Micro-Fit 3.0 Receptacle Housing 43645 <br>Micro-Fit 3.0 TPA Receptacle Housing 171850 <br> Micro-Fit 3.0 Cable Assembly 2147502031 , 2147502032 , 2147502033 , 2147512031, 2147512032, 2147512033.

PLEASE CHECK WWW.MOLEX.COM FOR THE LATEST PART INFORMATION.
